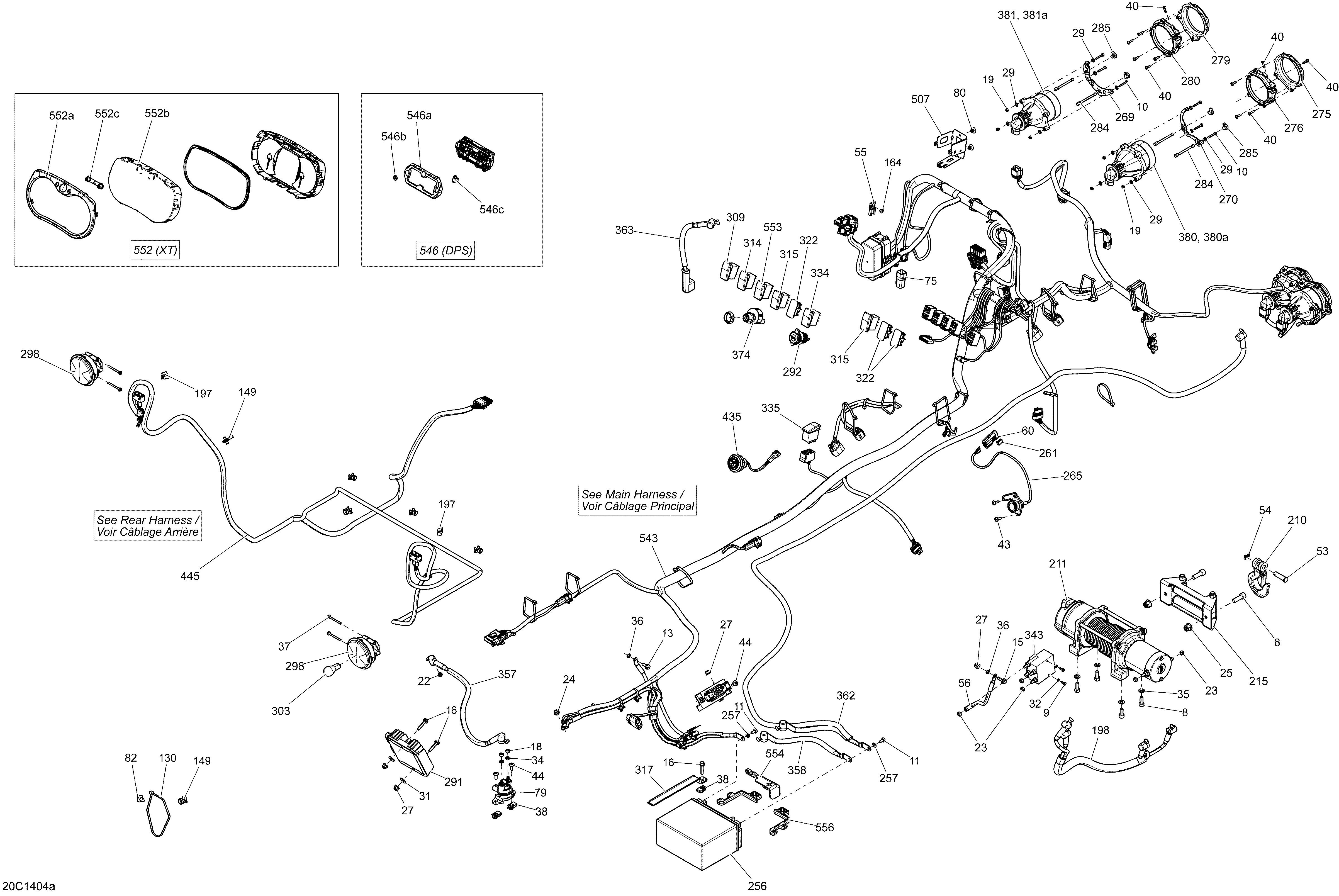

10- Electrical System _20C1404 для BRP Commander MAX 1000_DPS, XT - 2014
-
№АртикулНазвание
-
6205003044 Socket Screw M10 x 30. Model- XTSocket Screw M10 x 30. Model- XT
-
8205082044 Socket Head Screw M8 X 20. Model- XTSocket Head Screw M8 X 20. Model- XT
-
9207141044 Hex. Screw M4 X 10. Model- XTHex. Screw M4 X 10. Model- XT
-
10207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
11207161260 Hex. Cap Screw M6 X 12Hex. Cap Screw M6 X 12
-
13207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
15207662044 Hex. Flanged Screw M6 X 20. Model- XTHex. Flanged Screw M6 X 20. Model- XT
-
16207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
18232061600 Hex. Nut M6Hex. Nut M6
-
19232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
22232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
23232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
24233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
25233201414 Hex. Flanged Elastic Nut M10. Model- XTHex. Flanged Elastic Nut M10. Model- XT
-
27233261414 Hex. Flanged Elastic Nut M6. Model- XTHex. Flanged Elastic Nut M6. Model- XT
-
29234051410 Flat Washer M5Flat Washer M5
-
31234062410 Flat Washer 6 mmFlat Washer 6 mm
-
32234141601 Lock Washer 4 mm. Model- XTLock Washer 4 mm. Model- XT
-
34234161601 Lock Washer Helical M6Lock Washer Helical M6
-
35234181401 Lock Washer 8 mm. Model- XTLock Washer 8 mm. Model- XT
-
36234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
37241154540 Hex. Screw K50 X 45Hex. Screw K50 X 45
-
38250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
40250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
43250000146 Truss Head Torx Screw K50 X 16. Model- XTTruss Head Torx Screw K50 X 16. Model- XT
-
44250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
53250400021 Clevis Pin. Model- XTClevis Pin. Model- XT
-
54250400022 Cotter Pin. Model- XTCotter Pin. Model- XT
-
55270000141 ClipClip
-
56710002214 Negative Cable. Model- XTNegative Cable. Model- XT
-
60278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
75278002704 Diagnostic ConnectorDiagnostic Connector
-
79278003012 Starter RelayStarter Relay
-
80293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
82293730018 Mount DartMount Dart
-
82293730040 Mount DartMount Dart
-
130293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
130414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
149293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
164390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
197414227300 ClipClip
-
198710002216 Electrical Winch Cable. Model- XTElectrical Winch Cable. Model- XT
-
210705002329 Hook. Model- XTHook. Model- XT
-
211705003944 Winch. Model- XTWinch. Model- XT
-
215715001119 Winch Cable Guide. Model- XTWinch Cable Guide. Model- XT
-
256410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
257234062410 Flat Washer 6 mmFlat Washer 6 mm
-
261710000992 ClipClip
-
265710001023 Winch Connector. Model- XTWinch Connector. Model- XT
-
269710001036 LH High Light SupportLH High Light Support
-
269710001115 RH High Light SupportRH High Light Support
-
270710001037 LH Low Light SupportLH Low Light Support
-
270710001094 RH Low Light SupportRH Low Light Support
-
275710001081 RH Low Front HousingRH Low Front Housing
-
275710001083 LH Low Front HousingLH Low Front Housing
-
276710001082 RH Low Rear HousingRH Low Rear Housing
-
276710001084 LH Low Rear HousingLH Low Rear Housing
-
279710001085 RH High Front HousingRH High Front Housing
-
279710001087 LH High Front HousingLH High Front Housing
-
280710001086 RH High Rear HousingRH High Rear Housing
-
280710001088 LH High Rear HousingLH High Rear Housing
-
284710001147 Setting ScrewSetting Screw
-
285710001147 Setting ScrewSetting Screw
-
291710001191 Voltage RegulatorVoltage Regulator
-
292710001248 Outlet DCOutlet DC
-
298710001645 Tail Light. SERVTail Light. SERV
-
303520000758 Bulb. SERVBulb. SERV
-
309710001725 Hi/Low SwitchHi/Low Switch
-
314710001737 SwitchSwitch
-
315710001781 Switch DPSSwitch DPS
-
317710001916 Battery HolderBattery Holder
-
322710001999 Plug CarlingPlug Carling
-
334710002052 Switch. Model- XTSwitch. Model- XT
-
335710002053 Switch, Over RideSwitch, Over Ride
-
343710003922 Winch Solenoid. Model- XTWinch Solenoid. Model- XT
-
357710003340 Positive CablePositive Cable
-
358710003440 Positive Cable. Model-DPSPositive Cable. Model-DPS
-
362710003441 Pos/Neg Winch Cable. Model-XTPos/Neg Winch Cable. Model-XT
-
363710002148 Positive Cable. Model-DPSPositive Cable. Model-DPS
-
374710002327 Ignition SwitchIgnition Switch
-
380710002524 Low Beam Ass'y. SERVLow Beam Ass'y. SERV
-
380a415129249 Halogen Bulb. SERVHalogen Bulb. SERV
-
381710002525 High Beam Ass'y. SERVHigh Beam Ass'y. SERV
-
381a415129249 Halogen Bulb. SERVHalogen Bulb. SERV
-
435710002594 Engine START ButtonEngine START Button
-
445710003219 Rear HarnessRear Harness
-
507710003335 Fuse HolderFuse Holder
-
543710003343 Main Harness Ass'y. SERVMain Harness Ass'y. SERV
-
546710003851 Speedometer. Model-DPS. SERVSpeedometer. Model-DPS. SERV
-
546a710001183 Trim Ring Ass'y. Model-DPS. SERVTrim Ring Ass'y. Model-DPS. SERV
-
546b704901270 BRP Logo, 13 mm. Model-DPS. SERVBRP Logo, 13 mm. Model-DPS. SERV
-
546c715900265 Button. Model-DPS. SERVButton. Model-DPS. SERV
-
552710003857 Speedometer. Model-XT. SERVSpeedometer. Model-XT. SERV
-
552a415129348 Gauge Ring. Model-XT. SERVGauge Ring. Model-XT. SERV
-
552b415129349 Lens. Model-XT. SERVLens. Model-XT. SERV
-
552c415129355 Speedometer Button. Model-XT. SERVSpeedometer Button. Model-XT. SERV
-
553710003541 Switch PPS SportSwitch PPS Sport
-
554710003582 CapCap
-
556710003602 Battery Rubber PadBattery Rubber Pad
