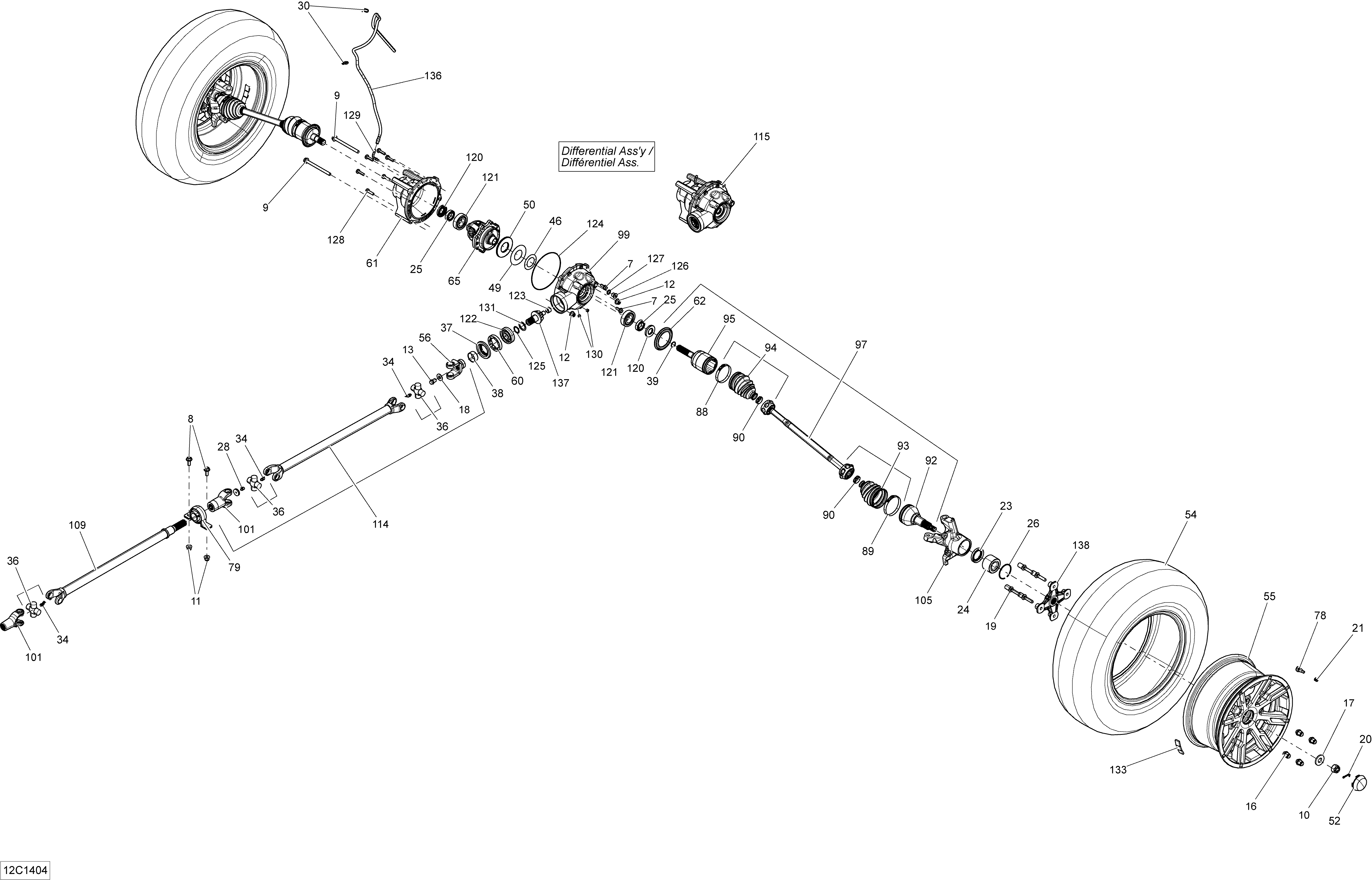

07- Drive System, Front _12C1404 для BRP Commander MAX 1000_DPS, XT - 2014
-
№АртикулНазвание
-
7207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
8207602544 Hex. Flanged Screw M10 X 25. Model-COM-MAXHex. Flanged Screw M10 X 25. Model-COM-MAX
-
9230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
10250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
11233201414 Hex. Flanged Elastic Nut M10. Model-COM-MAXHex. Flanged Elastic Nut M10. Model-COM-MAX
-
12233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
13250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
16250100082 Chrome Wheel Nut M10 X 1.25. Model-DPSChrome Wheel Nut M10 X 1.25. Model-DPS
-
16250100100 Black Wheel Nut M10 X 1.25. Model-XT CamoBlack Wheel Nut M10 X 1.25. Model-XT Camo
-
16250100082 Chrome Wheel Nut M10 X 1.25. Model-XT Except CamoChrome Wheel Nut M10 X 1.25. Model-XT Except Camo
-
17250200049 Spring WasherSpring Washer
-
18250200102 Flat Washer M12Flat Washer M12
-
19250300051 Wheel Stud. Model-COM-MAXWheel Stud. Model-COM-MAX
-
20250400036 Cotter PinCotter Pin
-
21293000110 Valve CapValve Cap
-
23293250246 O-RingO-Ring
-
24293350040 Cone BearingCone Bearing
-
25293350044 Ball BearingBall Bearing
-
26293370019 CirclipCirclip
-
28703500815 Grease Fitting. Model-COM-MAXGrease Fitting. Model-COM-MAX
-
30293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
34703500813 Grease FittingGrease Fitting
-
36703500814 Unit Pack Kit. Model-COM-MAXUnit Pack Kit. Model-COM-MAX
-
37705401481 Oil SealOil Seal
-
38705400036 Wear RingWear Ring
-
39705401349 Circlip JointCirclip Joint
-
49703500050 Differential Shim Spool KitDifferential Shim Spool Kit
-
50703500288 Differential Shim Spool KitDifferential Shim Spool Kit
-
52705400520 Wheel Cap. Model-DPSWheel Cap. Model-DPS
-
52705400504 Wheel Cap. Model-XT CamoWheel Cap. Model-XT Camo
-
52705400520 Wheel Cap. Model-XT Except CamoWheel Cap. Model-XT Except Camo
-
54705400961 Front Tire. Model-XT EuropeFront Tire. Model-XT Europe
-
54705401377 Front TireFront Tire
-
55705401378 Front Rim. Model-DPSFront Rim. Model-DPS
-
55705401378 Front Rim. Model-XTFront Rim. Model-XT
-
55705401379 Front Rim. Model-XT CamoFront Rim. Model-XT Camo
-
56715900116 Fixed Yoke JointFixed Yoke Joint
-
60705400661 NutNut
-
61705400762 Front CoverFront Cover
-
65705400822 DifferentialDifferential
-
78705400193 Rim Valve With CapRim Valve With Cap
-
79705401498 Bearing. Model-COM-MAXBearing. Model-COM-MAX
-
88715900260 Oetiker Clamp, LargeOetiker Clamp, Large
-
89715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
90715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
92705401353 CV JointCV Joint
-
92705401353 CV JointCV Joint
-
93705401354 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
94705401355 Boot Kit, Differential SideBoot Kit, Differential Side
-
94705401357 RH Plunging JointRH Plunging Joint
-
94705401359 LH Plunging JointLH Plunging Joint
-
97705401105 LH Half ShaftLH Half Shaft
-
97705401106 RH Half ShaftRH Half Shaft
-
99705401136 Front Gear CoverFront Gear Cover
-
101715900231 Yoke Joint. Model-COM-MAX, Cover 715900483Yoke Joint. Model-COM-MAX, Cover 715900483
-
105705401548 LH Front KnuckleLH Front Knuckle
-
105705401549 RH Front KnuckleRH Front Knuckle
-
109705401238 Axle Drive Ass'y. Model-COM-MAXAxle Drive Ass'y. Model-COM-MAX
-
114705401239 Axle Drive Ass'yAxle Drive Ass'y
-
115705401488 Front Differential Ass'yFront Differential Ass'y
-
120705401486 Oil SealOil Seal
-
121705500259 Ball BearingBall Bearing
-
122705500260 Ball BearingBall Bearing
-
123705500261 Needle BearingNeedle Bearing
-
124705500265 SealSeal
-
125705500267 O-RingO-Ring
-
126705500504 Fill Level PlugFill Level Plug
-
127705500506 Copper WasherCopper Washer
-
128705500892 ScrewScrew
-
129705500893 Vent ValveVent Valve
-
130705500894 Drain PlugDrain Plug
-
131703500049 Pinion Shim KitPinion Shim Kit
-
133705501385 1/2 OZ Weight1/2 OZ Weight
-
136415080200 Hose, PolyurethaneHose, Polyurethane
-
137705501588 10 Teeth Pinion10 Teeth Pinion
-
138705501900 Wheel Hub. Model-COM-MAXWheel Hub. Model-COM-MAX
