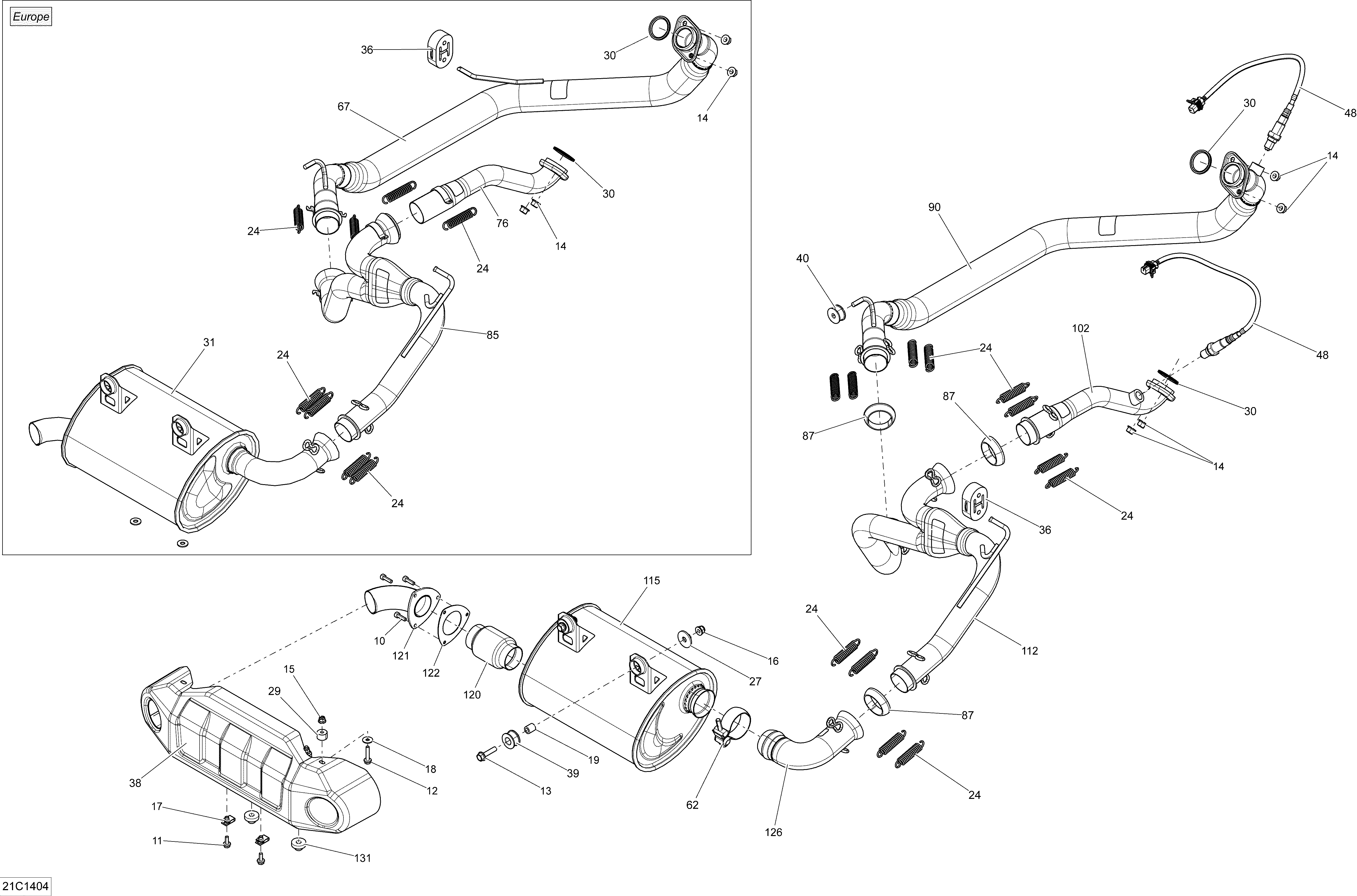

01- Exhaust System _21C1404 для BRP Commander MAX 1000_DPS, XT - 2014

  • №
    Артикул
    Название
  • 10
    205062060 Socket Head Screw M6 X 20
    Socket Head Screw M6 X 20
  • 11
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 12
    207663034 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 13
    207683544 Hex. Flanged Screw M8 X 35
    Hex. Flanged Screw M8 X 35
  • 14
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 15
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 16
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 17
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 18
    250200082 Flat Washer
    Flat Washer
  • 19
    293900106 Bushing
    Bushing
  • 24
    415107100 Spring
    Spring
  • 27
    503032900 Washer
    Washer
  • 29
    707000882 Bushing
    Bushing
  • 30
    707600317 Gasket
    Gasket
  • 31
    707600753 Muffler Ass'y. Model-EUROPE
    Muffler Ass'y. Model-EUROPE
  • 36
    707600638 Rubber Bumper. Model-EUROPE
    Rubber Bumper. Model-EUROPE
  • 38
    707600675 Deflector
    Deflector
  • 39
    707600701 Anti-Vibration Rubber
    Anti-Vibration Rubber
  • 40
    707600702 Anti-Vibration Rubber
    Anti-Vibration Rubber
  • 48
    707600872 Oxygen Sensor. Except Model-EUROPE
    Oxygen Sensor. Except Model-EUROPE
  • 62
    707600980 Exhaust Clamp. Except Model-EUROPE
    Exhaust Clamp. Except Model-EUROPE
  • 67
    707601013 Front Head Pipe. Model-1000 EUROPE
    Front Head Pipe. Model-1000 EUROPE
  • 76
    707601016 Rear Head Pipe. Model-1000 EUROPE
    Rear Head Pipe. Model-1000 EUROPE
  • 85
    707601020 Link Head Pipe. Model-EUROPE
    Link Head Pipe. Model-EUROPE
  • 87
    707601033 Exhaust Gasket
    Exhaust Gasket
  • 90
    707601204 Front Head Pipe. 1000 Except EUROPE
    Front Head Pipe. 1000 Except EUROPE
  • 102
    707601206 Rear Head Pipe. 1000 Except EUROPE
    Rear Head Pipe. 1000 Except EUROPE
  • 112
    707601207 Link Head Pipe. Except Model-EUROPE
    Link Head Pipe. Except Model-EUROPE
  • 115
    707601442 Muffler Ass'y. Except Model-EUROPE
    Muffler Ass'y. Except Model-EUROPE
  • 120
    715900089 Spark Arrestor
    Spark Arrestor
  • 121
    715900091 Muffler Outlet End Piece
    Muffler Outlet End Piece
  • 122
    715900090 Gasket
    Gasket
  • 126
    707601327 Link Head Pipe. Except Model-EUROPE
    Link Head Pipe. Except Model-EUROPE
  • 131
    709200285 Grommet
    Grommet
