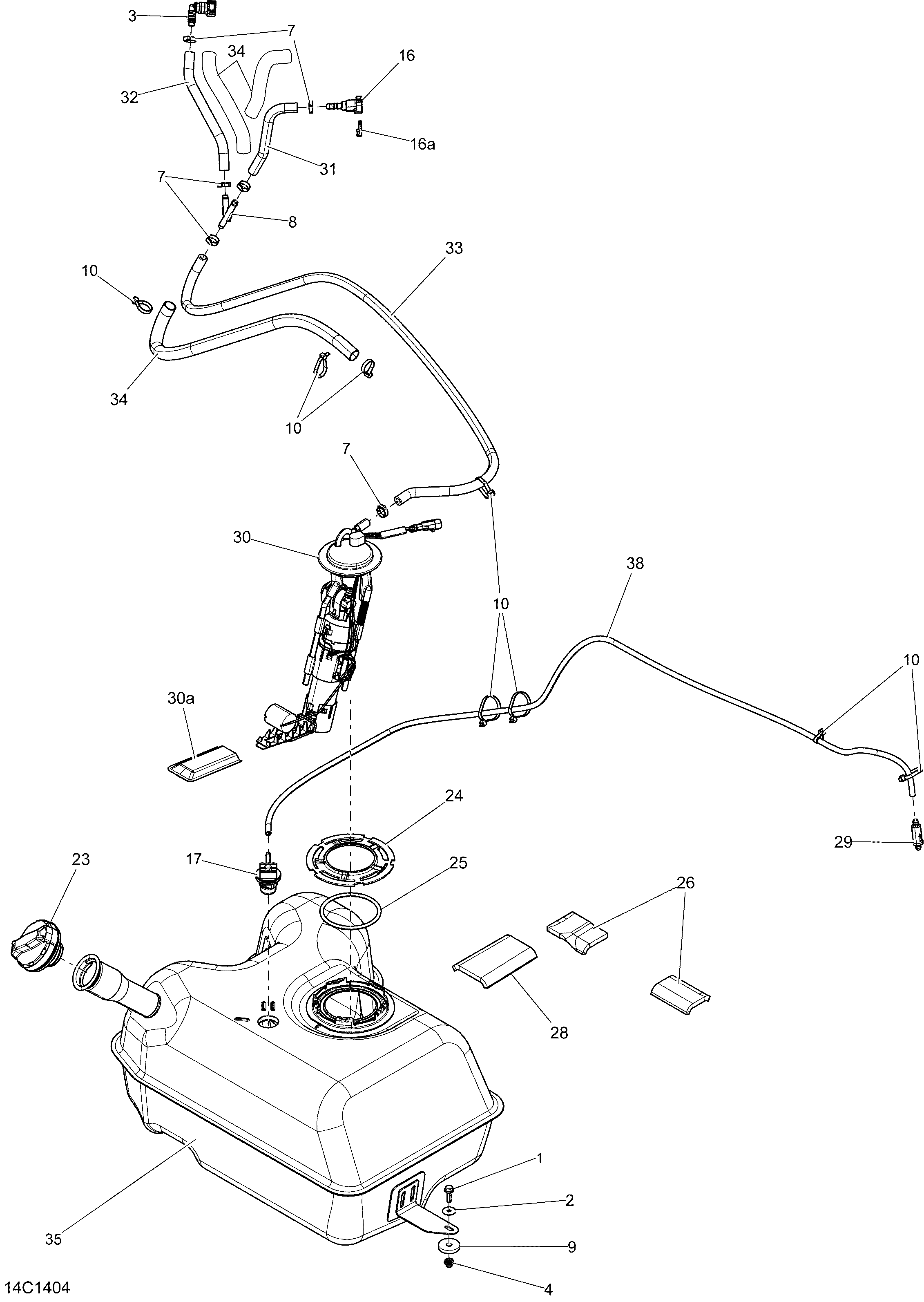

02- Fuel System _14C1404 для BRP Commander MAX 1000_DPS, XT - 2014
-
№АртикулНазвание
-
1207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
2224060201 Flat WasherFlat Washer
-
3275500700 Quick Attach 90°Quick Attach 90°
-
4293450274 InsertInsert
-
7293650047 Crimp ClampCrimp Clamp
-
8293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
9293830037 Rubber WasherRubber Washer
-
10414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
16709000125 Female Quick Fitting Ass'y. Includes 16 to 16aFemale Quick Fitting Ass'y. Includes 16 to 16a
-
16a513033135 Locking ClipLocking Clip
-
17709000127 Rollover ValveRollover Valve
-
23709000529 Fuel CapFuel Cap
-
24709000274 RingRing
-
25709000275 O-RingO-Ring
-
26709000288 Neoprene PadNeoprene Pad
-
28709000289 Neoprene PadNeoprene Pad
-
29709000330 FilterFilter
-
29709000389 Fuel Pre-Filter KitFuel Pre-Filter Kit
-
30709000362 Fuel Pump. Includes 30 to 30aFuel Pump. Includes 30 to 30a
-
30a709000389 Fuel Pre-Filter KitFuel Pre-Filter Kit
-
31709000516 Fuel LineFuel Line
-
32709000516 Fuel LineFuel Line
-
33709000516 Fuel LineFuel Line
-
34415080000 Tubing 16 mmTubing 16 mm
-
35709000467 Fuel TankFuel Tank
-
38415080200 Hose, PolyurethaneHose, Polyurethane
