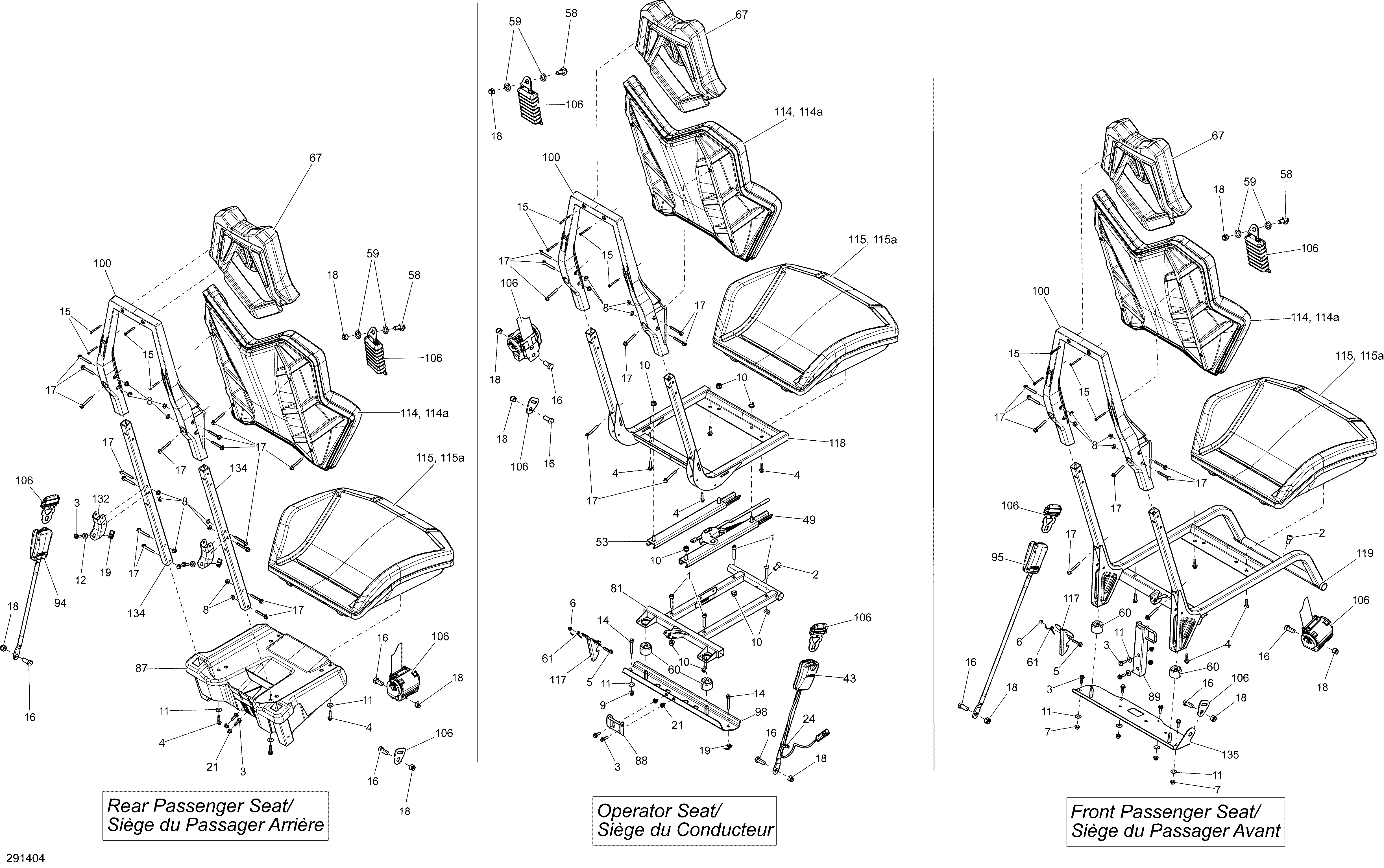

09- Seat _29C1404 для BRP Commander MAX 1000_DPS, XT - 2014
-
№АртикулНазвание
-
1205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
2205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
3207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
4207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
5207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
6232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
7233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
8233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11234062670 Flat WasherFlat Washer
-
12234281474 Conical Spring Washer M8Conical Spring Washer M8
-
14250000213 Hex. Flanged Screw M6 X 1.0 X 45Hex. Flanged Screw M6 X 1.0 X 45
-
15250000490 Hex. Washer Head Screw PT K50 X 40Hex. Washer Head Screw PT K50 X 40
-
16250000521 Hex. Cap Screw 7/16''X 1''Hex. Cap Screw 7/16''X 1''
-
17250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
18250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
21293450274 InsertInsert
-
24293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
43708000987 Driver Buckle SideDriver Buckle Side
-
49708000846 RH RailRH Rail
-
53708000848 LH RailLH Rail
-
58708000890 Safety Belt ScrewSafety Belt Screw
-
59708000891 Position WasherPosition Washer
-
60708001671 Rubber BumperRubber Bumper
-
61708000921 SpringSpring
-
67708001074 Head RestHead Rest
-
81708001174 Seat MemberSeat Member
-
87708001198 Seat SupportSeat Support
-
88708001212 AnchorAnchor
-
89708001213 AnchorAnchor
-
94708001205 Safety Seat BuckleSafety Seat Buckle
-
95708001206 Safety Seat BuckleSafety Seat Buckle
-
98708001214 Seat SupportSeat Support
-
100708001245 Seat SupportSeat Support
-
106708001302 Safety BeltSafety Belt
-
114708001316 Backrest Ass'yBackrest Ass'y
-
114a708000675 Backrest CoverBackrest Cover
-
115708001318 Cushion Ass'yCushion Ass'y
-
115a708001103 Cover SeatCover Seat
-
117708001355 Seat LatchSeat Latch
-
118708001356 Operator FrameOperator Frame
-
119708001357 Seat FrameSeat Frame
-
132708001474 Rear AnchorRear Anchor
-
134708001476 Side TubeSide Tube
-
135708001538 Black Front Pass. Seat SupportBlack Front Pass. Seat Support
