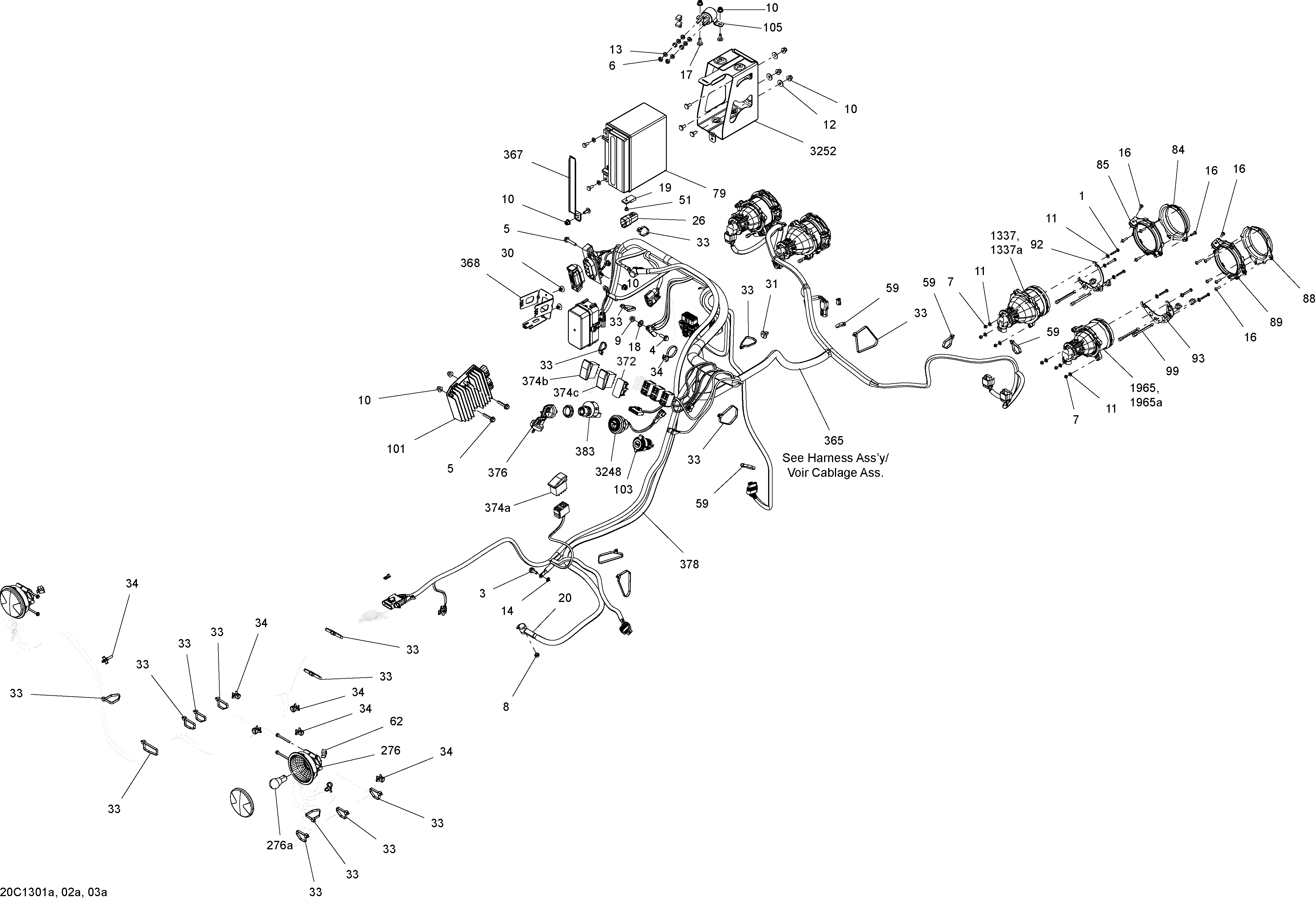

10- Electrical System All Models для BRP Commander STD, DPS, XT, 800R EFI - 2013

  • №
    Артикул
    Название
  • 1
    207142544 Hex. Screw M4 X 25
    Hex. Screw M4 X 25
  • 3
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 4
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 5
    207663044 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 5
    207663044 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 6
    232061600 Hex. Nut M6
    Hex. Nut M6
  • 7
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 8
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 9
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 10
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 11
    234051410 Flat Washer M5
    Flat Washer M5
  • 12
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 13
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 14
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 15
    241154540 Hex. Screw K50 X 45
    Hex. Screw K50 X 45
  • 16
    250000084 Phillips Screw K40 X 16
    Phillips Screw K40 X 16
  • 17
    250000223 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 18
    250200041 Lock Washer Serrated M6
    Lock Washer Serrated M6
  • 19
    270000141 Clip
    Clip
  • 26
    278002704 Diagnostic Connector
    Diagnostic Connector
  • 30
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 31
    293730040 Mount Dart
    Mount Dart
  • 33
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 34
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
  • 51
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 59
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 62
    414227300 Clip
    Clip
  • 79
    410301203 Battery Ass'y, 18 Amperes
    Battery Ass'y, 18 Amperes
  • 84
    710001083 LH Low Front Housing
    LH Low Front Housing
  • 84
    710001081 RH Low Front Housing
    RH Low Front Housing
  • 85
    710001084 LH Low Rear Housing
    LH Low Rear Housing
  • 85
    710001082 RH Low Rear Housing
    RH Low Rear Housing
  • 88
    710001087 LH High Front Housing
    LH High Front Housing
  • 88
    710001085 RH High Front Housing
    RH High Front Housing
  • 89
    710001088 LH High Rear Housing
    LH High Rear Housing
  • 89
    710001086 RH High Rear Housing
    RH High Rear Housing
  • 92
    710001037 LH Low Light Support
    LH Low Light Support
  • 92
    710001094 RH Low Light Support
    RH Low Light Support
  • 93
    710001036 LH High Light Support
    LH High Light Support
  • 93
    710001115 RH High Light Support
    RH High Light Support
  • 99
    710001147 Setting Screw
    Setting Screw
  • 101
    710001191 Voltage Regulator
    Voltage Regulator
  • 103
    710001248 Outlet DC
    Outlet DC
  • 105
    710001364 Starter Relay
    Starter Relay
  • 276
    710001645 Tail Light
    Tail Light
  • 276a
    520000758 Bulb
    Bulb
  • 365
    710002485 Harness Ass'y
    Harness Ass'y
  • 367
    710001916 Battery Holder
    Battery Holder
  • 368
    710001918 Fuse Holder
    Fuse Holder
  • 374a
    710002053 Switch, Over Ride
    Switch, Over Ride
  • 374b
    710001737 4X4 Switch
    4X4 Switch
  • 374c
    710002199 PPS Sport Switch
    PPS Sport Switch
  • 376
    710000817 Black-Electronic Key
    Black-Electronic Key
  • 376
    710002183 Grey-Electronic Key
    Grey-Electronic Key
  • 378
    710002146 Positive Cable
    Positive Cable
  • 383
    710002327 Ignition Switch
    Ignition Switch
  • 1337
    710002524 Low Beam Ass'y
    Low Beam Ass'y
  • 1337a
    415129249 Halogen Bulb
    Halogen Bulb
  • 1965
    710002525 High Beam Ass'y
    High Beam Ass'y
  • 1965a
    415129249 Halogen Bulb
    Halogen Bulb
  • 3248
    710002594 Engine START Button
    Engine START Button
  • 3252
    710003129 Battery Support
    Battery Support
