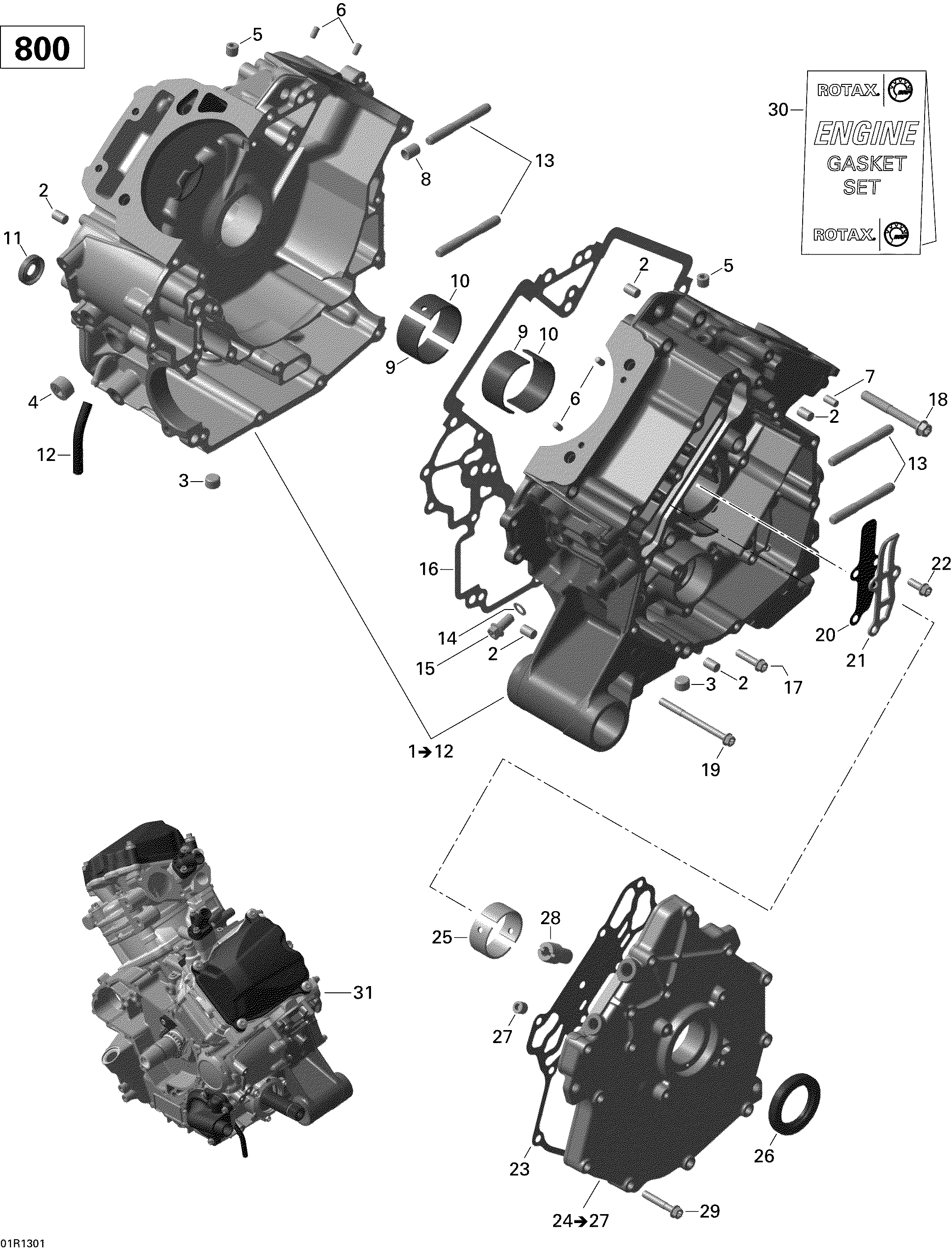

01- Crankcase для BRP Commander STD, DPS, XT, 800R EFI - 2013

‹-+›
  • №
    Артикул
    Название
  • 1
    420685253 Crankcase Ass'y. Includes 1 to 12
    Crankcase Ass'y. Includes 1 to 12
  • 2
    420632010 Center Pin 8 X 12
    Center Pin 8 X 12
  • 3
    420840657 Plug Screw M12 X 1.5
    Plug Screw M12 X 1.5
  • 4
    420240170 Plug Screw M18 X 1.5
    Plug Screw M18 X 1.5
  • 5
    420641323 Plug Screw M10 X 1
    Plug Screw M10 X 1
  • 6
    420929650 Drive Pin 5 X 10
    Drive Pin 5 X 10
  • 7
    420932780 Needle Pin
    Needle Pin
  • 8
    420929670 Dowel Pin 10 X 13
    Dowel Pin 10 X 13
  • 9
    420233960 Plain Bearing
    Plain Bearing
  • 10
    420233965 Plain Bearing
    Plain Bearing
  • 11
    420650310 Oil Seal
    Oil Seal
  • 12
    415110000 Polyurethane Hose 5.2 mm
    Polyurethane Hose 5.2 mm
  • 13
    420240814 Stud
    Stud
  • 14
    420950141 Sealing Ring
    Sealing Ring
  • 15
    420440852 Flanged Torx Screw M8 X 16
    Flanged Torx Screw M8 X 16
  • 16
    420651225 Gasket
    Gasket
  • 17
    420641238 Flanged Torx Screw M6 X 25
    Flanged Torx Screw M6 X 25
  • 18
    420440402 Flanged Torx Screw M8 X 65
    Flanged Torx Screw M8 X 65
  • 19
    420440657 Flanged Torx Screw M6 X 75
    Flanged Torx Screw M6 X 75
  • 20
    420224720 Valve Plate
    Valve Plate
  • 21
    420224725 Reed Valve Stop
    Reed Valve Stop
  • 22
    420641048 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 23
    420651211 Gasket
    Gasket
  • 24
    420612128 PTO Cover Ass'y. Includes 24 to 27
    PTO Cover Ass'y. Includes 24 to 27
  • 25
    420233997 Bearing Sleeve
    Bearing Sleeve
  • 26
    420631933 Oil Seal
    Oil Seal
  • 27
    420641323 Plug Screw M10 X 1
    Plug Screw M10 X 1
  • 28
    420256334 Hose Nipple M12 X 1.5
    Hose Nipple M12 X 1.5
  • 29
    420440274 Flanged Torx Screw M6 X 35
    Flanged Torx Screw M6 X 35
  • 30
    420684155 Gasket Kit, Engine
    Gasket Kit, Engine
  • 31
    420081020 Long Block, 800
    Long Block, 800
