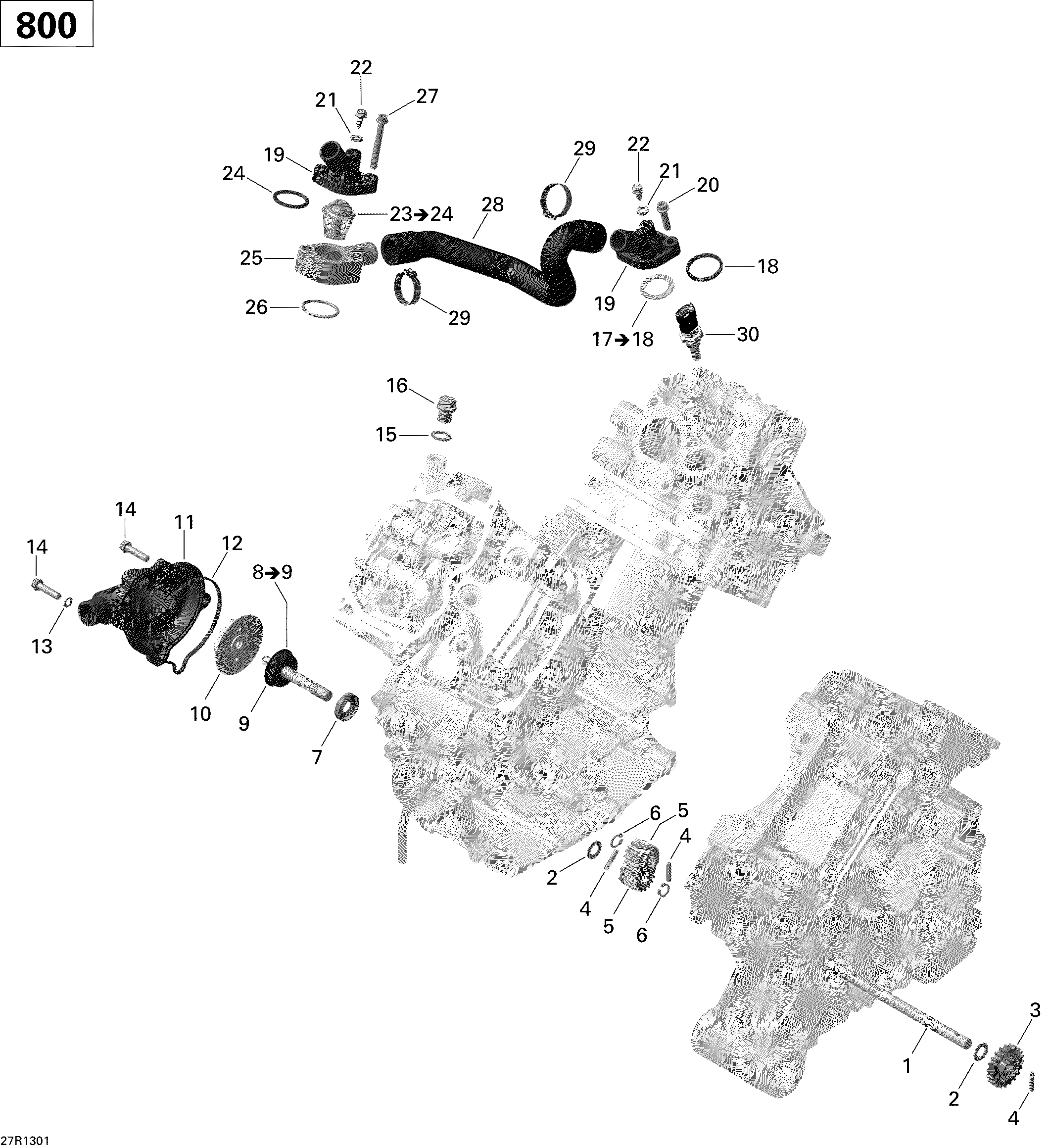

01- Engine Cooling для BRP Commander STD, DPS, XT, 800R EFI - 2013
-
№АртикулНазвание
-
1420620500 Intermediate ShaftIntermediate Shaft
-
2420827590 Thrust WasherThrust Washer
-
3420434330 Water Pump GearWater Pump Gear
-
4420232420 Needle PinNeedle Pin
-
5420234627 Pump Gear, 15 TeethPump Gear, 15 Teeth
-
6420245330 Snap RingSnap Ring
-
7420650310 Oil SealOil Seal
-
8420620175 Water Pump Shaft Ass'y. Includes 8 to 9Water Pump Shaft Ass'y. Includes 8 to 9
-
9420650370 Rotary SealRotary Seal
-
10420222505 Water ImpellerWater Impeller
-
11420222785 Water Pump HousingWater Pump Housing
-
12420651190 GasketGasket
-
13420230415 Seal WasherSeal Washer
-
14420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
15420250640 Copper WasherCopper Washer
-
16420841921 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
17420927837 Spacer Ass'y. Includes 17 to 18Spacer Ass'y. Includes 17 to 18
-
18420650300 Thermostat GasketThermostat Gasket
-
19420222690 Thermostat CoverThermostat Cover
-
20420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
21420650255 Gasket RingGasket Ring
-
22420441621 Screw M5 X 16Screw M5 X 16
-
23420222494 Thermostat 65° With Gasket Ass'y. Includes 23 to 24Thermostat 65° With Gasket Ass'y. Includes 23 to 24
-
24420650300 Thermostat GasketThermostat Gasket
-
25420222890 Connection SocketConnection Socket
-
26420631300 O-RingO-Ring
-
27420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
28420822352 Water TubeWater Tube
-
29420251573 Gear ClampGear Clamp
-
30278001016 Temperature SensorTemperature Sensor
