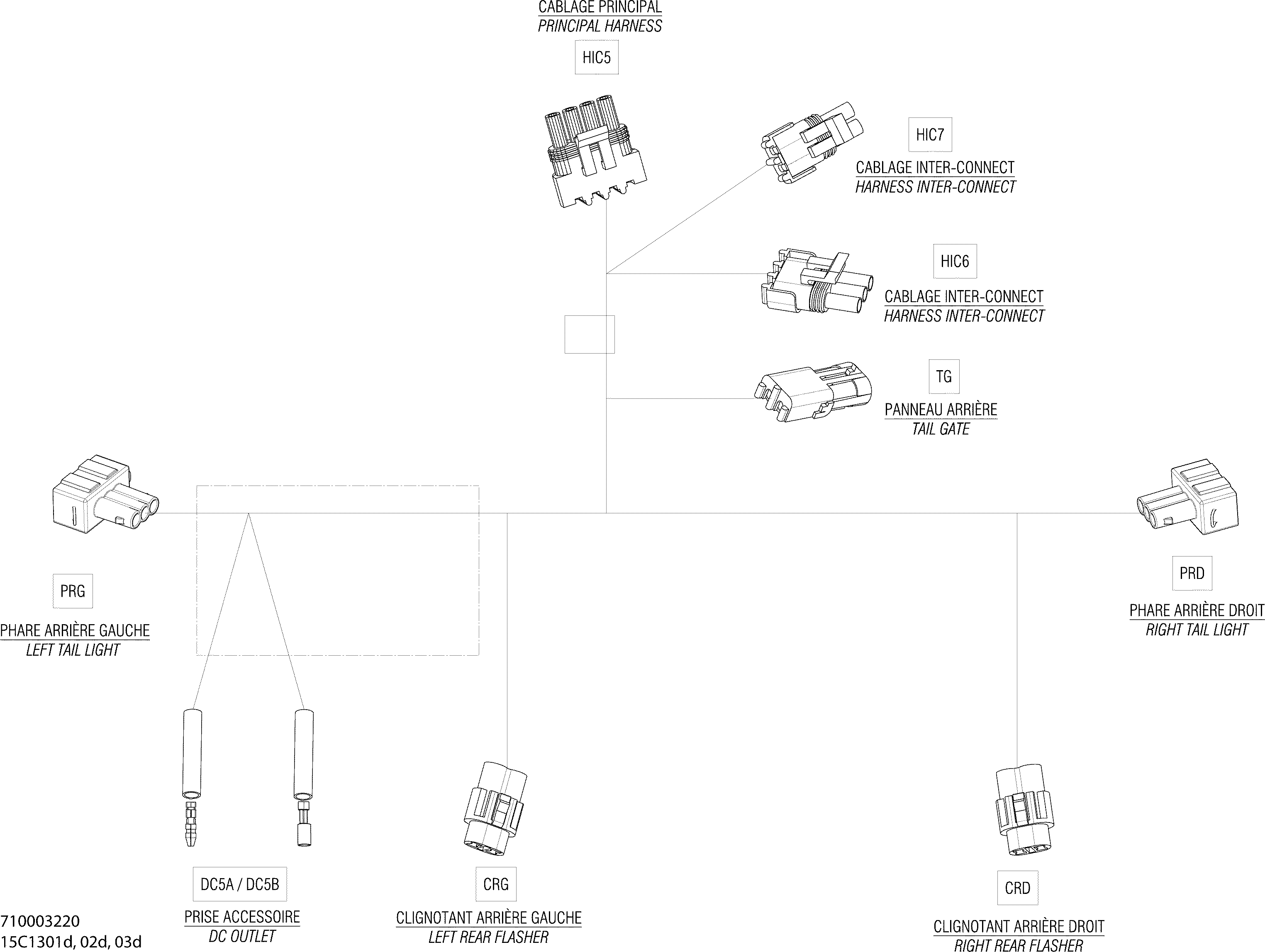

10- Electrical Harness Rear, EUROPE для BRP Commander STD, DPS, XT, 800R EFI - 2013
-
№АртикулНазвание
-
1710003220 Rear Harness. EURRear Harness. EUR
-
PRD278000998 Female Terminal. EURFemale Terminal. EUR
-
PRG278000998 Female Terminal. EURFemale Terminal. EUR
-
TG278000222 Male Terminal. EURMale Terminal. EUR
-
HIC7409007300 Female Terminal. EURFemale Terminal. EUR
-
HIC5278000223 Female Terminal. EURFemale Terminal. EUR
-
HIC6278000223 Female Terminal. EURFemale Terminal. EUR
-
TG278000217 Female Housing, 2 Circuits. EURFemale Housing, 2 Circuits. EUR
-
HIC7278000220 Male Connector, 2 Circuits. EURMale Connector, 2 Circuits. EUR
-
HIC6278000273 Male Housing, 3 Circuits. EURMale Housing, 3 Circuits. EUR
-
HIC5278000395 Male Housing, 4 Circuits. EURMale Housing, 4 Circuits. EUR
-
HIC7278000218 Wire Seal. EURWire Seal. EUR
-
CRD409012100 Female Terminal. EURFemale Terminal. EUR
-
CRG409012100 Female Terminal. EURFemale Terminal. EUR
-
CRD409012300 Seal. EURSeal. EUR
-
CRG409012300 Seal. EURSeal. EUR
-
DC5A278001008 Insulated Sheath. EURInsulated Sheath. EUR
-
DC5B278001007 Insulated Sheath. EURInsulated Sheath. EUR
-
PRD415128501 Seal. EURSeal. EUR
-
PRG415128501 Seal. EURSeal. EUR
-
HIC5278001065 Wire Seal. EURWire Seal. EUR
-
DC5B710000421 Female Terminal. EURFemale Terminal. EUR
-
DC5A278002261 Female Terminal. EURFemale Terminal. EUR
