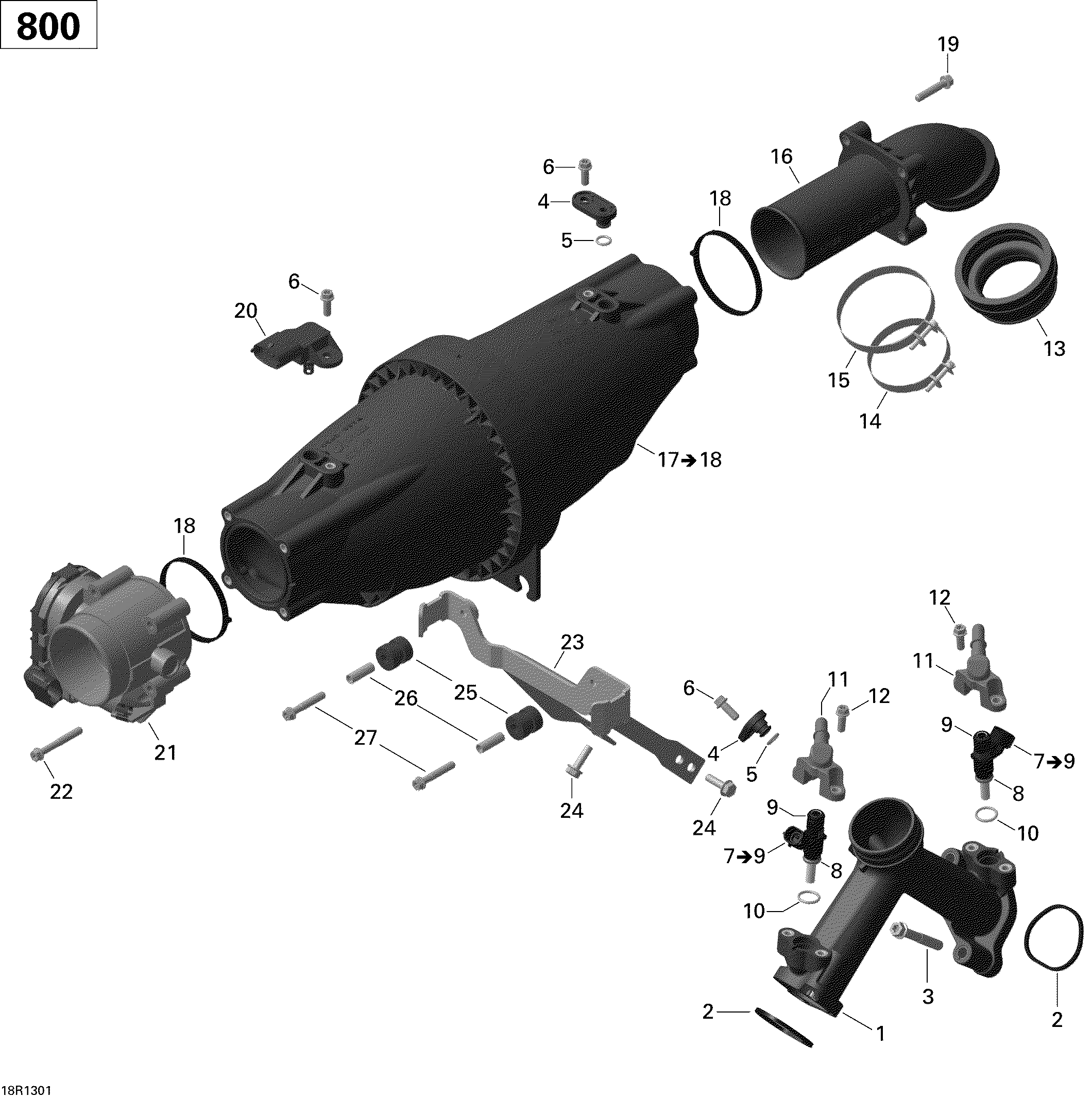

02- Air Intake Manifold And Throttle Body для BRP Commander STD, DPS, XT, 800R EFI - 2013
-
№АртикулНазвание
-
1420667581 Air Intake ManifoldAir Intake Manifold
-
2420630642 GasketGasket
-
3420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
4420460980 CoverCover
-
5420230461 O-RingO-Ring
-
6420440142 Torx Flange Screw M6 X 12Torx Flange Screw M6 X 12
-
7420874839 Injection Valve Ass'y. Includes 7 to 9Injection Valve Ass'y. Includes 7 to 9
-
8420431890 O-RingO-Ring
-
9420631220 O-RingO-Ring
-
10420631295 O-RingO-Ring
-
11420874901 Fuel RailFuel Rail
-
12420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
13420267045 Intake NeckIntake Neck
-
14420251480 ClampClamp
-
15420251209 ClampClamp
-
16420667522 Air Inlet ManifoldAir Inlet Manifold
-
17420667526 Air Inlet Manifold Ass'y. Includes 17 to 18Air Inlet Manifold Ass'y. Includes 17 to 18
-
18420431900 GasketGasket
-
19420241947 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
20707000564 Pressure And Temperature SensorPressure And Temperature Sensor
-
21420892595 Throttle BodyThrottle Body
-
22420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
23420651520 SupportSupport
-
24420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
25420660090 Rubber BracketRubber Bracket
-
26420847971 SpacerSpacer
-
27420441457 Hex. Screw M6 X 35Hex. Screw M6 X 35
