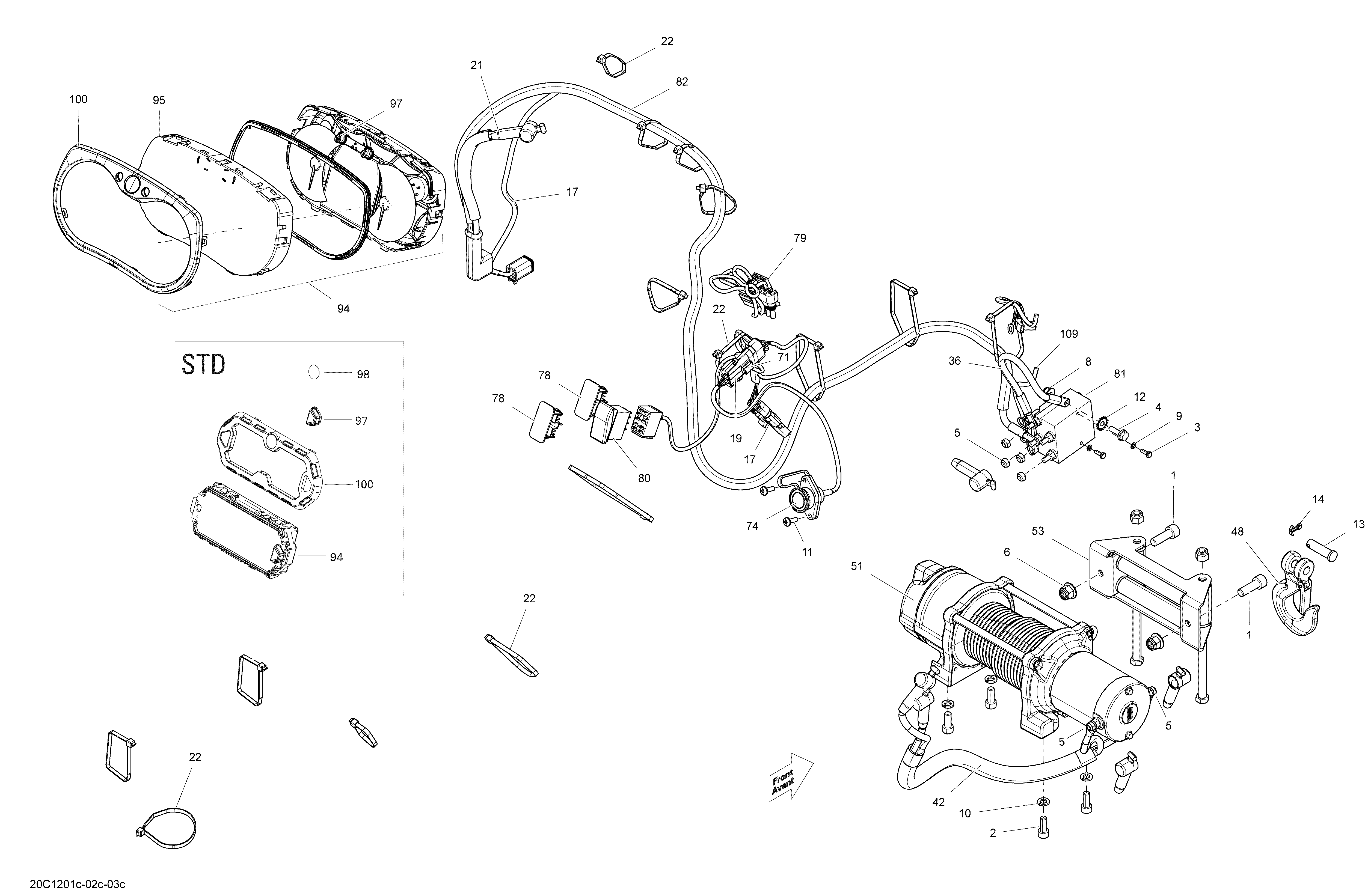

10- Electrical System STD, X, XT, LTD для BRP Commander LTD, 1000 EFI - 2012
-
№АртикулНазвание
-
1205003044 Socket Screw M10 x 30. XT, LTD ModelSocket Screw M10 x 30. XT, LTD Model
-
2205082044 Socket Head Screw M8 X 20. XT, LTD ModelSocket Head Screw M8 X 20. XT, LTD Model
-
3207141044 Hex. Screw M4 X 10. XT, LTD ModelHex. Screw M4 X 10. XT, LTD Model
-
4207662044 Hex. Flanged Screw M6 X 20. XT, LTD ModelHex. Flanged Screw M6 X 20. XT, LTD Model
-
5232561434 Elastic Stop Nut M6. XT, LTD ModelElastic Stop Nut M6. XT, LTD Model
-
6233201414 Hex. Flanged Elastic Nut M10. XT, LTD ModelHex. Flanged Elastic Nut M10. XT, LTD Model
-
8233261414 Hex. Flanged Elastic Nut M6. XT, LTD ModelHex. Flanged Elastic Nut M6. XT, LTD Model
-
9234141601 Lock Washer 4 mm. XT, LTD ModelLock Washer 4 mm. XT, LTD Model
-
10234181401 Lock Washer 8 mm. XT, LTD ModelLock Washer 8 mm. XT, LTD Model
-
11250000146 Truss Head Torx Screw K50 X 16. XT, LTD ModelTruss Head Torx Screw K50 X 16. XT, LTD Model
-
12250200041 Lock Washer Serrated M6. XT, LTD ModelLock Washer Serrated M6. XT, LTD Model
-
13250400021 Clevis Pin. XT, LTD ModelClevis Pin. XT, LTD Model
-
14250400022 Cotter Pin. XT, LTD ModelCotter Pin. XT, LTD Model
-
17710002625 Wiring Harness Ass'yWiring Harness Ass'y
-
19710001059 Connector Ass'y. XT, LTD ModelConnector Ass'y. XT, LTD Model
-
21710002148 Positive Cable. X, STD ModelPositive Cable. X, STD Model
-
22293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
36710002214 Negative Cable. XT, LTD ModelNegative Cable. XT, LTD Model
-
42710002216 Electrical Winch Cable. XT, LTD ModelElectrical Winch Cable. XT, LTD Model
-
48705002329 Hook. XT, LTD ModelHook. XT, LTD Model
-
51705003944 Winch. XT, LTD ModelWinch. XT, LTD Model
-
53705004228 Winch Cable Guide. XT, LTD ModelWinch Cable Guide. XT, LTD Model
-
71710000992 ClipClip
-
74710001023 Winch Connector. XT, LTD ModelWinch Connector. XT, LTD Model
-
78710001999 Plug Carling. XT, LTD ModelPlug Carling. XT, LTD Model
-
79710002625 Wiring Harness Ass'yWiring Harness Ass'y
-
80710002052 Winch Switch. XT, LTD ModelWinch Switch. XT, LTD Model
-
81710002112 Solenoid. XT, LTD ModelSolenoid. XT, LTD Model
-
82710002159 Positive Cable. XT, LTD ModelPositive Cable. XT, LTD Model
-
94710002697 Calibrated Speedometer. LTD ModelCalibrated Speedometer. LTD Model
-
94710002904 Calibrated Speedometer. X, XT ModelCalibrated Speedometer. X, XT Model
-
94710002294 Speedometer Ass'y. STD ModelSpeedometer Ass'y. STD Model
-
95415129349 LensLens
-
97415129355 Speedometer Button. X, XT ModelSpeedometer Button. X, XT Model
-
97710001473 Button. STD ModelButton. STD Model
-
98704901270 BRP Logo, 13 mmBRP Logo, 13 mm
-
100415129348 Gauge Ring. X, XT ModelGauge Ring. X, XT Model
-
100710001183 Trim Ring Ass'y. STD ModelTrim Ring Ass'y. STD Model
-
109710002625 Wiring Harness Ass'yWiring Harness Ass'y
