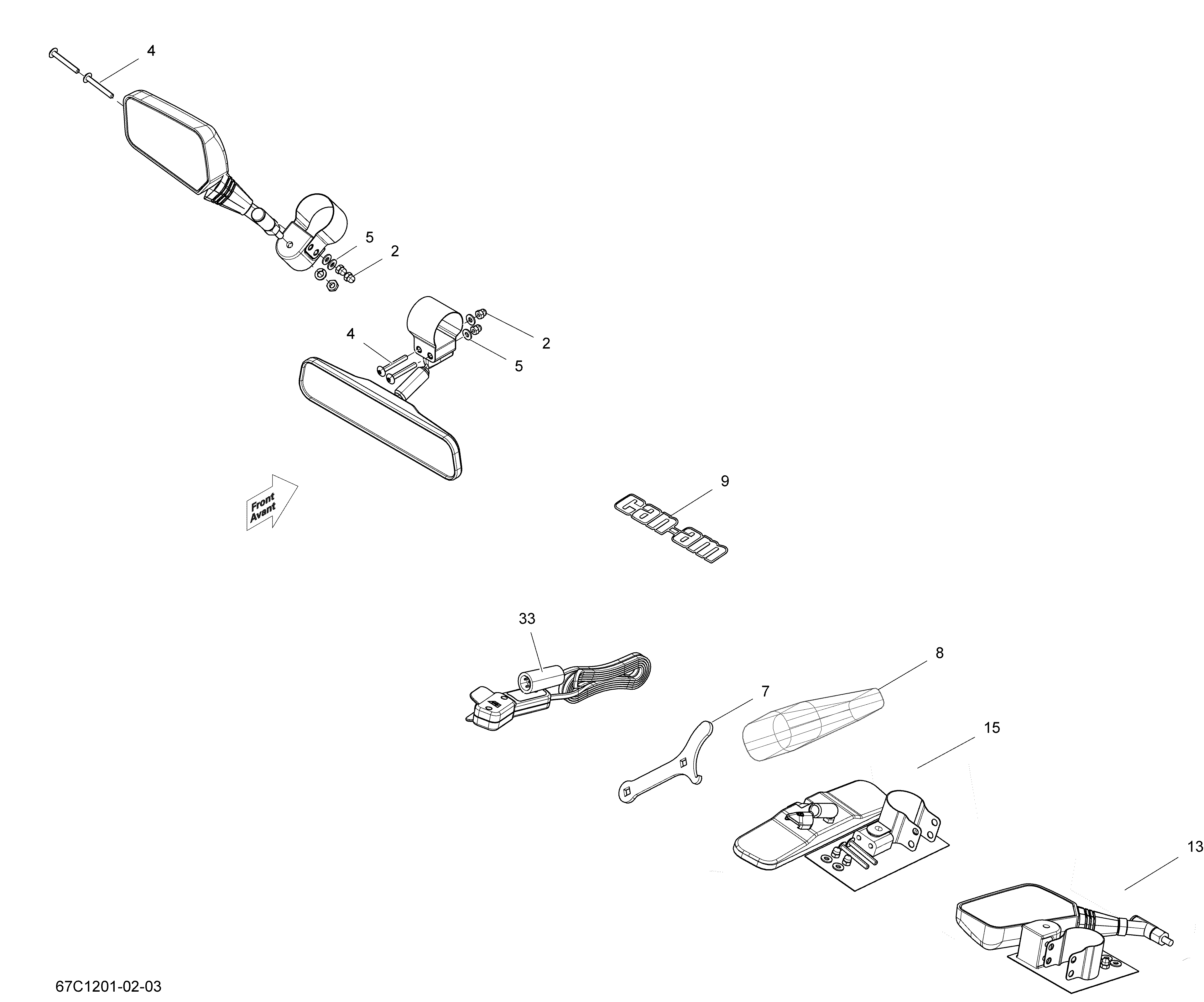

09- Mirrors And Tools для BRP Commander LTD, 1000 EFI - 2012
-
№АртикулНазвание
-
2232361493 Domed Nut M6Domed Nut M6
-
4250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
5250200039 Flat WasherFlat Washer
-
7529000057 Adjustment WrenchAdjustment Wrench
-
8704700148 Tool KitTool Kit
-
13708200182 Left Mirror Kit. EuropeLeft Mirror Kit. Europe
-
15708200183 Center Mirror Kit. EuropeCenter Mirror Kit. Europe
-
33710001002 Remote ControlRemote Control
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System
- 01- Crankcase
- 01- Crankshaft, Piston And Cylinder
- 01- Cylinder Head, Front
- 01- Cylinder Head, Rear
- 01- Engine
- 01- Engine Cooling
- 01- Engine Lubrication
- 01- Exhaust System
- 02- Air Intake
- 02- Air Intake Manifold And Throttle Body
- 02- Fuel System
- 03- Magneto And Electric Starter
- 05- Gear Box 1_(Type 684784) (Type 684786)
- 05- Gear Box 1_(Type 684788) (Type 684789)
- 05- Gear Box 2_(Type 684784) (Type 684786)
- 05- Gear Box 2_(Type 684788) (Type 684789)
- 05- Transmission
- 06- Brakes
- 07- Drive System, Front
- 07- Front Suspension
- 07- Steering
- 08- Drive Shaft
- 08- Drive System, Rear
- 08- Rear Suspension
- 09- Body And Accessories
- 09- Cab Interior
- 09- Decals
- 09- Frame
- 09- Frame Safety Cage
- • 09- Mirrors And Tools
- 09- Rear Cargo Box 1 Common Parts
- 09- Rear Cargo Box Body
- 09- Seat
- 10- Electrical Harness Air Compressor
- 10- Electrical Harness Radio
- 10- Electrical Harness Rear Europe
- 10- Electrical Harness Rear North America
- 10- Electrical Harness Speaker 1
- 10- Electrical Harness Speaker 2
- 10- Electrical System Europe
- 10- Electrical System North America
- 10- Electrical System North America
- 10- Electrical System STD, X, XT, LTD
- 10- Engine Harness And Electronic Module
- 10- Main Harness
- 10- Main Harness Europe
