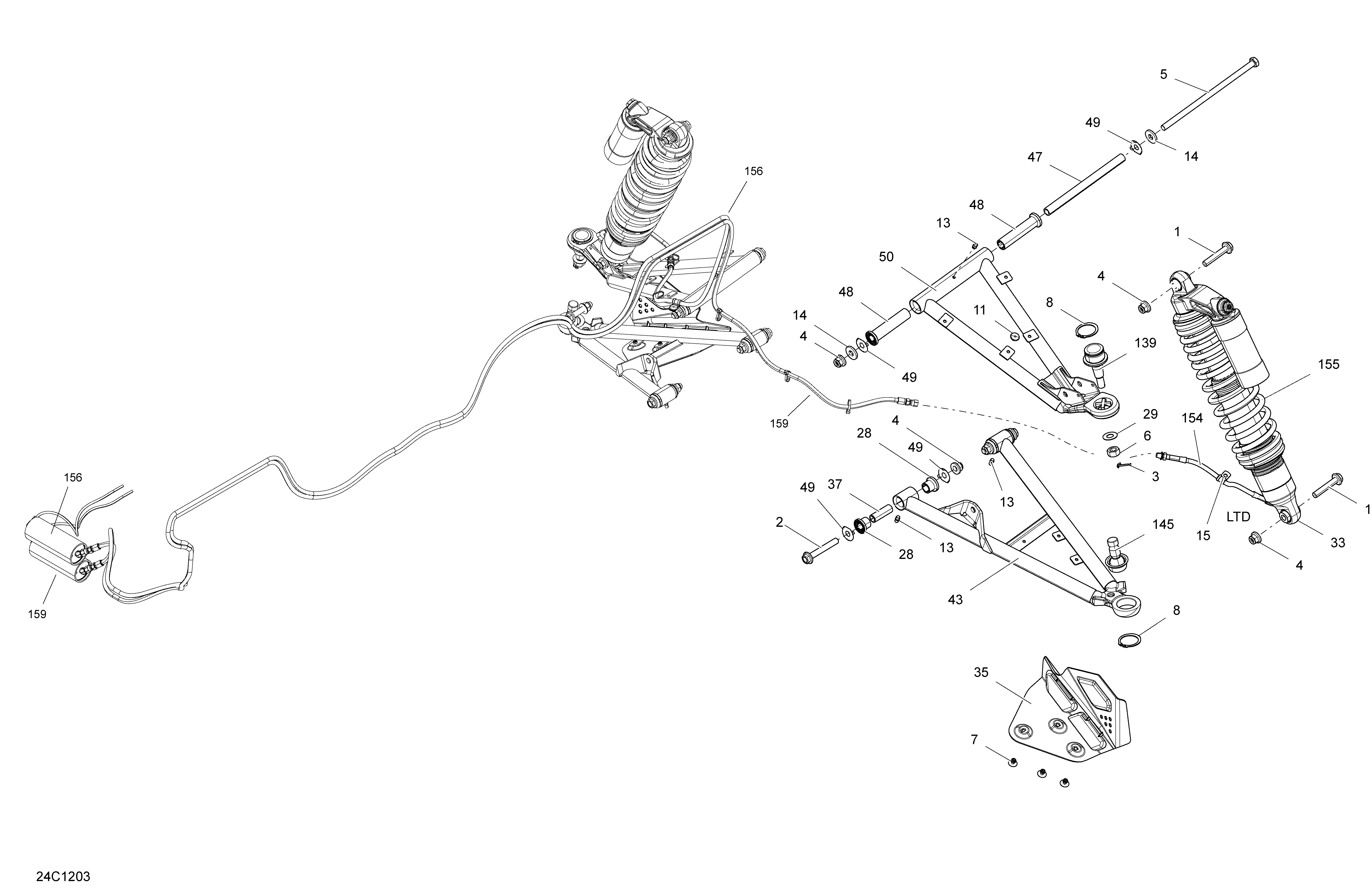

07- Front Suspension для BRP Commander LTD, 1000 EFI - 2012
-
№АртикулНазвание
-
1207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
2207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
3211400017 Cotter PinCotter Pin
-
4233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
5250000510 Hex. Cap Screw M10 X 225Hex. Cap Screw M10 X 225
-
6250100099 Nut M12Nut M12
-
7293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
8293370035 CirclipCirclip
-
9293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
11390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
13408200700 Grease FittingGrease Fitting
-
14503190439 WasherWasher
-
15705600459 ClampClamp
-
28703500875 Bushing Kit. Includes 37Bushing Kit. Includes 37
-
29706200281 Hardened WasherHardened Washer
-
33706201364 Front ShockFront Shock
-
35706200616 RH ProtectorRH Protector
-
35706200615 LH ProtectorLH Protector
-
37703500875 Bushing Kit. Includes 28Bushing Kit. Includes 28
-
43706200744 RH Lower Suspension ArmRH Lower Suspension Arm
-
43706200742 LH Lower Suspension ArmLH Lower Suspension Arm
-
47706201061 Inner BushingInner Bushing
-
48706201062 CushionCushion
-
49706201063 Wear PlateWear Plate
-
50706200796 Suspension Upper ArmSuspension Upper Arm
-
139706202044 Ball JointBall Joint
-
145706201371 Ball JointBall Joint
-
154706201446 LH Front Hose AssemblyLH Front Hose Assembly
-
154706201470 RH Front Hose AssemblyRH Front Hose Assembly
-
155706201473 Black SpringBlack Spring
-
156706201536 LH Front Hose AssemblyLH Front Hose Assembly
-
159706201537 RH Front Hose Ass'yRH Front Hose Ass'y
