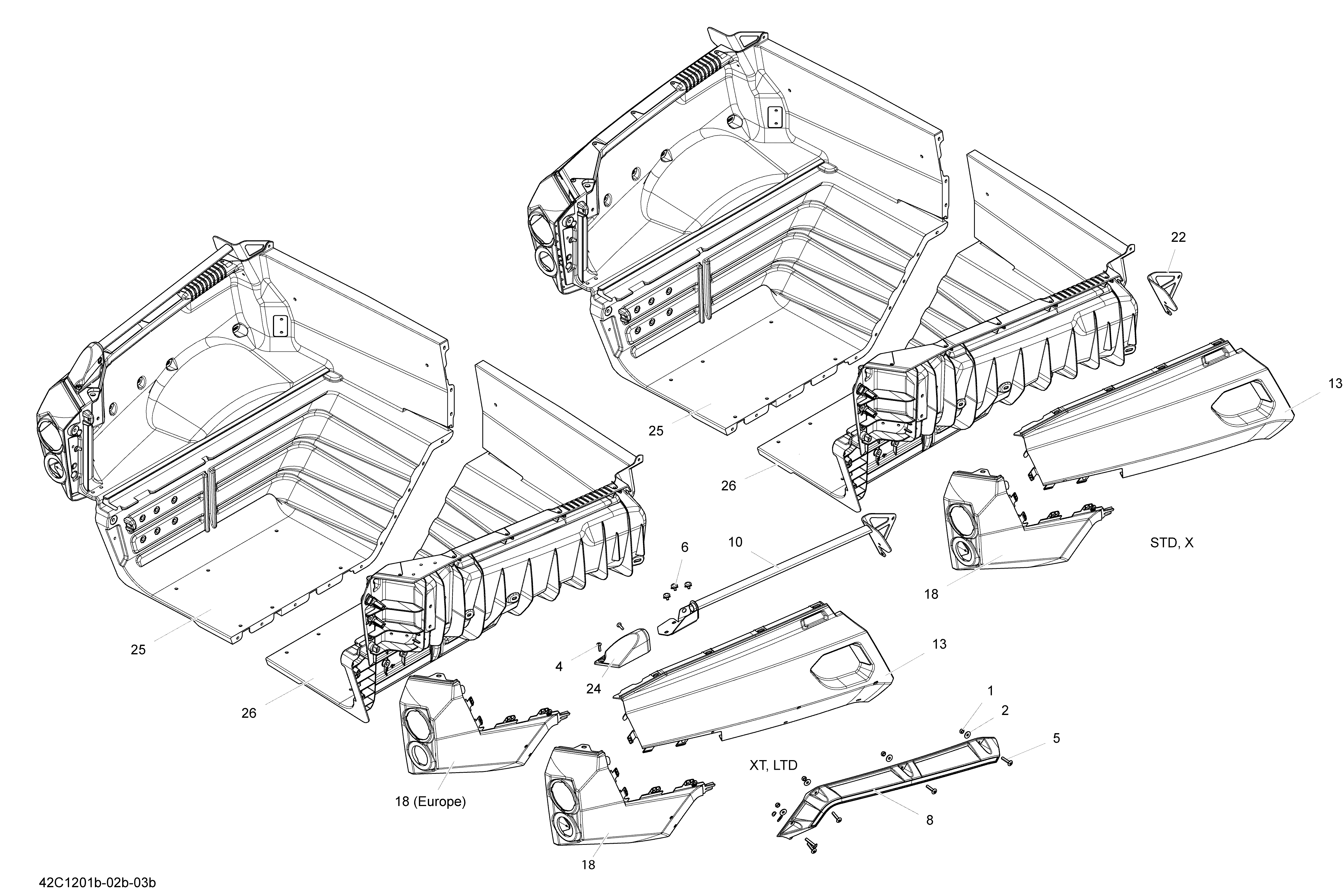

09- Rear Cargo Box Body для BRP Commander LTD, 1000 EFI - 2012
-
№АртикулНазвание
-
1232561434 Elastic Stop Nut M6. XT, LTD Model Except EuropeElastic Stop Nut M6. XT, LTD Model Except Europe
-
2234062670 Flat Washer. XT, LTD Model Except EuropeFlat Washer. XT, LTD Model Except Europe
-
4250000130 Torx Screw M5 X 20. XT, LTD ModelTorx Screw M5 X 20. XT, LTD Model
-
5250000398 Stainless Torx Screw,Nylon Patch,M6 X 30. XT, LTD Model Except EuropeStainless Torx Screw,Nylon Patch,M6 X 30. XT, LTD Model Except Europe
-
6293150190 Pop Rivet 3/16. XT, LTD ModelPop Rivet 3/16. XT, LTD Model
-
8715001013 Fender Extension Kit. XT, LTD Model Except EuropeFender Extension Kit. XT, LTD Model Except Europe
-
8715001013 Fender Extension Kit. XT, LTD Model Except EuropeFender Extension Kit. XT, LTD Model Except Europe
-
10708300231 LH Welded Rail. XT, LTD ModelLH Welded Rail. XT, LTD Model
-
10708300232 RH Welded Rail. XT, LTD ModelRH Welded Rail. XT, LTD Model
-
13708300547 LH Rear Fender, Blue. LTD ModelLH Rear Fender, Blue. LTD Model
-
13708300549 RH Rear Fender, Blue. LTD ModelRH Rear Fender, Blue. LTD Model
-
13708300548 Magnesium-LH Rear Fender. LTD ModelMagnesium-LH Rear Fender. LTD Model
-
13708300550 Magnesium-RH Rear Fender. LTD ModelMagnesium-RH Rear Fender. LTD Model
-
18708300103 LH Rear Facia. XT, LTD Model EuropeLH Rear Facia. XT, LTD Model Europe
-
18708300103 LH Rear Facia. XT, LTD Model Except EuropeLH Rear Facia. XT, LTD Model Except Europe
-
18708300104 RH Rear Facia. XT, LTD Model Except EuropeRH Rear Facia. XT, LTD Model Except Europe
-
18708300104 RH Rear Facia. XT, LTD Model EuropeRH Rear Facia. XT, LTD Model Europe
-
24708300233 LH Rail Cover. XT, LTD ModelLH Rail Cover. XT, LTD Model
-
24708300234 RH Rail Cover. XT, LTD ModelRH Rail Cover. XT, LTD Model
-
25715001259 LH Box Ass'y. XT, LTD ModelLH Box Ass'y. XT, LTD Model
-
26715001257 RH Box Ass'y. XT, LTD ModelRH Box Ass'y. XT, LTD Model
