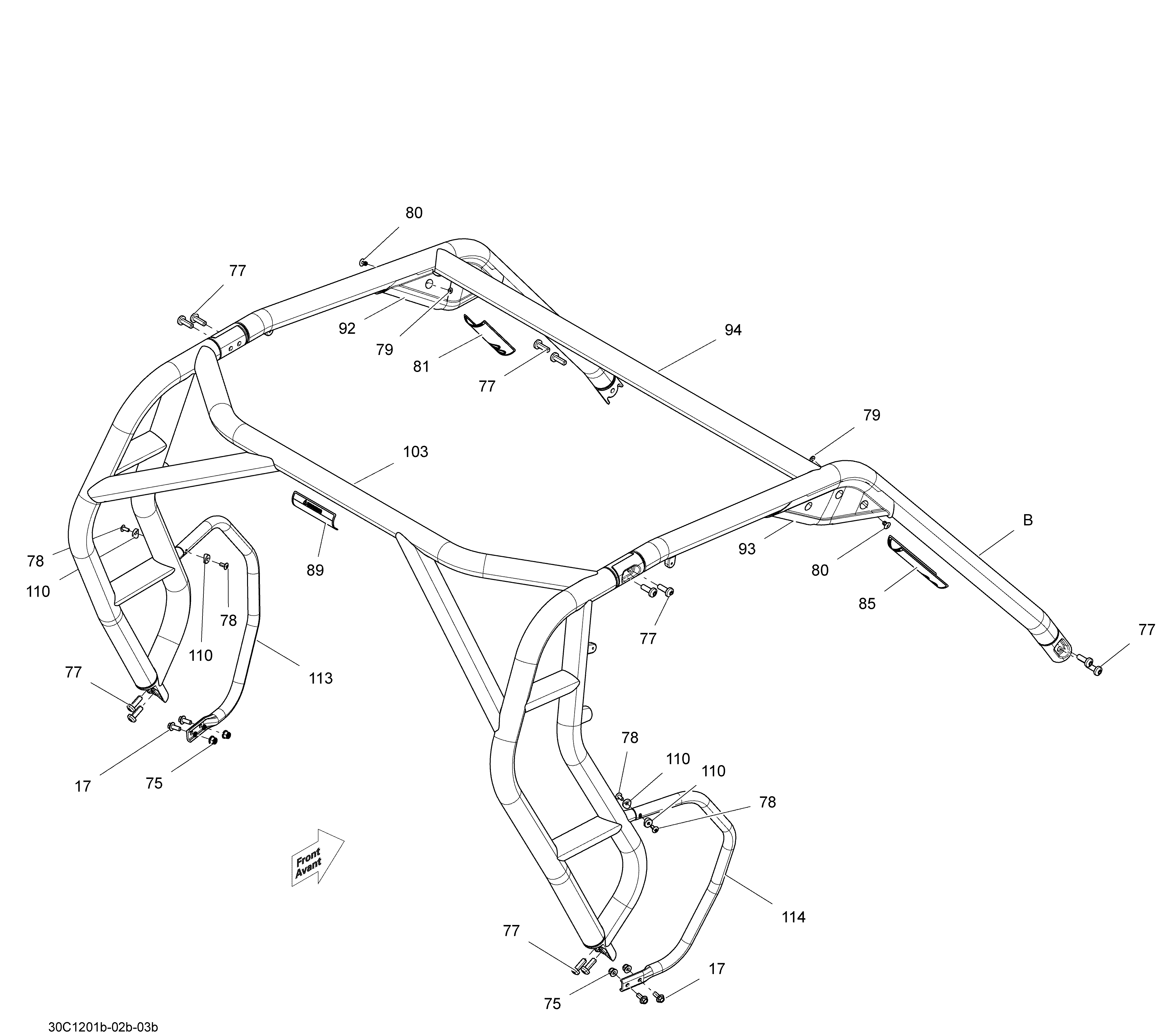

09- Frame Safety Cage для BRP Commander LTD, 1000 EFI - 2012
-
№АртикулНазвание
-
17207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
75233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
77250000438 Torx Truss Screw M10 X 30Torx Truss Screw M10 X 30
-
78250000439 Torx Truss Screw M6 X 14Torx Truss Screw M6 X 14
-
79250200121 Flat WasherFlat Washer
-
80293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
81704902413 Warning LabelWarning Label
-
85704902415 Warning LabelWarning Label
-
89704902424 Warning LabelWarning Label
-
92705004985 LH Cage Cap MouldingLH Cage Cap Moulding
-
93705004986 RH Cage Cap MouldingRH Cage Cap Moulding
-
110705202223 Offset WasherOffset Washer
-
113705202944 LH Side Protecting TubeLH Side Protecting Tube
-
114705202943 RH Side Protecting TubeRH Side Protecting Tube
-
B705202566 Cage KitCage Kit
