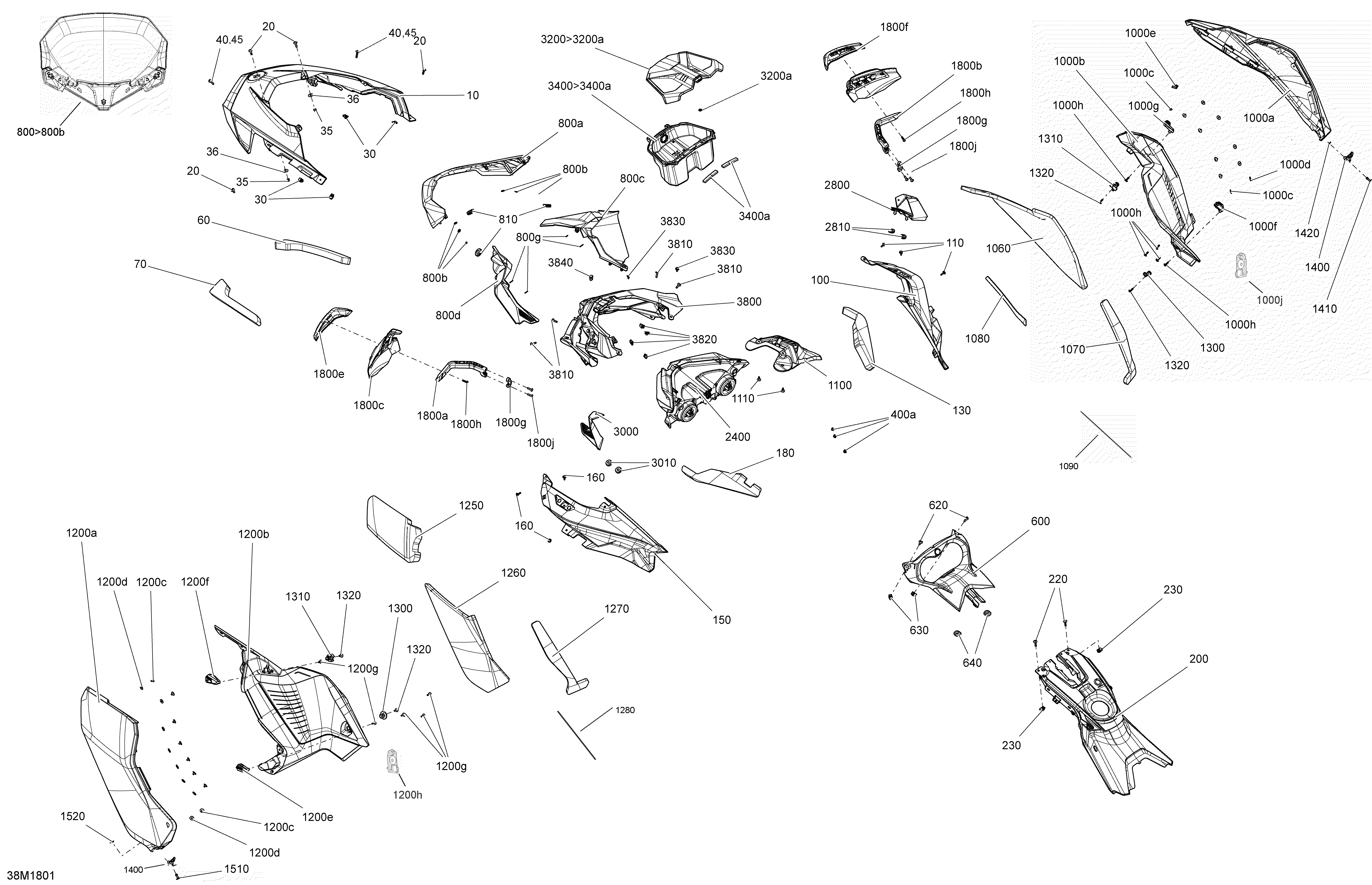

09- Hood MXZ - 850 E-TEC для BRP Ski-Doo 4- MXZ 850 E-TEC - 2018

№

Артикул

Название
10

517305744 Black, Front Hood. Black Model

Black, Front Hood. Black Model
10

517306099 Yellow, Front Hood. Package X, Yellow/Black Model

Yellow, Front Hood. Package X, Yellow/Black Model
10

517306237 White, Front Hood. Package TNT, White Model

White, Front Hood. Package TNT, White Model
20

250000528 Torx Screw M5 X 20

Torx Screw M5 X 20
30

250000079 Panel Nut M5 X 0.8

Panel Nut M5 X 0.8
35

233251494 Elastic Flanged Nut M5

Elastic Flanged Nut M5
36

250200040 Flat Washer

Flat Washer
40

250000587 Torx Screw M5 X 26

Torx Screw M5 X 26
45

250200166 Washer

Washer
60

517305763 RH Front Hood Foam

RH Front Hood Foam
70

517305764 LH Front Hood Foam

LH Front Hood Foam
100

517306007 Black - Hood RH. Black Model

Black - Hood RH. Black Model
100

517306100 Yellow - Hood RH. Package X, Yellow/Black Model

Yellow - Hood RH. Package X, Yellow/Black Model
100

517306238 White, RH Hood. Package TNT, White Model

White, RH Hood. Package TNT, White Model
110

250000725 Screw M4 X 16

Screw M4 X 16
130

517306001 RH Hood Foam

RH Hood Foam
150

517306008 Black - Hood LH. Black Model

Black - Hood LH. Black Model
150

517306101 Yellow - Hood LH. Package X, Yellow/Black Model

Yellow - Hood LH. Package X, Yellow/Black Model
150

517306239 White, LH Hood. Package TNT, White Model

White, LH Hood. Package TNT, White Model
160

250000725 Screw M4 X 16

Screw M4 X 16
180

517306002 LH Hood Foam

LH Hood Foam
190

513033813 Gasket

Gasket
200

517305745 Rear Console, Deep Black. Package TNT

Rear Console, Deep Black. Package TNT
200

517305745 Rear Console, Deep Black. Package Blizzard & X

Rear Console, Deep Black. Package Blizzard & X
220

250000587 Torx Screw M5 X 26

Torx Screw M5 X 26
230

250000079 Panel Nut M5 X 0.8

Panel Nut M5 X 0.8
240

517304518 Console Nut

Console Nut
600

517305781 Indicator Support, Deep Black. Package Blizzard & X

Indicator Support, Deep Black. Package Blizzard & X
600

517306319 Indicator Support. Package TNT

Indicator Support. Package TNT
620

250000587 Torx Screw M5 X 26

Torx Screw M5 X 26
630

250000079 Panel Nut M5 X 0.8

Panel Nut M5 X 0.8
800

517306455 Windshield Ass'y. Package Blizzard. Includes 800 to 800g

Windshield Ass'y. Package Blizzard. Includes 800 to 800g
800

517306422 Windshield Ass'y. Package X. Includes 800 to 800g

Windshield Ass'y. Package X. Includes 800 to 800g
800

860201258 Medium Windshield Kit. Package TNT. Includes 800 to 800g

Medium Windshield Kit. Package TNT. Includes 800 to 800g
800a

517305749 Windshield Support, Deep Black. Package X

Windshield Support, Deep Black. Package X
800a

517306183 Deep Black, Windshield Support. Package TNT

Deep Black, Windshield Support. Package TNT
800b

732610072 Push Nut

Push Nut
800c

517306063 Deflector RH, Black 63% Light Transm.. Package Blizzard & TNT

Deflector RH, Black 63% Light Transm.. Package Blizzard & TNT
800d

517306064 Deflector LH, Black 63% Light Transm.. Package Blizzard & TNT

Deflector LH, Black 63% Light Transm.. Package Blizzard & TNT
800e

250000889 Screw M4 X 16. Package Blizzard & TNT

Screw M4 X 16. Package Blizzard & TNT
800f

250200025 Washer M5. Package Blizzard

Washer M5. Package Blizzard
800g

250200024 Rubber Washer 5 mm. Package Blizzard & X

Rubber Washer 5 mm. Package Blizzard & X
810

517303756 Grommet

Grommet
1000a

517305860 Black, RH Panel

Black, RH Panel
1000a

517306475 White, RH Panel

White, RH Panel
1000b

517305861 Deep Black, RH Panel Trim

Deep Black, RH Panel Trim
1000c

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''
1000d

517124300 Washer

Washer
1000e

517305109 Rivet Plate

Rivet Plate
1000f

517305773 RH Rear Latch

RH Rear Latch
1000g

517305979 RH Front Latch

RH Front Latch
1000h

250000725 Screw M4 X 16

Screw M4 X 16
1000j

517306311 RH Hook

RH Hook
1200a

517305864 Black, LH Panel

Black, LH Panel
1200a

517306477 White, LH Panel

White, LH Panel
1200b

517305865 Black - Panel Trim LH

Black - Panel Trim LH
1200c

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''
1200d

517124300 Washer

Washer
1200e

517305774 LH Rear Latch

LH Rear Latch
1200f

517305980 LH Front Latch

LH Front Latch
1200g

250000725 Screw M4 X 16

Screw M4 X 16
1200h

517306312 LH Hook

LH Hook
1060

517305767 RH Central Panel Foam

RH Central Panel Foam
1070

517306116 RH Rear Panel Foam

RH Rear Panel Foam
1260

517305770 LH Central Panel Foam

LH Central Panel Foam
1270

517305766 LH Rear Panel Foam

LH Rear Panel Foam
1080

517306262 Rubber Sheet

Rubber Sheet
1090

517306480 RH Rear Panel Foam

RH Rear Panel Foam
1100

517305862 Deep Black, RH Grill

Deep Black, RH Grill
1110

250000725 Screw M4 X 16

Screw M4 X 16
1250

517305769 LH Front Panel Foam

LH Front Panel Foam
1280

517306479 LH Rear Panel Foam

LH Rear Panel Foam
1300

517305985 Rear Stud

Rear Stud
1310

517305988 Front Stud

Front Stud
1320

250000725 Screw M4 X 16

Screw M4 X 16
1400

517306309 RH Lower Latch

RH Lower Latch
1400

517306310 LH Lower Latch

LH Lower Latch
1410

293150100 Pop Rivet 3/16''

Pop Rivet 3/16''
1420

517124300 Washer

Washer
1510

293150100 Pop Rivet 3/16''

Pop Rivet 3/16''
1520

517124300 Washer

Washer
1800a

517305290 Deep Black, LH Arm. Package X

Deep Black, LH Arm. Package X
1800b

517305293 Deep Black, RH Arm. Package X

Deep Black, RH Arm. Package X
1800c

517305291 LH Deflector, Smoke 60% Transm.. Package X

LH Deflector, Smoke 60% Transm.. Package X
1800d

517305294 RH Deflector, Smoke 60% Transm.. Package X

RH Deflector, Smoke 60% Transm.. Package X
1800e

517305601 Deep Black, LH Cap, SKI-DOO. Package X

Deep Black, LH Cap, SKI-DOO. Package X
1800f

517305602 Deep Black, RH Cap SKI-DOO. Package X

Deep Black, RH Cap SKI-DOO. Package X
1800e

517305589 Sunburst Yellow, LH Cap, SKI-DOO. Package X

Sunburst Yellow, LH Cap, SKI-DOO. Package X
1800f

517305588 Sunburst Yellow, RH Cap, SKI-DOO. Package X

Sunburst Yellow, RH Cap, SKI-DOO. Package X
1800g

517305296 Bride. Package X

Bride. Package X
1800h

250000760 Torx Screw Truss Head K50X20 T20. Package X

Torx Screw Truss Head K50X20 T20. Package X
1800j

250000724 Torx Screw M5 X 20. Package X

Torx Screw M5 X 20. Package X
2400

517305752 Headlamp

Headlamp
2400a

415130081 Bulb

Bulb
2800

517305776 RH Deflector Black 63% Light Transm.. Package X

RH Deflector Black 63% Light Transm.. Package X
2810

517302841 Grommet. Package Blizzard & TNT

Grommet. Package Blizzard & TNT
3000

517305777 Deflector LH, Black 63% Light Transm.. Package X

Deflector LH, Black 63% Light Transm.. Package X
3010

517302841 Grommet. Package Blizzard & TNT

Grommet. Package Blizzard & TNT
3200

517305871 Deep Black, Cover Ass'y. Includes 3200 to 3200a

Deep Black, Cover Ass'y. Includes 3200 to 3200a
3200a

732610072 Push Nut

Push Nut
3400

517306058 Trunk Ass'y. Includes 3400 to 3400a

Trunk Ass'y. Includes 3400 to 3400a
3400a

517305157 Seal Joint

Seal Joint
3800

517305746 Deep Black, Headlamp Fairing

Deep Black, Headlamp Fairing
3810

250000528 Torx Screw M5 X 20

Torx Screw M5 X 20
3820

250000079 Panel Nut M5 X 0.8

Panel Nut M5 X 0.8
3830

250000725 Screw M4 X 16

Screw M4 X 16
3840

293150089 Tuflok Plastic Rivet

Tuflok Plastic Rivet
