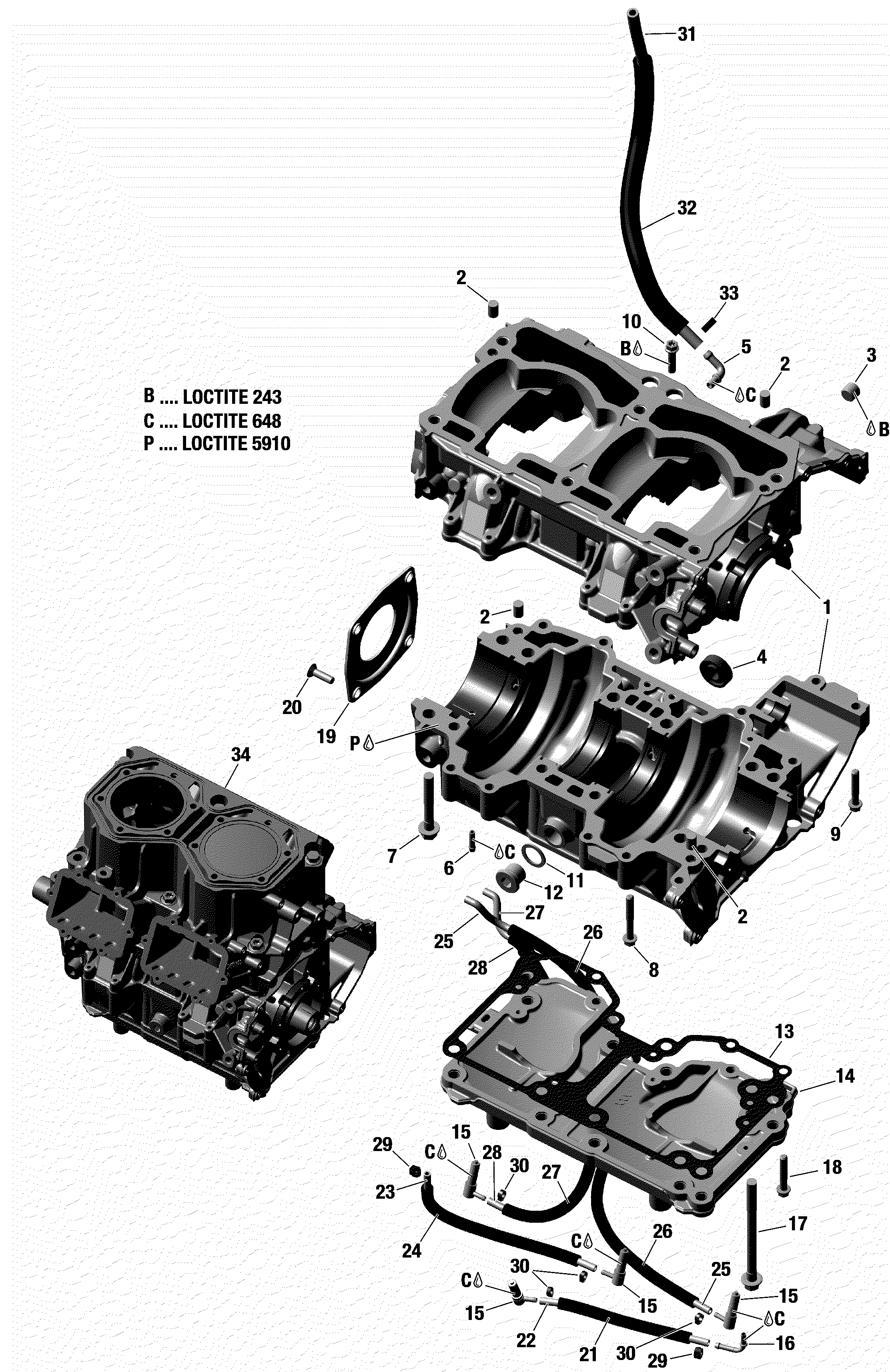

01- Crankcase для BRP Ski-Doo 4- MXZ 850 E-TEC - 2018
-
№АртикулНазвание
-
1>6420893773 Crankcase Ass'yCrankcase Ass'y
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420840658 Plug Screw M12x1,5Plug Screw M12x1,5
-
4420232100 Ball BearingBall Bearing
-
5420924523 Fitting 90DFitting 90D
-
6420924159 FittingFitting
-
7420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
8420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
9420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
10420440235 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
11420430622 O-RingO-Ring
-
12420640457 Plug ScrewPlug Screw
-
13420430072 Gasket Engine SupportGasket Engine Support
-
14>16420812687 Engine SupportEngine Support
-
15420956510 Check ValveCheck Valve
-
16420924051 Fitting 90DFitting 90D
-
17420941517 Hex. Screw M8 X 105Hex. Screw M8 X 105
-
18420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
19420812420 CoverCover
-
20420941436 Screw M6 X 20Screw M6 X 20
-
21420201544 Oil Line 140MMOil Line 140MM
-
22420460042 Tube 390MMTube 390MM
-
23420201543 Oil Line 180MMOil Line 180MM
-
24420460040 TubeTube
-
25420201541 Oil Line 445MMOil Line 445MM
-
26420460042 Tube 390MMTube 390MM
-
27420201542 Oil Line 365MMOil Line 365MM
-
28420460042 Tube 390MMTube 390MM
-
29420853138 Clamp 5.8-7.0MMClamp 5.8-7.0MM
-
30420851508 ClampClamp
-
31420201551 Oil Line 310MMOil Line 310MM
-
32420460047 Protector TubeProtector Tube
-
33420853653 ClampClamp
-
34420084902 Short Block. Except SHOT EngineShort Block. Except SHOT Engine
-
34420084910 Short Block. Shot EngineShort Block. Shot Engine
