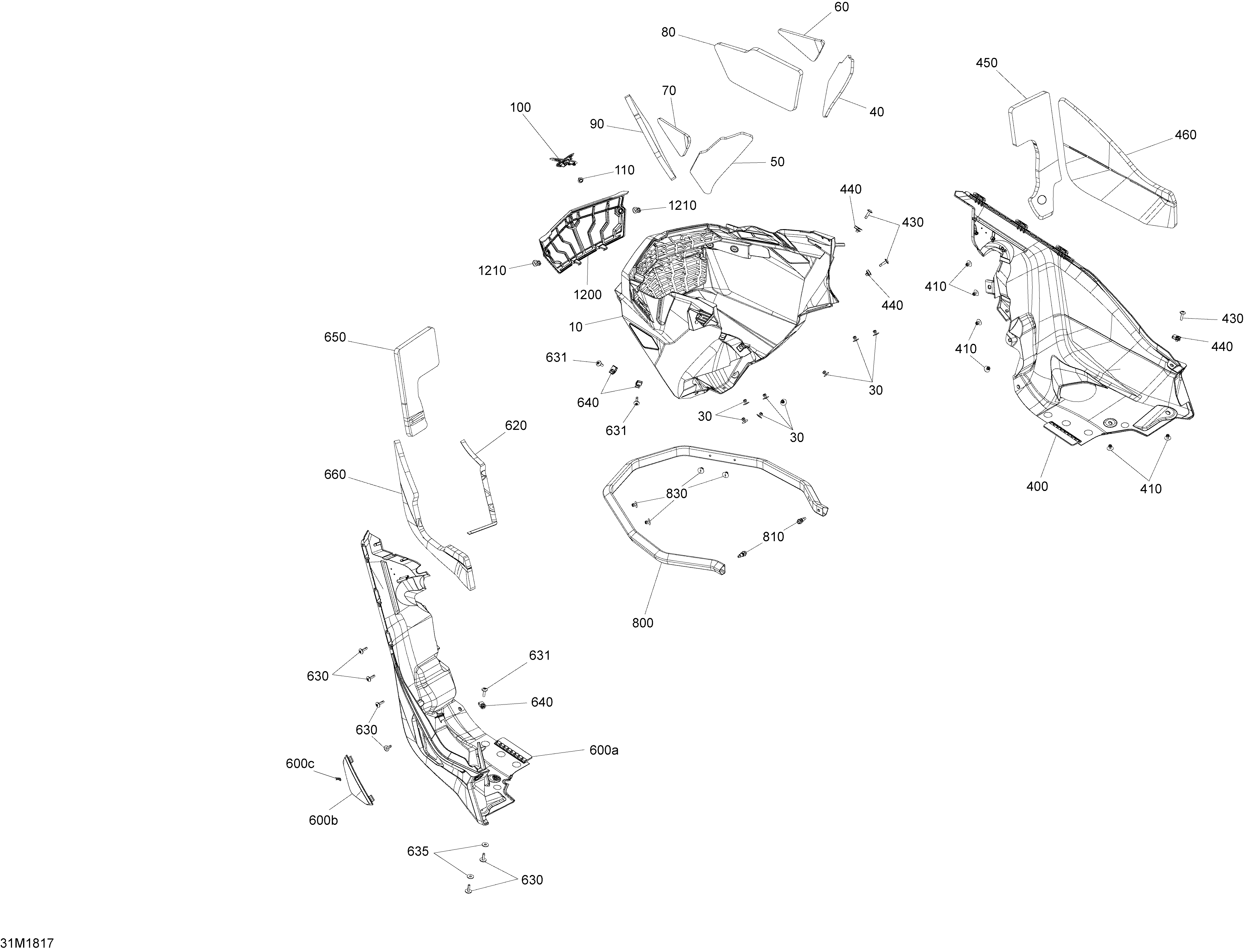

09- Bottom Pan - 850 E-TEC - Package XRS для BRP Ski-Doo 4- MXZ 850 E-TEC - 2018
-
№АртикулНазвание
-
10502007673 Bottom Pan - FrontBottom Pan - Front
-
30293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40502007463 RH Bottom Pan Upper FoamRH Bottom Pan Upper Foam
-
50502007653 LH Bottom Pan Upper FoamLH Bottom Pan Upper Foam
-
60502007545 RH Bottom Pan Central FoamRH Bottom Pan Central Foam
-
70502007546 LH Bottom Pan Central FoamLH Bottom Pan Central Foam
-
80502007465 RH Bottom Pan Lower FoamRH Bottom Pan Lower Foam
-
90502007466 LH Bottom Pan Lower FoamLH Bottom Pan Lower Foam
-
100502007645 Front Bottom Pan LogoFront Bottom Pan Logo
-
110250000805 Plastite Screw M4 X 10Plastite Screw M4 X 10
-
400502007755 Bottom Pan - RHBottom Pan - RH
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
430250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
440250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
450502007547 RH Bottom Pan Upper FoamRH Bottom Pan Upper Foam
-
460502007548 RH Bottom Pan Lower FoamRH Bottom Pan Lower Foam
-
600a502007675 Bottom Pan - LHBottom Pan - LH
-
600b502007676 Door - Bottom PanDoor - Bottom Pan
-
600c269800431 HairpinHairpin
-
620293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
630250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
631250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
635250200025 Washer M5Washer M5
-
640250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
650502007549 LH Bottom Pan Upper FoamLH Bottom Pan Upper Foam
-
660502007550 LH Bottom Pan Lower FoamLH Bottom Pan Lower Foam
-
800502007460 Front BumperFront Bumper
-
810207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
830293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200508000813 Lower Hood FilterLower Hood Filter
-
1200508000957 Upper Hood FilterUpper Hood Filter
-
1210293150089 Tuflok Plastic RivetTuflok Plastic Rivet
