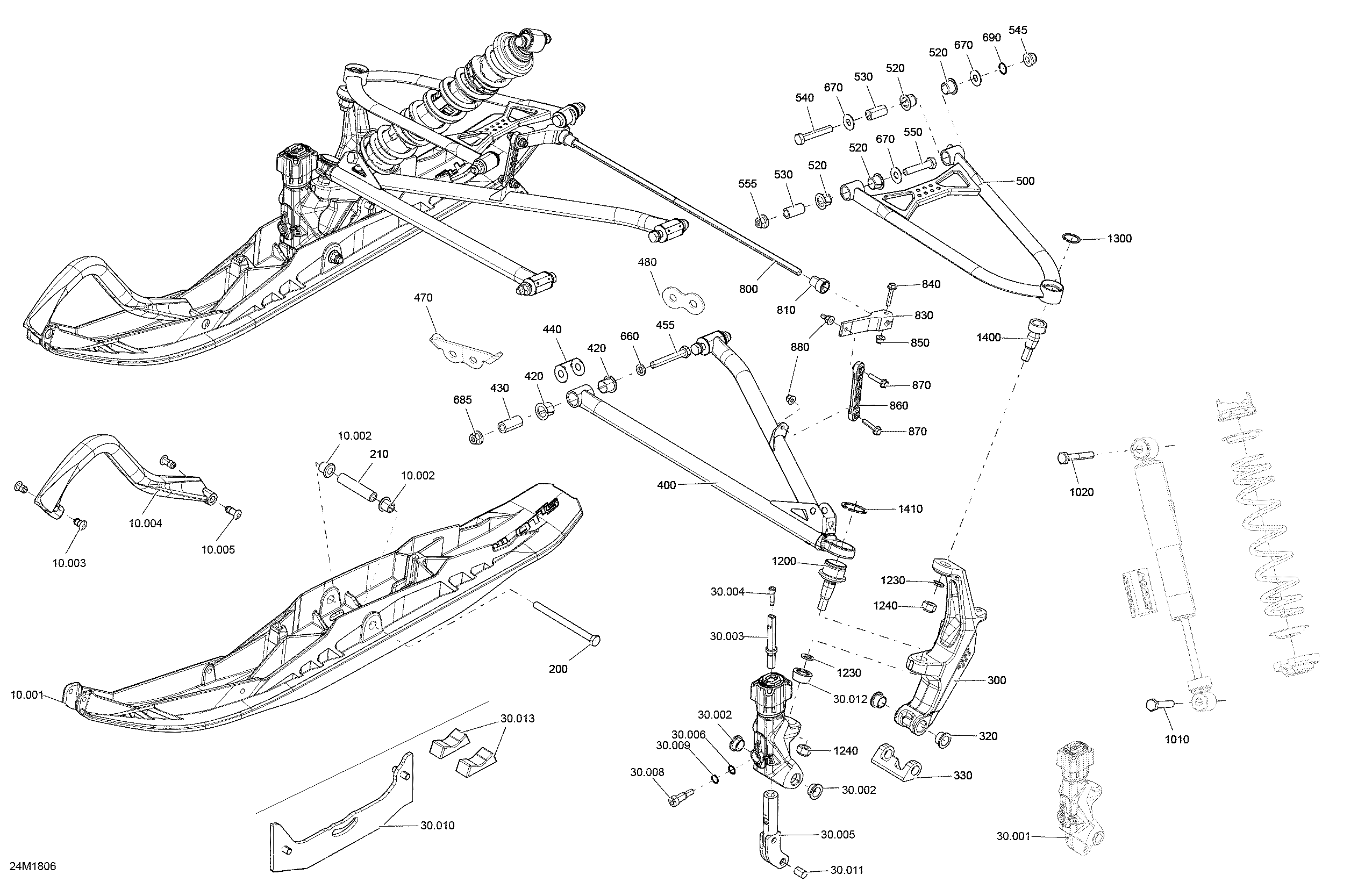

07- Front Suspension And Ski MXZ - 850 E-TEC - Package Blizzard для BRP Ski-Doo 4- MXZ 850 E-TEC - 2018

  • №
    Артикул
    Название
  • 10.001
    505073796 Deep Black RH Pilot TS Ski. Includes 10,001 to 10,002
    Deep Black RH Pilot TS Ski. Includes 10,001 to 10,002
  • 10.001
    505073786 Deep Black LH Pilot TS Ski. Includes 20,001 to 20,002
    Deep Black LH Pilot TS Ski. Includes 20,001 to 20,002
  • 10.002
    505071781 Ski Bushing
    Ski Bushing
  • 10.003
    505071812 Retainer
    Retainer
  • 10.004
    505072102 White Handle
    White Handle
  • 10.005
    505072133 Retainer
    Retainer
  • 30.001
    505074118 LH Runner Mechanism. Includes 30,001 to 30,013
    LH Runner Mechanism. Includes 30,001 to 30,013
  • 30.001
    505074119 RH Runner Mechanism. Includes 30,001 to 30,013
    RH Runner Mechanism. Includes 30,001 to 30,013
  • 30.002
    505073773 Bushing
    Bushing
  • 30.003
    505073771 Shaft
    Shaft
  • 30.004
    250000925 Socket Head Screw M6 X 25
    Socket Head Screw M6 X 25
  • 30.005
    505073761 Tip
    Tip
  • 30.006
    293370109 Circlip
    Circlip
  • 30.007
    505073785 Spring
    Spring
  • 30.008
    505073767 Screw
    Screw
  • 30.009
    293300013 O-Ring
    O-Ring
  • 30.01
    860201178 Carbide Runner Kit
    Carbide Runner Kit
  • 30.011
    505073782 Pin
    Pin
  • 30.012
    505073772 Grommet
    Grommet
  • 30.013
    505073788 Ski Stopper
    Ski Stopper
  • 200
    250000703 Hex. Screw M10 X 130
    Hex. Screw M10 X 130
  • 210
    505073691 Ski Axle
    Ski Axle
  • 300
    505074016 White - LH Ski Leg 10
    White - LH Ski Leg 10
  • 310
    505074017 White - RH Ski Leg 10
    White - RH Ski Leg 10
  • 320
    505072690 Leg Bushing
    Leg Bushing
  • 400
    505074194 RH Lower Arm 42''
    RH Lower Arm 42''
  • 410
    505074193 LH Lower Arm 42''
    LH Lower Arm 42''
  • 420
    505072208 Bushing
    Bushing
  • 430
    505072209 Bushing
    Bushing
  • 440
    505072634 Wear Plate
    Wear Plate
  • 445
    505072448 O-Ring
    O-Ring
  • 450
    250000291 Screw Hex. M10 X 70
    Screw Hex. M10 X 70
  • 455
    250000291 Screw Hex. M10 X 70
    Screw Hex. M10 X 70
  • 470
    505073723 Wear Plate
    Wear Plate
  • 480
    505073844 Plate
    Plate
  • 500
    505073724 LH Upper Arm 42''
    LH Upper Arm 42''
  • 510
    505073728 RH Upper Arm 42''
    RH Upper Arm 42''
  • 520
    505072250 Bushing
    Bushing
  • 530
    505072143 Bushing
    Bushing
  • 540
    250000290 Screw Hex. M10 X 60
    Screw Hex. M10 X 60
  • 545
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 550
    250000290 Screw Hex. M10 X 60
    Screw Hex. M10 X 60
  • 555
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 660
    503189564 Washer
    Washer
  • 670
    505072392 Washer
    Washer
  • 680
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 685
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 690
    505072448 O-Ring
    O-Ring
  • 800
    505073819 Stabilisator
    Stabilisator
  • 810
    505072064 Bushing
    Bushing
  • 830
    505073731 Stabilisator Lever
    Stabilisator Lever
  • 840
    207663056 Hex Flanged Screw M6 X 30
    Hex Flanged Screw M6 X 30
  • 850
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 860
    505072204 Double Ball Joint Link
    Double Ball Joint Link
  • 870
    207663056 Hex Flanged Screw M6 X 30
    Hex Flanged Screw M6 X 30
  • 880
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 1010
    250000824 Hexagonal Flange Screw M8 X 58
    Hexagonal Flange Screw M8 X 58
  • 1020
    250000824 Hexagonal Flange Screw M8 X 58
    Hexagonal Flange Screw M8 X 58
  • 1200
    505074009 Ball Joint
    Ball Joint
  • 1230
    503192491 Washer
    Washer
  • 1240
    232521464 Hex Elastic Nut M12
    Hex Elastic Nut M12
  • 1300
    293370070 Circlip
    Circlip
  • 1400
    505072913 Upper Ball Joint
    Upper Ball Joint
  • 1410
    293370098 Snap Ring
    Snap Ring
