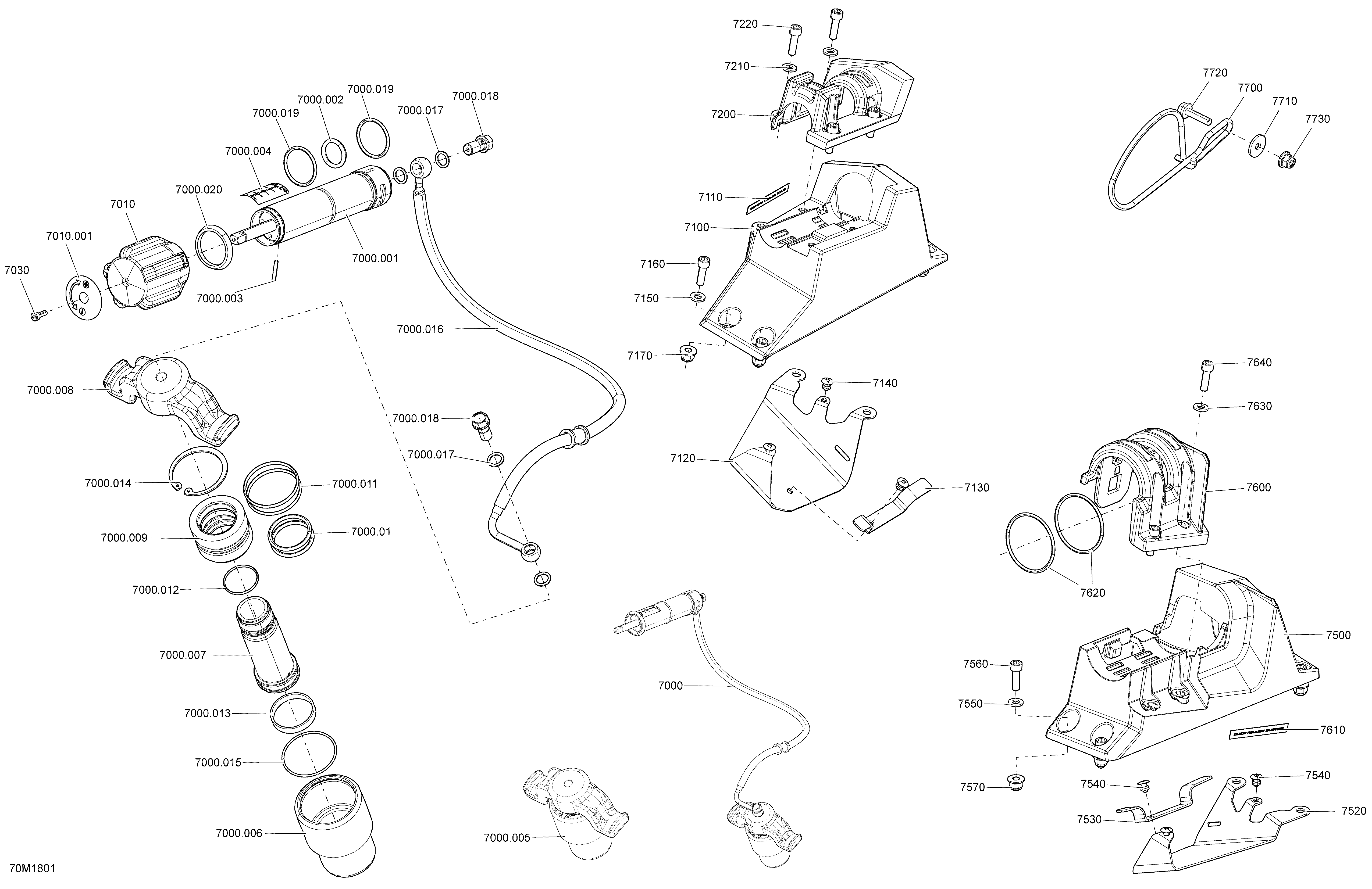

08- QAS System - 850 E-TEC для BRP Ski-Doo 4- MXZ 850 E-TEC - 2018
-
№АртикулНазвание
-
7000503193777 Hydraulic Adjuster Ass'y. Includes 7000 to 7000,02Hydraulic Adjuster Ass'y. Includes 7000 to 7000,02
-
7000.001503193490 Master Cylinder Ass'y. Includes 7000,001 to 7000,004Master Cylinder Ass'y. Includes 7000,001 to 7000,004
-
7000.002293300036 O-RingO-Ring
-
7000.003250400014 Spring PinSpring Pin
-
7000.004516004917 Adjustment DecalAdjustment Decal
-
7000.005503193778 Actuator Ass'y. Includes 7000,005 to 7000,015Actuator Ass'y. Includes 7000,005 to 7000,015
-
7000.006503192795 CylinderCylinder
-
7000.007503193779 PistonPiston
-
7000.008503192633 Spring BracketSpring Bracket
-
7000.009503193485 Holder. Includes 7000,009 to 7000,011Holder. Includes 7000,009 to 7000,011
-
7000.01293300068 O-RingO-Ring
-
7000.011503192832 O-RingO-Ring
-
7000.012293300039 O-RingO-Ring
-
7000.013503192833 Wear RingWear Ring
-
7000.014503192834 Retaining RingRetaining Ring
-
7000.015503193014 O-RingO-Ring
-
7000.016503193476 Connector HoseConnector Hose
-
7000.017705600310 Copper WasherCopper Washer
-
7000.018705600628 Banjo BoltBanjo Bolt
-
7000.019293250269 O-RingO-Ring
-
7000.02503192825 SealSeal
-
7010503193056 Knob Adjuster Ass'y. Includes 7010 to 7010,001Knob Adjuster Ass'y. Includes 7010 to 7010,001
-
7010.001516004751 Sticker Knob AdjusterSticker Knob Adjuster
-
7030205541660 Socket Screw M4 x 16 (Scotch Grip)Socket Screw M4 x 16 (Scotch Grip)
-
7100503194686 LH Support. Includes 7100 to 7100,001LH Support. Includes 7100 to 7100,001
-
7100.001516006369 DecalDecal
-
7120503194524 LH Hose ProtectorLH Hose Protector
-
7130503193413 PlatePlate
-
7140293150144 Stavex RivetStavex Rivet
-
7150234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7160205062560 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
7170233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7200503192956 LH Half HousingLH Half Housing
-
7210234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7220205062060 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
7500503194685 RH SupportRH Support
-
7520503194525 RH Hose ProtectorRH Hose Protector
-
7530503193413 PlatePlate
-
7540293150144 Stavex RivetStavex Rivet
-
7550234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7560205062560 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
7570233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7600503192957 RH Half-HousingRH Half-Housing
-
7610516006369 DecalDecal
-
7620293250085 O-RingO-Ring
-
7630234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7640205062060 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
7700503194113 ProtectorProtector
-
7710224061201 Flat WasherFlat Washer
-
7720207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
7730233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
