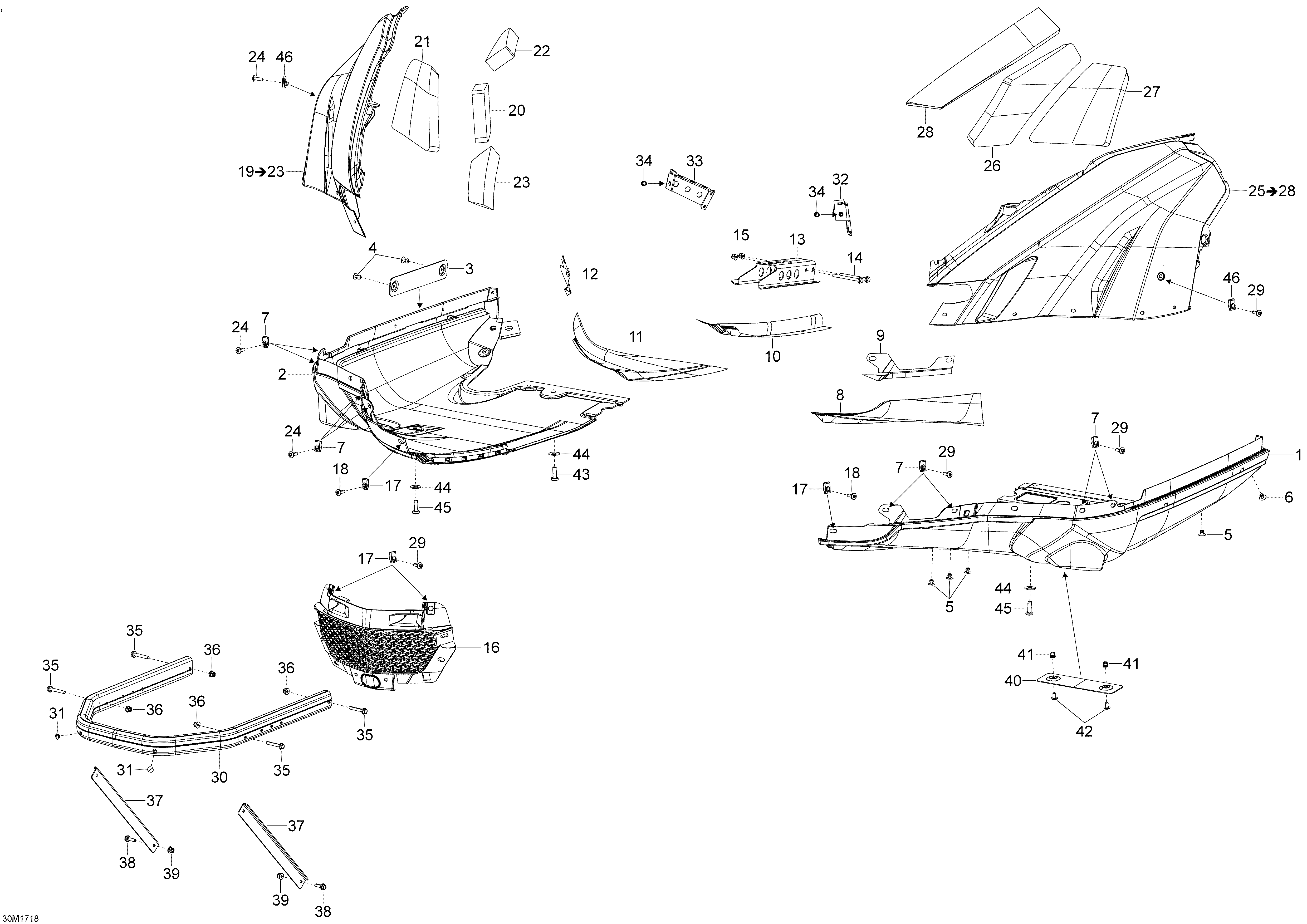

09- Bottom Pan для BRP Ski-Doo SKANDIC - 4-STROKE - WT-SWT - 2017

  • №
    Артикул
    Название
  • 1
    502007447 Black LH Lower Bottom Pan
    Black LH Lower Bottom Pan
  • 2
    502007446 Black RH Lower Bottom Pan
    Black RH Lower Bottom Pan
  • 3
    502007255 Heat Isolation Plate
    Heat Isolation Plate
  • 4
    293150211 Rivet
    Rivet
  • 5
    293150104 Pop Rivet 3/16''. Model WT
    Pop Rivet 3/16''. Model WT
  • 5
    293150104 Pop Rivet 3/16''. Model SWT
    Pop Rivet 3/16''. Model SWT
  • 6
    293150108 Pop Rivet 3/16''. Model WT
    Pop Rivet 3/16''. Model WT
  • 7
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 8
    508000832 Heat Shield. Engine 900 ACE
    Heat Shield. Engine 900 ACE
  • 9
    508000835 Heat Shield. Engine 900 ACE
    Heat Shield. Engine 900 ACE
  • 10
    508000837 Heat Shield. Engine 900 ACE
    Heat Shield. Engine 900 ACE
  • 11
    508000833 Heat Shield. Engine 900 ACE
    Heat Shield. Engine 900 ACE
  • 12
    508000836 Heat Shield. Engine 900 ACE
    Heat Shield. Engine 900 ACE
  • 13
    502007688 Support
    Support
  • 14
    207667056 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 15
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 16
    502007140 Front Grill
    Front Grill
  • 17
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 18
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 19
    502007292 Black Bottom Pan Ass'y RH. Includes 19 To 23
    Black Bottom Pan Ass'y RH. Includes 19 To 23
  • 20
    502007133 Insulator
    Insulator
  • 21
    502007132 Insulator
    Insulator
  • 22
    502007008 Insulator
    Insulator
  • 23
    502007009 Insulator
    Insulator
  • 24
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 25
    502007294 Black Bottom Pan Ass'y LH. Includes 25 To 28
    Black Bottom Pan Ass'y LH. Includes 25 To 28
  • 26
    502007088 Insulator
    Insulator
  • 27
    502007131 Insulator
    Insulator
  • 28
    502007185 Insulator
    Insulator
  • 29
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 30
    502007684 Clear Anod. Bumper
    Clear Anod. Bumper
  • 31
    293730041 Full Moon Dart 8 mm
    Full Moon Dart 8 mm
  • 32
    502007535 LH Bottom Pan Fastener
    LH Bottom Pan Fastener
  • 33
    502007536 RH Bottom Pan Fastener
    RH Bottom Pan Fastener
  • 34
    605636003 Clinch Nut M6 Hexsert
    Clinch Nut M6 Hexsert
  • 35
    207664044 Hex. Flanged Screw M6 X 40
    Hex. Flanged Screw M6 X 40
  • 36
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 37
    502006927 Bumper Support
    Bumper Support
  • 38
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 39
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 40
    518328879 Oil Plate
    Oil Plate
  • 41
    605636003 Clinch Nut M6 Hexsert
    Clinch Nut M6 Hexsert
  • 42
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 43
    250000752 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 44
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 45
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 46
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
