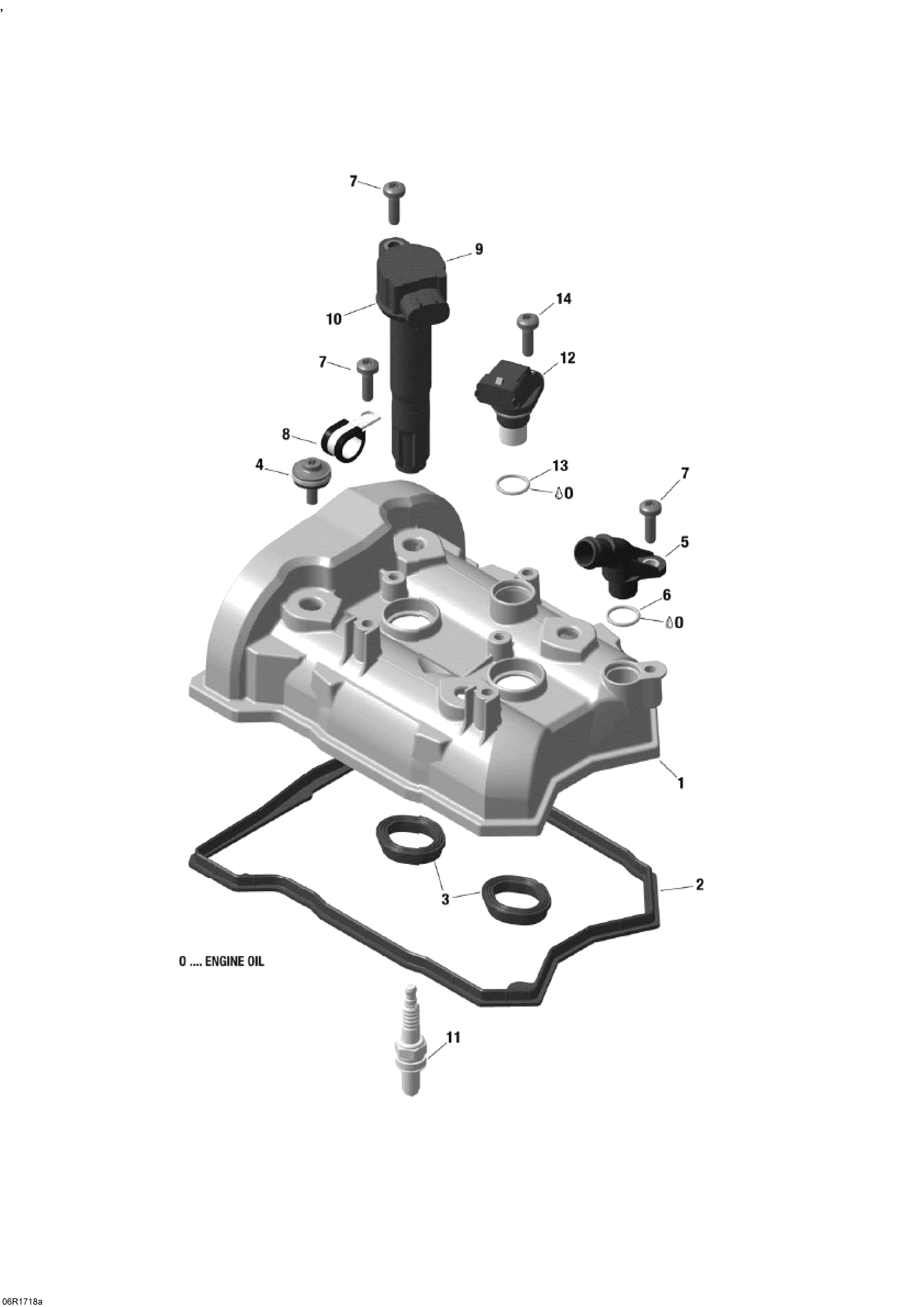

01- Valve Cover - 600 ACE для BRP Ski-Doo SKANDIC - 4-STROKE - WT-SWT - 2017
-
№АртикулНазвание
-
1420911042 Valve CoverValve Cover
-
2420431621 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
3420431751 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
4420440495 Torx Distance Screw M6Torx Distance Screw M6
-
5420611240 ConnectorConnector
-
6420631240 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
7420441386 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
8420851492 Cable ClampCable Clamp
-
9420666142 Stick Coil. Includes 9 To 10Stick Coil. Includes 9 To 10
-
10420201430 Protection CapProtection Cap
-
11415129670 Spark Plug, NGK MR7BI-8Spark Plug, NGK MR7BI-8
-
12420664045 Camshaft Position Sensor Ass'y. Includes 12 To 13Camshaft Position Sensor Ass'y. Includes 12 To 13
-
13420631890 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
14420441386 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
