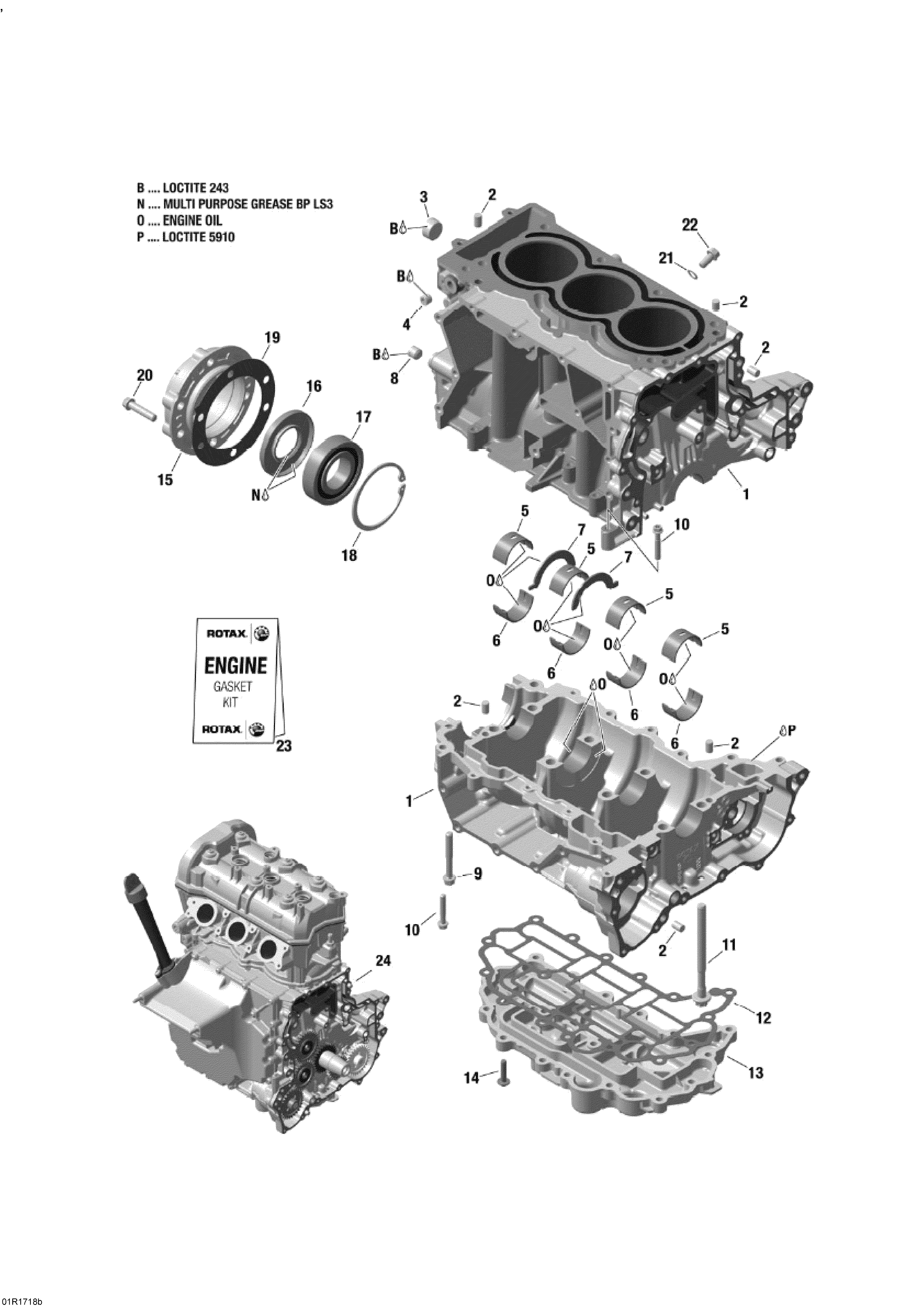

01- Engine Block - 900 ACE для BRP Ski-Doo SKANDIC - 4-STROKE - WT-SWT - 2017
-
№АртикулНазвание
-
1420893138 Engine Block Ass'y. Includes 1 To 6Engine Block Ass'y. Includes 1 To 6
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420641317 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
4420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
5420933180 CushionCushion
-
6420933185 CushionCushion
-
7420933140 Ring HalfRing Half
-
8420840500 Threaded PinThreaded Pin
-
9420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
10420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
11420940945 Flanged Torx Screw M9 X 113Flanged Torx Screw M9 X 113
-
12420431820 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
13420911500 Oil SumpOil Sump
-
14420841549 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
15420911845 PTO Cover. Includes 15 To 18PTO Cover. Includes 15 To 18
-
16420431402 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
17420832232 Ball BearingBall Bearing
-
18420845790 Retaining RingRetaining Ring
-
19420450080 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
20420641188 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
21420950141 Sealing Ring. Included In Gasket KitSealing Ring. Included In Gasket Kit
-
22420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
23420686235 Engine Gasket SetEngine Gasket Set
-
24420090301 Long Block 903Long Block 903
