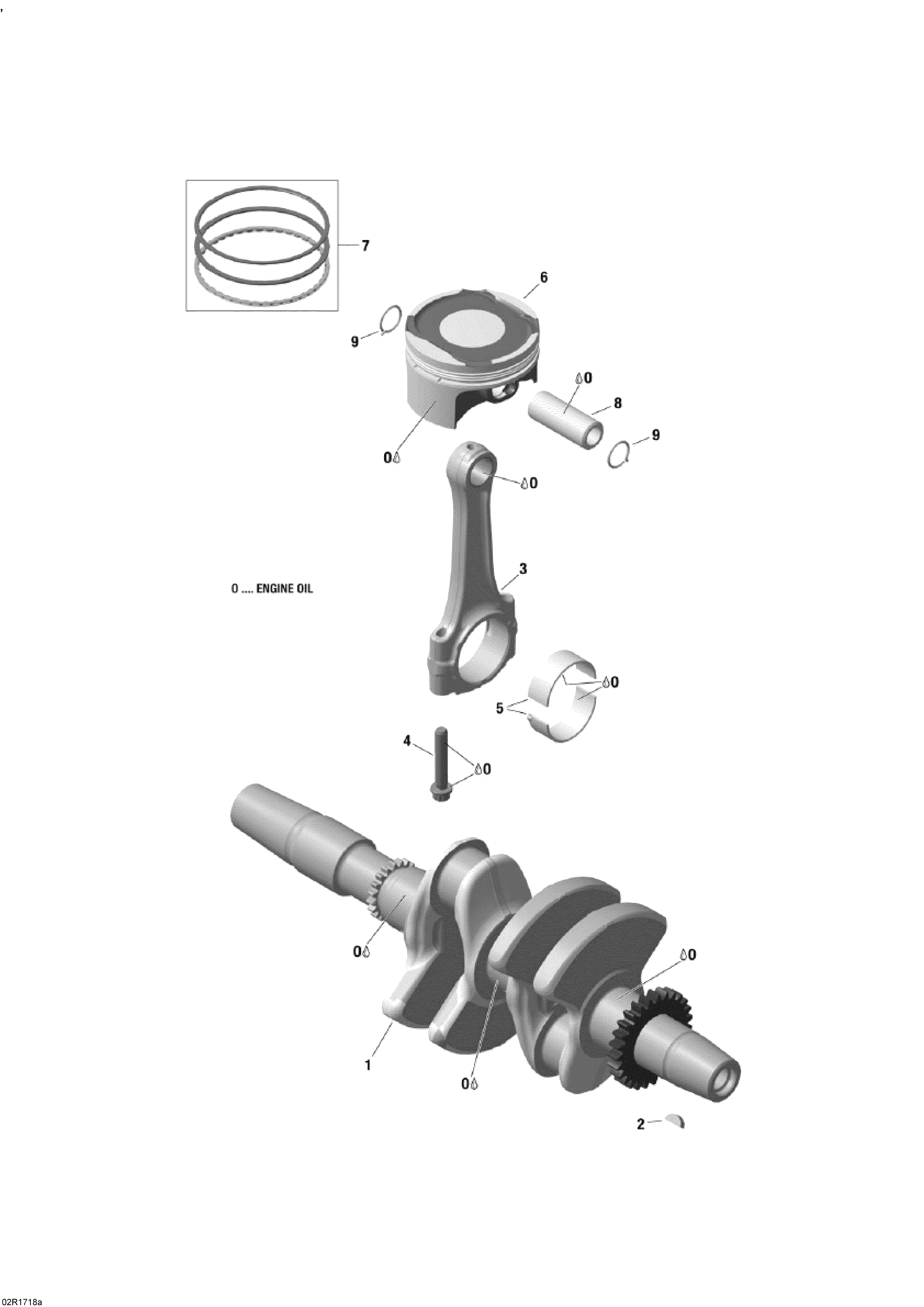

01- Crankshaft, Pistons And Balance Shaft - 600 ACE для BRP Ski-Doo SKANDIC - 4-STROKE - WT-SWT - 2017

  • №
    Артикул
    Название
  • 1
    420819765 Crankshaft Ass'y. Includes 1 To 2
    Crankshaft Ass'y. Includes 1 To 2
  • 2
    420246570 Woodruff Key 4 X 5
    Woodruff Key 4 X 5
  • 3
    420917705 Connecting Rod Ass'y. Includes 3 To 4
    Connecting Rod Ass'y. Includes 3 To 4
  • 4
    420641790 Connecting Rod Screw M7 X 1. +70°+/- 5° ROTATION ANGLE
    Connecting Rod Screw M7 X 1. +70°+/- 5° ROTATION ANGLE
  • 5
    420933191 Plain Bearing
    Plain Bearing
  • 6
    420892821 Piston Ass'y, 73.958 mm. Includes 6 To 7
    Piston Ass'y, 73.958 mm. Includes 6 To 7
  • 7
    420892824 Piston Ring Set
    Piston Ring Set
  • 8
    420916510 Piston Pin
    Piston Pin
  • 9
    420845810 Piston Circlip. Included In Gasket Kit
    Piston Circlip. Included In Gasket Kit
