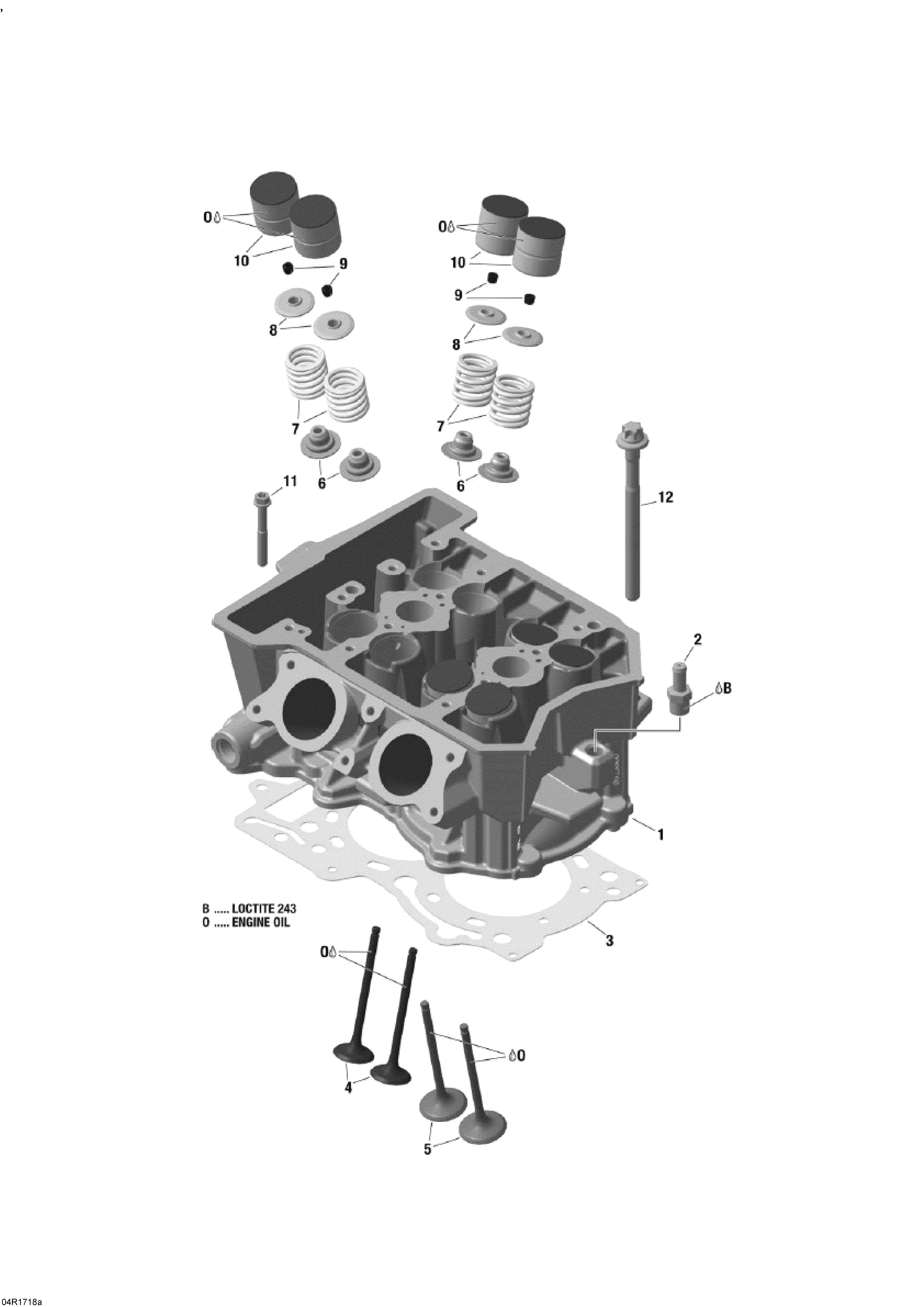

01- Cylinder Head And Exhaust Manifold - 600 ACE для BRP Ski-Doo SKANDIC - 4-STROKE - WT-SWT - 2017
-
№АртикулНазвание
-
1420623807 Cylinderhead Ass'yCylinderhead Ass'y
-
2420441420 Hose NippleHose Nipple
-
3420431611 Cylinder Head Gasket. Included In Gasket KitCylinder Head Gasket. Included In Gasket Kit
-
4420855140 Exhaust Valve, 25 mmExhaust Valve, 25 mm
-
5420855130 Intake Valve, 29 mmIntake Valve, 29 mm
-
6420431671 Valve Stem Seal. Included In Gasket KitValve Stem Seal. Included In Gasket Kit
-
7420939540 Valve SpringValve Spring
-
8420855150 Valve Spring RetainerValve Spring Retainer
-
9420254630 Cotter ValveCotter Valve
-
10420855164 Valve Lifter Bucket BlocValve Lifter Bucket Bloc
-
11420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
12420940945 Flanged Torx Screw M9 X 113. +120°+/- 5° ROTATION ANGLEFlanged Torx Screw M9 X 113. +120°+/- 5° ROTATION ANGLE
