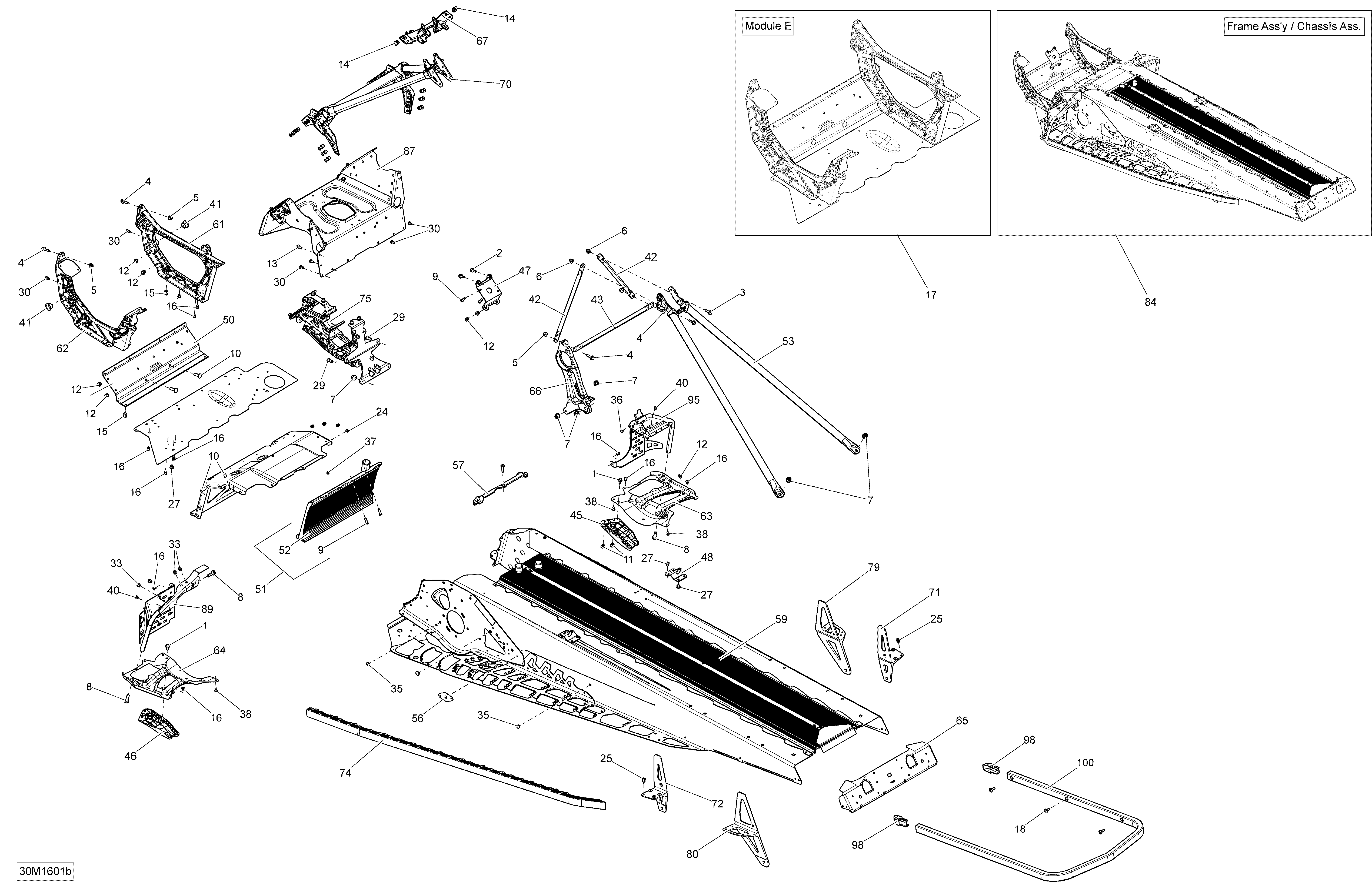

09- Frame - Except Package Sport для BRP Ski-Doo SUMMIT 800R E-TEC - 2016

  • №
    Артикул
    Название
  • 1
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip. Package-SP, X, BURTON
    Hex. Flanged Screw M6 X 12, Scotch Grip. Package-SP, X, BURTON
  • 2
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 3
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 4
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 5
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 6
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 7
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 8
    250000752 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 9
    250300027 Clinch Stud M6 X 20
    Clinch Stud M6 X 20
  • 10
    250300038 Clinch Stud
    Clinch Stud
  • 11
    293150104 Pop Rivet 3/16''. Package-SP, X, BURTON
    Pop Rivet 3/16''. Package-SP, X, BURTON
  • 12
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 13
    210261650 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 14
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 15
    293150120 Hemlock Rivet 6.5 mm
    Hemlock Rivet 6.5 mm
  • 16
    293150144 Stavex Rivet
    Stavex Rivet
  • 17
    518327567 Front E Module
    Front E Module
  • 18
    250000779 Torx Screw M6 X 18, Scotch Grip
    Torx Screw M6 X 18, Scotch Grip
  • 24
    293150146 Henrob Rivet
    Henrob Rivet
  • 25
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 27
    293150174 Hemlock Rivet, 6.4 mm
    Hemlock Rivet, 6.4 mm
  • 29
    293150182 Monobolt Rivet 6.4
    Monobolt Rivet 6.4
  • 30
    293150191 Monobolt Rivet, 4.8 mm
    Monobolt Rivet, 4.8 mm
  • 33
    293450268 Insert
    Insert
  • 35
    293730047 Black Dart 8 mm. Except Package-BURTON
    Black Dart 8 mm. Except Package-BURTON
  • 35
    293730054 Dart 8 mm, White. Package-BURTON
    Dart 8 mm, White. Package-BURTON
  • 35
    293730053 Black Dart 5 mm
    Black Dart 5 mm
  • 35
    293730060 Black Dart 10 mm
    Black Dart 10 mm
  • 36
    293730042 Full Moon Dart 5 mm
    Full Moon Dart 5 mm
  • 37
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 38
    390909100 Avex Rivet
    Avex Rivet
  • 40
    390909200 Avex Rivet
    Avex Rivet
  • 41
    505073317 Leg Cushion
    Leg Cushion
  • 42
    518325114 Upper Column Support
    Upper Column Support
  • 43
    518325115 Center Column Support
    Center Column Support
  • 45
    518325782 RH Deflector. Package-SP, X, BURTON
    RH Deflector. Package-SP, X, BURTON
  • 46
    518325783 LH Deflector. Package-SP, X, BURTON
    LH Deflector. Package-SP, X, BURTON
  • 47
    518325943 MAG Engine Support
    MAG Engine Support
  • 48
    518325973 RH Rear Base
    RH Rear Base
  • 48
    518325974 LH Rear Base
    LH Rear Base
  • 50
    518326198 Front Member
    Front Member
  • 51
    518326485 Front Radiator
    Front Radiator
  • 52
    518326486 Front Radiator
    Front Radiator
  • 53
    518326559 Rear Member
    Rear Member
  • 56
    518326647 Reinforcement Plate. Package-SP-T3, X-T3
    Reinforcement Plate. Package-SP-T3, X-T3
  • 57
    518326656 Seal
    Seal
  • 59
    518326728 Rear Radiator Ass'y, 146''. 146''
    Rear Radiator Ass'y, 146''. 146''
  • 59
    518326692 Rear Radiator Ass'y, 154''. 154''
    Rear Radiator Ass'y, 154''. 154''
  • 59
    518326735 Rear Radiator Ass'y, 163''. 163''
    Rear Radiator Ass'y, 163''. 163''
  • 59
    518328962 Rear Radiator 174''. 174''
    Rear Radiator 174''. 174''
  • 61
    518326795 RH Member
    RH Member
  • 62
    518326796 LH Member
    LH Member
  • 63
    518326937 RH Reinforcement. Package-BURTON, SP, X
    RH Reinforcement. Package-BURTON, SP, X
  • 63
    518327794 RH Reinforcement. Except Package-BURTON, SP, X
    RH Reinforcement. Except Package-BURTON, SP, X
  • 64
    518326938 LH Reinforcement. Package-BURTON, SP, X
    LH Reinforcement. Package-BURTON, SP, X
  • 64
    518327795 LH Reinforcement. Except Package-BURTON, SP, X
    LH Reinforcement. Except Package-BURTON, SP, X
  • 65
    518327105 Rear Cap
    Rear Cap
  • 66
    518327460 Pulley Support
    Pulley Support
  • 67
    518327145 Sub A Support
    Sub A Support
  • 70
    518327565 Front Member
    Front Member
  • 71
    518327470 RH Suspension Bracket. Package-BURTON, SP, X
    RH Suspension Bracket. Package-BURTON, SP, X
  • 71
    518328110 RH Suspension Bracket. Except Package-BURTON, SP, X
    RH Suspension Bracket. Except Package-BURTON, SP, X
  • 72
    518327471 LH Suspension Bracket. Package-BURTON, SP, X
    LH Suspension Bracket. Package-BURTON, SP, X
  • 72
    518328111 LH Suspension Bracket. Except Package-BURTON, SP, X
    LH Suspension Bracket. Except Package-BURTON, SP, X
  • 74
    518327472 RH Roller
    RH Roller
  • 74
    518327473 LH Roller
    LH Roller
  • 75
    518327487 Front Suspension Support
    Front Suspension Support
  • 79
    518327804 RH Suspension Bracket. 174''
    RH Suspension Bracket. 174''
  • 80
    518327805 LH Suspension Bracket. 174''
    LH Suspension Bracket. 174''
  • 84
    415130033 White Frame Ass'y 154''. Package-BURTON
    White Frame Ass'y 154''. Package-BURTON
  • 84
    415129923 Black Frame Ass'y 146''. 146''
    Black Frame Ass'y 146''. 146''
  • 84
    415129925 Black Frame Ass'y 154''. Package-SP 154''
    Black Frame Ass'y 154''. Package-SP 154''
  • 84
    415130036 Black Frame Ass'y 154''. Package-SP-T3 154''
    Black Frame Ass'y 154''. Package-SP-T3 154''
  • 84
    415129925 Black Frame Ass'y 154''. Package-X 154''
    Black Frame Ass'y 154''. Package-X 154''
  • 84
    415130036 Black Frame Ass'y 154''. Package-X-T3 154'' Model Black-Black
    Black Frame Ass'y 154''. Package-X-T3 154'' Model Black-Black
  • 84
    415130034 Yellow Frame Ass'y 154''. Package-X-T3 154'' Model Black-Yellow
    Yellow Frame Ass'y 154''. Package-X-T3 154'' Model Black-Yellow
  • 84
    415130056 Red Frame Ass'y 154''. Package-X-T3 154'' Model Black-Red
    Red Frame Ass'y 154''. Package-X-T3 154'' Model Black-Red
  • 84
    415129927 Black Frame Ass'y 163''. Package-SP 163''
    Black Frame Ass'y 163''. Package-SP 163''
  • 84
    415130035 Black Frame Ass'y 163''. Package-SP-T3 163''
    Black Frame Ass'y 163''. Package-SP-T3 163''
  • 84
    415130035 Black Frame Ass'y 163''. Package-X-T3 163'' Model Black-Black
    Black Frame Ass'y 163''. Package-X-T3 163'' Model Black-Black
  • 84
    415130051 Yellow Frame Ass'y 163''. Package-X-T3 163'' Model Black-Yellow
    Yellow Frame Ass'y 163''. Package-X-T3 163'' Model Black-Yellow
  • 84
    415130057 Red Frame Ass'y 163''. Package-X-T3 163'' Model Black-Red
    Red Frame Ass'y 163''. Package-X-T3 163'' Model Black-Red
  • 84
    415130053 Black Frame Ass'y 174''. Package-SP-T3 174''
    Black Frame Ass'y 174''. Package-SP-T3 174''
  • 84
    415130053 Black Frame Ass'y 174''. Package-X-T3 174'' Model Black-Black
    Black Frame Ass'y 174''. Package-X-T3 174'' Model Black-Black
  • 84
    415130052 Yellow Frame Ass'y 174''. Package-X-T3 174'' Model Black-Yellow
    Yellow Frame Ass'y 174''. Package-X-T3 174'' Model Black-Yellow
  • 84
    415130058 Red Frame Ass'y 174''. Package-X-T3 174'' Model Black-Red
    Red Frame Ass'y 174''. Package-X-T3 174'' Model Black-Red
  • 87
    518328320 Cross Member S Module
    Cross Member S Module
  • 89
    518328528 LH Stirup
    LH Stirup
  • 95
    518328940 RH Stirup
    RH Stirup
  • 98
    520000965 Black RH Cap. Package-BURTON
    Black RH Cap. Package-BURTON
  • 98
    520000964 Black LH Cap. Package-BURTON
    Black LH Cap. Package-BURTON
  • 98
    520000840 Black Cap. North America Except Package-BURTON
    Black Cap. North America Except Package-BURTON
  • 98
    520000840 Black Cap. Package-X-T3 Europe
    Black Cap. Package-X-T3 Europe
  • 98
    520000965 Black RH Cap. Package-SP Europe
    Black RH Cap. Package-SP Europe
  • 98
    520000964 Black LH Cap. Package-SP Europe
    Black LH Cap. Package-SP Europe
  • 100
    518328740 Black Rear Bumper, 154''. Package-BURTON
    Black Rear Bumper, 154''. Package-BURTON
  • 100
    518326599 Black Rear Bumper, 146''. 146'' North America
    Black Rear Bumper, 146''. 146'' North America
  • 100
    518327664 Black Rear Bumper, 146''. 146'' Package-SP Europe
    Black Rear Bumper, 146''. 146'' Package-SP Europe
  • 100
    518326599 Black Rear Bumper, 146''. 146'' Package-X Europe
    Black Rear Bumper, 146''. 146'' Package-X Europe
  • 100
    518326049 Black Rear Bumper, 154''. 154'' North America Except Package-BURTON
    Black Rear Bumper, 154''. 154'' North America Except Package-BURTON
  • 100
    518326611 Black Rear Bumper, 154''. 154'' Package-SP Europe
    Black Rear Bumper, 154''. 154'' Package-SP Europe
  • 100
    518326049 Black Rear Bumper, 154''. 154'' Package-X-T3 Europe
    Black Rear Bumper, 154''. 154'' Package-X-T3 Europe
  • 100
    518326600 Black Rear Bumper, 163''. 163'' North America
    Black Rear Bumper, 163''. 163'' North America
  • 100
    518327734 Black Rear Bumper, 163''. 163'' Package-SP Europe
    Black Rear Bumper, 163''. 163'' Package-SP Europe
  • 100
    518326600 Black Rear Bumper, 163''. 163'' Package-X-T3 Europe
    Black Rear Bumper, 163''. 163'' Package-X-T3 Europe
  • 100
    518327956 Rear Bumper, 174''. 174''
    Rear Bumper, 174''. 174''
