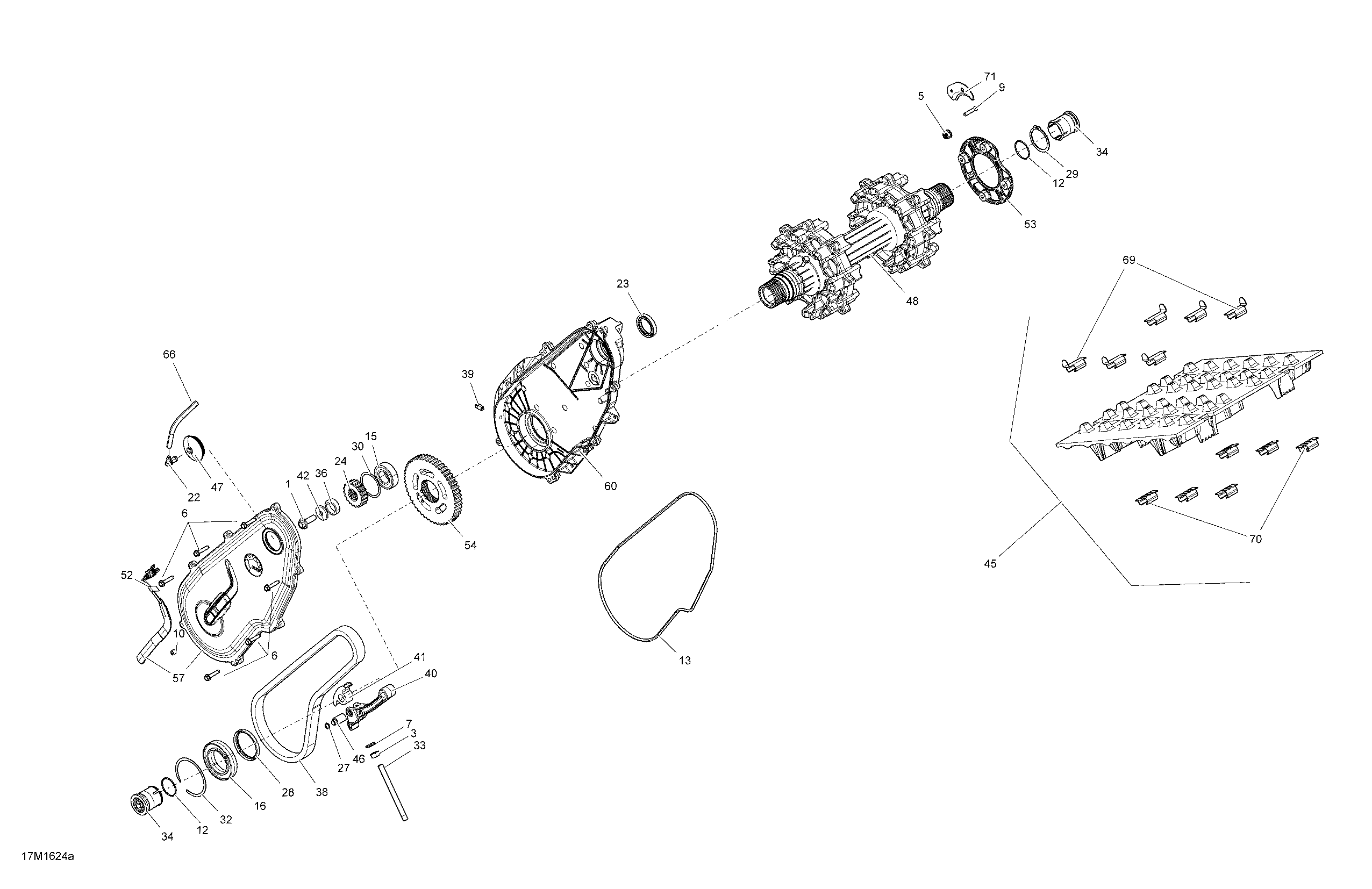

05- Drive - 800R ETEC - Burton, SP, X для BRP Ski-Doo SUMMIT 800R E-TEC - 2016

  • №
    Артикул
    Название
  • 1
    207503046 Hex. Flanged Screw M10 X 30, Scotch Grip
    Hex. Flanged Screw M10 X 30, Scotch Grip
  • 3
    232006414 Hex. Nut M10 X 1.5
    Hex. Nut M10 X 1.5
  • 5
    233281414 Hex. Flanged Elastic Nut M8 X 1.25
    Hex. Flanged Elastic Nut M8 X 1.25
  • 6
    210263050 Flanged Hex. Screw M6 X 30
    Flanged Hex. Screw M6 X 30
  • 7
    250200100 Bonded Washer
    Bonded Washer
  • 9
    250300031 Clinch Stud M6 X 30
    Clinch Stud M6 X 30
  • 12
    293300122 O-Ring
    O-Ring
  • 13
    293300130 O-Ring. Package Burton, X and SP
    O-Ring. Package Burton, X and SP
  • 15
    293350055 Ball Bearing
    Ball Bearing
  • 16
    293350059 Ball Bearing
    Ball Bearing
  • 22
    414580700 Male Connector
    Male Connector
  • 23
    415049300 Oil Seal
    Oil Seal
  • 24
    504096200 Sprocket, 21 Teeth. Package Burton EUROPE, SP 146'', SP 154'' + 163'' - EUROPE, X
    Sprocket, 21 Teeth. Package Burton EUROPE, SP 146'', SP 154'' + 163'' - EUROPE, X
  • 24
    504152030 Sprocket, 19 Teeth. Package Burton North America, SP 154'' + 163'' - EXCEPT EUROPE
    Sprocket, 19 Teeth. Package Burton North America, SP 154'' + 163'' - EXCEPT EUROPE
  • 27
    504152282 Circlip
    Circlip
  • 28
    504152571 Seal
    Seal
  • 29
    504152572 Circlip
    Circlip
  • 30
    504152576 Circlip
    Circlip
  • 32
    504152582 Circlip
    Circlip
  • 33
    504152602 Adjustment Screw
    Adjustment Screw
  • 34
    504152619 Magnetic Cap
    Magnetic Cap
  • 36
    504152628 Shim
    Shim
  • 38
    504152629 Drive Chain, 104 Links. Package Burton North America, SP 154 '' EXCEPT EUROPE, X (TCGA)
    Drive Chain, 104 Links. Package Burton North America, SP 154 '' EXCEPT EUROPE, X (TCGA)
  • 38
    504152630 Drive Chain, 106 Links. Package Burton EUROPE, SP 146'' + 163'', SP 154'' EUR, X (TCGB)
    Drive Chain, 106 Links. Package Burton EUROPE, SP 146'' + 163'', SP 154'' EUR, X (TCGB)
  • 39
    504152854 Magnetic Plug 1/8 - 27 NPTF. Package Burton, X and SP
    Magnetic Plug 1/8 - 27 NPTF. Package Burton, X and SP
  • 40
    504152685 Chain Tensioner
    Chain Tensioner
  • 41
    504152739 Slider Chain
    Slider Chain
  • 42
    504152784 Spring Washer M10
    Spring Washer M10
  • 45
    504153198 Track Ass'y 16'' X 146'' X 2.50''. Package SP 146
    Track Ass'y 16'' X 146'' X 2.50''. Package SP 146
  • 45
    504153199 Track Ass'y 16'' X 154'' X 2.50''. Package Burton, SP 154, X 154,
    Track Ass'y 16'' X 154'' X 2.50''. Package Burton, SP 154, X 154,
  • 45
    504153200 Track Ass'y 16'' X 163'' X 2.50''. Package SP 163
    Track Ass'y 16'' X 163'' X 2.50''. Package SP 163
  • 46
    504152841 Tensioner Axle
    Tensioner Axle
  • 47
    504152860 Cap
    Cap
  • 48
    504152869 Drive Axle Ass'y
    Drive Axle Ass'y
  • 52
    504152896 Rotation Sensor. Package Burton, X and SP
    Rotation Sensor. Package Burton, X and SP
  • 53
    504152949 Housing Bearing
    Housing Bearing
  • 54
    504152971 Sprocket, 51 Teeth. Package Burton, X and SP
    Sprocket, 51 Teeth. Package Burton, X and SP
  • 57
    504153151 Casting Cover
    Casting Cover
  • 57
    504153410 Chaincase Cover Ass'y. Package Burton, X and SP. Include ref# 52 - 504152896
    Chaincase Cover Ass'y. Package Burton, X and SP. Include ref# 52 - 504152896
  • 60
    504153405 Chaincase. Package Burton, X and SP
    Chaincase. Package Burton, X and SP
  • 66
    415080200 Hose, Polyurethane, iD 5.7mm
    Hose, Polyurethane, iD 5.7mm
  • 69
    415129528 Track Guide
    Track Guide
  • 70
    415129529 Cleat
    Cleat
  • 71
    504153418 Bearing Housing Ass'y
    Bearing Housing Ass'y
