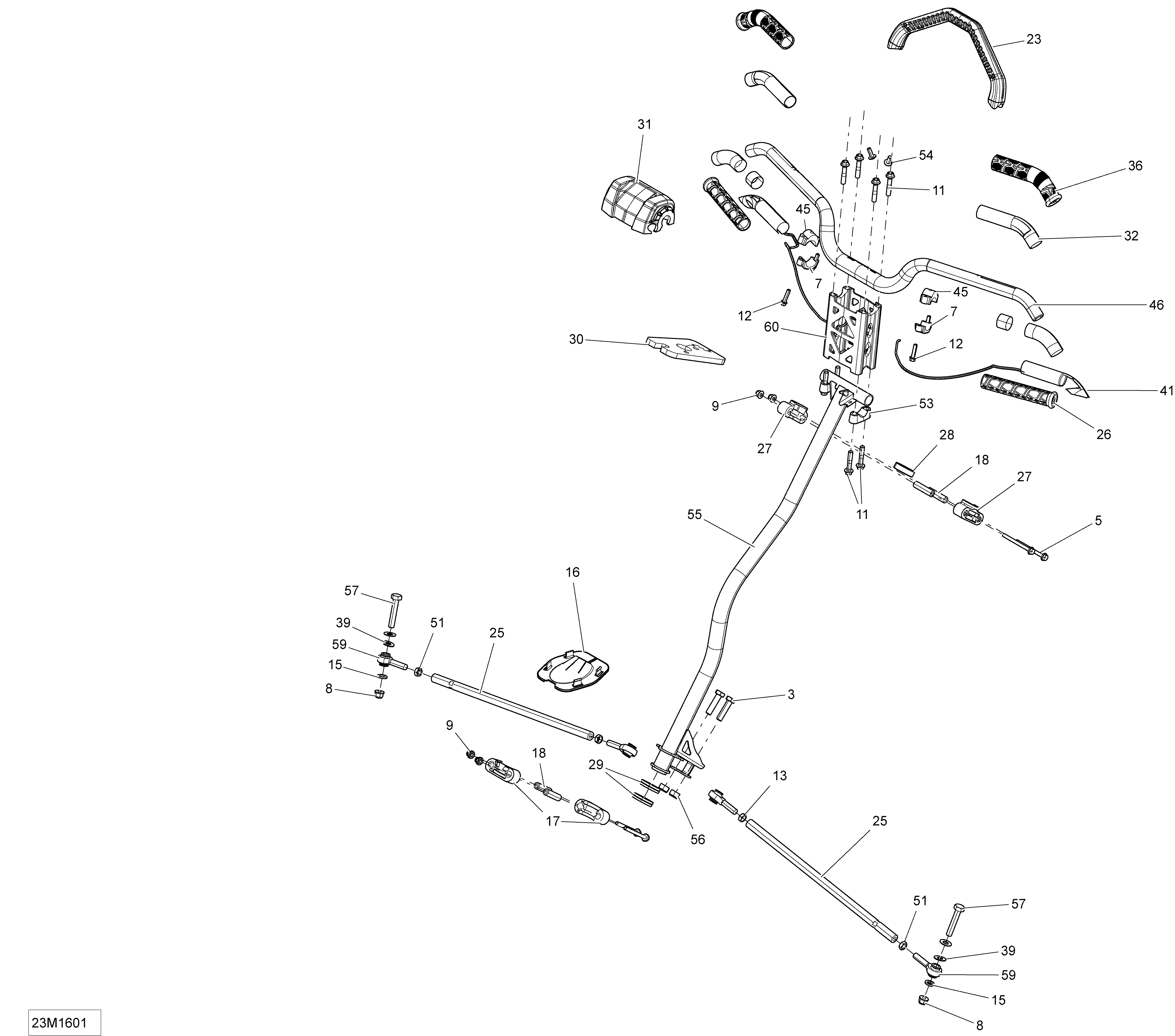

07- Steering - 800R ETEC для BRP Ski-Doo SUMMIT 800R E-TEC - 2016

  • №
    Артикул
    Название
  • 3
    207004034 Hex. Screw M10 X 1.5 X 40
    Hex. Screw M10 X 1.5 X 40
  • 5
    207667086 Hex. Flanged Screw M6 x 1.0 x 70
    Hex. Flanged Screw M6 x 1.0 x 70
  • 7
    719000049 Clamps Kit
    Clamps Kit
  • 9
    233261416 Elastic Flanged Nut M6 X 1.0
    Elastic Flanged Nut M6 X 1.0
  • 11
    250000352 Hex. Flange Screw M8 X 40
    Hex. Flange Screw M8 X 40
  • 12
    250000447 Hex Flanged Screw M6 X 25
    Hex Flanged Screw M6 X 25
  • 13
    250100016 LH Hex. Jam Nut M10
    LH Hex. Jam Nut M10
  • 15
    503192496 Washer
    Washer
  • 16
    506152163 Plate
    Plate
  • 17
    506152588 Lower Half-Housing
    Lower Half-Housing
  • 18
    506152297 Housing Bushing
    Housing Bushing
  • 23
    506152460 Moulding Strap
    Moulding Strap
  • 25
    506152482 Tie-Rod
    Tie-Rod
  • 26
    506152486 Grip
    Grip
  • 27
    506152508 Upper Half-Housing
    Upper Half-Housing
  • 28
    506152509 Upper Anti-Vibration Gasket
    Upper Anti-Vibration Gasket
  • 29
    506152518 Lower Vibration Ring
    Lower Vibration Ring
  • 31
    506152541 Steering Pad, Deep Black
    Steering Pad, Deep Black
  • 32
    506152548 Isolant
    Isolant
  • 36
    506152560 Grip 148mm
    Grip 148mm
  • 39
    506152194 Washer
    Washer
  • 41
    506152665 Heating Element 32 WATT
    Heating Element 32 WATT
  • 45
    506152703 Black Support Plate
    Black Support Plate
  • 46
    506152708 Clear Handle Bar. Package X
    Clear Handle Bar. Package X
  • 46
    506152709 Handle Bar, Non Dyed Clear Anodizing. Package Burton, SP, Sport
    Handle Bar, Non Dyed Clear Anodizing. Package Burton, SP, Sport
  • 46
    506152802 Manta Green Handle Bar. Package X-T3 - Black-Red Models 163'' + 174''
    Manta Green Handle Bar. Package X-T3 - Black-Red Models 163'' + 174''
  • 51
    732610010 RH Hex. Jam Nut M10
    RH Hex. Jam Nut M10
  • 53
    506152751 Steering Support
    Steering Support
  • 54
    250000779 Torx Screw M6 X 1.0 X 18, Scotch Grip
    Torx Screw M6 X 1.0 X 18, Scotch Grip
  • 55
    506152839 Tube Main Weld
    Tube Main Weld
  • 56
    233601466 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 57
    207005554 Hex Screw M10 X 1.5 X 55
    Hex Screw M10 X 1.5 X 55
  • 58
    506152081 LH Thread Ball Joint
    LH Thread Ball Joint
  • 59
    506152684 RH Thread Ball Joint
    RH Thread Ball Joint
  • 60
    506152569 Steering Extension. Package Burton, SP, SP-T3 Except Red/Red Models
    Steering Extension. Package Burton, SP, SP-T3 Except Red/Red Models
  • 60
    506152757 White Handlebar Extension. Package SP + SP-T3, Red on Red Models
    White Handlebar Extension. Package SP + SP-T3, Red on Red Models
  • 60
    506152806 Handlebar Extension. Package X, X-T3
    Handlebar Extension. Package X, X-T3
