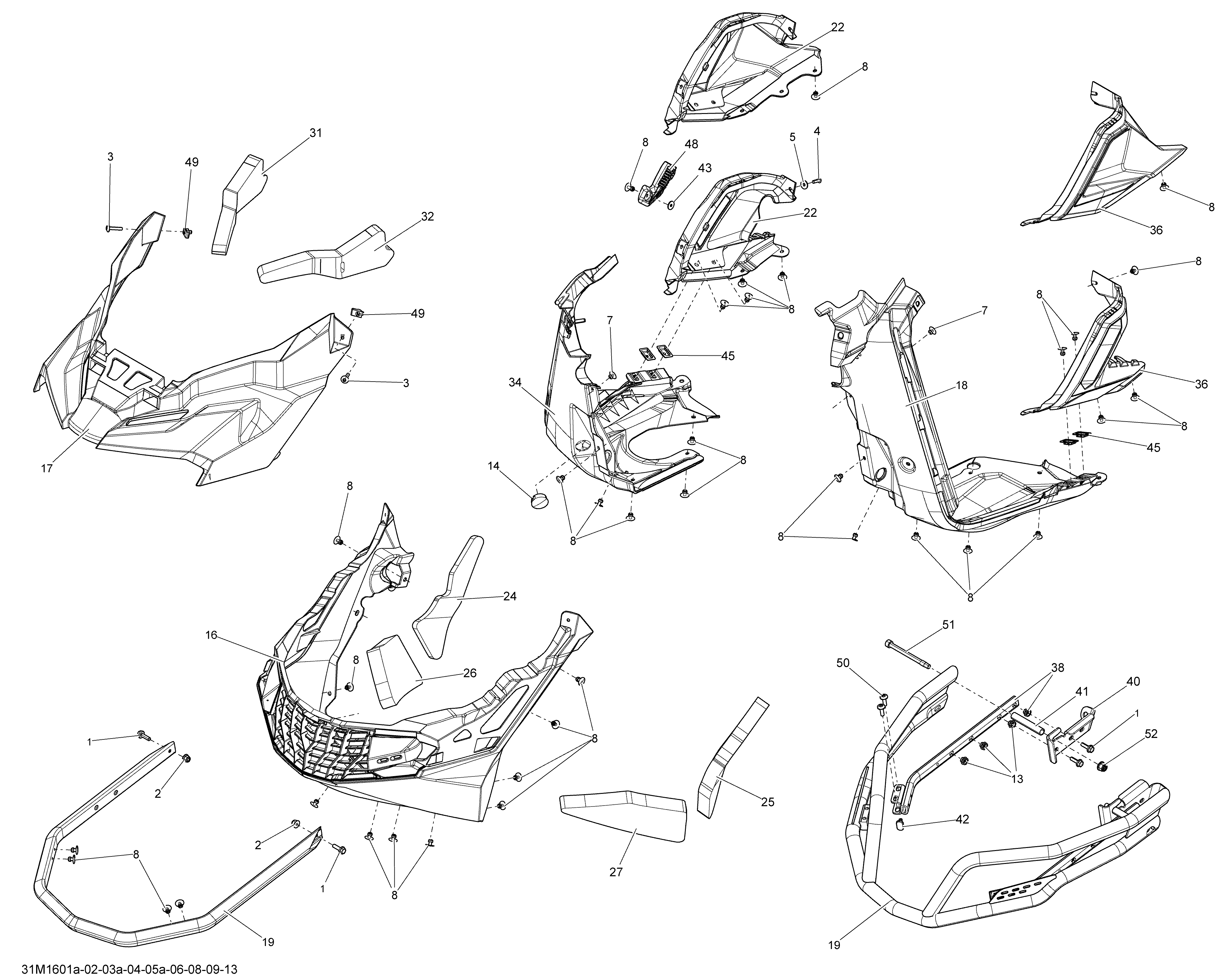

09- Bottom Pan - 800R ETEC для BRP Ski-Doo SUMMIT 800R E-TEC - 2016

  • №
    Артикул
    Название
  • 1
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 2
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 3
    250000587 Torx Screw M5 X 26
    Torx Screw M5 X 26
  • 4
    250000652 Socket Screw M5 X .80 X 16
    Socket Screw M5 X .80 X 16
  • 5
    250200025 Washer M5
    Washer M5
  • 7
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 8
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 14
    414916600 Black Nylon Cap
    Black Nylon Cap
  • 16
    502007172 Black Front Bottom Pan
    Black Front Bottom Pan
  • 16
    502007374 White Front Bottom Pan
    White Front Bottom Pan
  • 16
    502007396 Yellow Front Bottom Pan
    Yellow Front Bottom Pan
  • 16
    502007516 Red Front Bottom Pan
    Red Front Bottom Pan
  • 17
    502007173 Black Bottom Pan Cap
    Black Bottom Pan Cap
  • 17
    502007397 Yellow Bottom Pan Cap
    Yellow Bottom Pan Cap
  • 17
    502007517 Red Bottom Pan Cap
    Red Bottom Pan Cap
  • 17
    502007518 White Bottom Pan Cap
    White Bottom Pan Cap
  • 18
    502007175 Black LH Bottom Pan
    Black LH Bottom Pan
  • 19
    502007176 Black Front Bumper
    Black Front Bumper
  • 22
    502007306 Black - RH Side Bottom Pan Panel
    Black - RH Side Bottom Pan Panel
  • 22
    502007335 White RH Side Bottom Pan Panel
    White RH Side Bottom Pan Panel
  • 22
    502007514 Manta Green RH Side Bottom Pan Panel
    Manta Green RH Side Bottom Pan Panel
  • 24
    502007243 RH Bottom Pan Upper Foam
    RH Bottom Pan Upper Foam
  • 25
    502007244 LH Bottom Pan Upper Foam
    LH Bottom Pan Upper Foam
  • 26
    502007245 RH Bottom Pan Lower Foam
    RH Bottom Pan Lower Foam
  • 27
    502007246 LH Bottom Pan Lower Foam
    LH Bottom Pan Lower Foam
  • 31
    502007263 RH Bottom Pan Cap Foam
    RH Bottom Pan Cap Foam
  • 32
    502007264 LH Bottom Pan Cap Foam
    LH Bottom Pan Cap Foam
  • 34
    502007340 Black RH Bottom Pan
    Black RH Bottom Pan
  • 36
    502007304 Black - LH Side Bottom Pan Panel
    Black - LH Side Bottom Pan Panel
  • 36
    502007336 White LH Side Bottom Pan Panel
    White LH Side Bottom Pan Panel
  • 36
    502007515 Manta Green LH Side Bottom Pan Panel
    Manta Green LH Side Bottom Pan Panel
  • 43
    517124300 Washer
    Washer
  • 45
    517305109 Rivet Plate
    Rivet Plate
  • 48
    517305280 Stopper Bumper
    Stopper Bumper
  • 49
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
