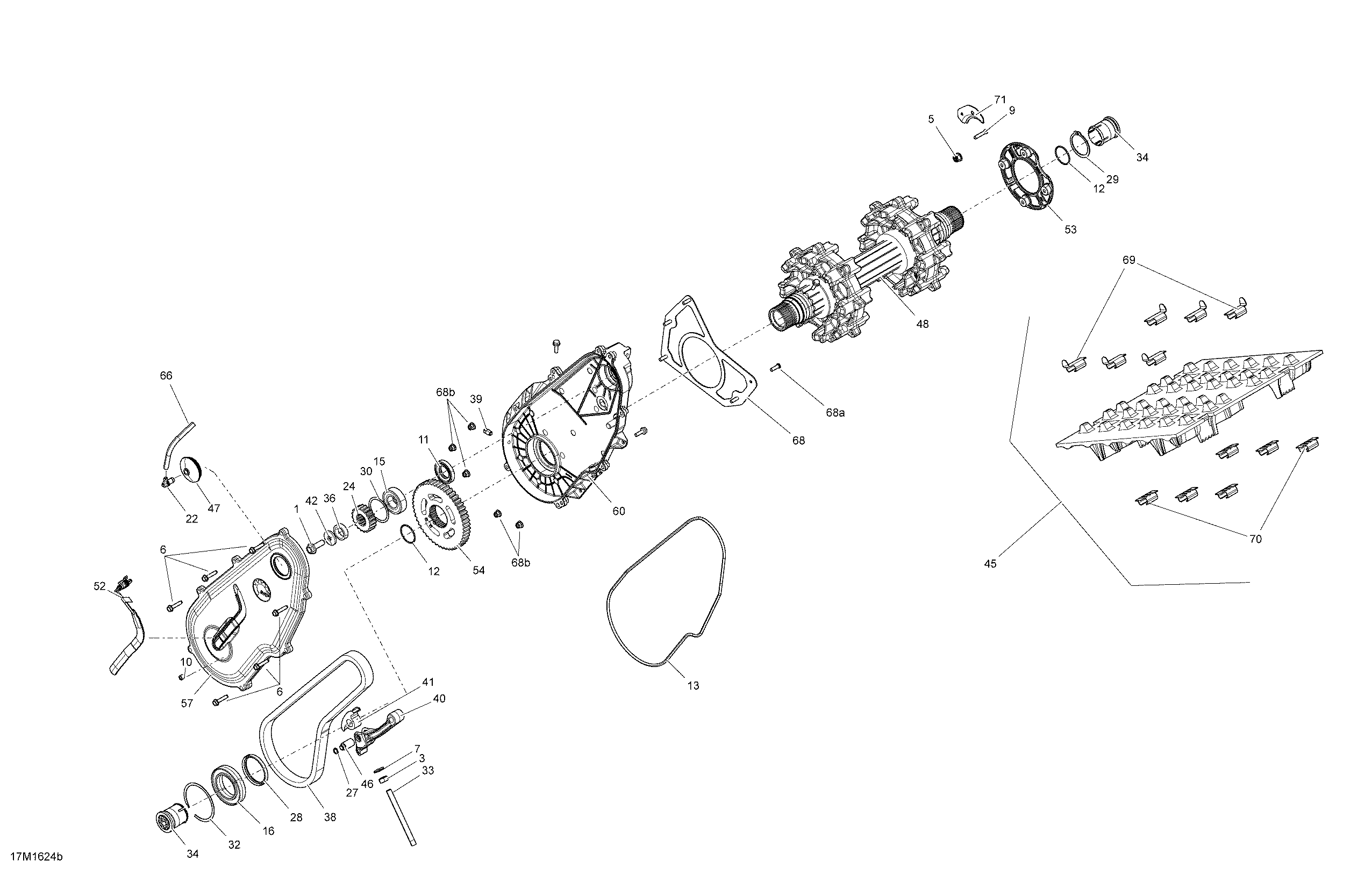

05- Drive - 800R ETEC - SP T3, X T3 для BRP Ski-Doo SUMMIT 800R E-TEC - 2016

  • №
    Артикул
    Название
  • 1
    207503046 Hex. Flanged Screw M10 X 30, Scotch Grip
    Hex. Flanged Screw M10 X 30, Scotch Grip
  • 3
    232006414 Hex. Nut M10 X 1.5
    Hex. Nut M10 X 1.5
  • 5
    233281414 Hex. Flanged Elastic Nut M8 X 1.25
    Hex. Flanged Elastic Nut M8 X 1.25
  • 6
    210263050 Flanged Hex. Screw M6 X 30
    Flanged Hex. Screw M6 X 30
  • 7
    250200100 Bonded Washer
    Bonded Washer
  • 9
    250300031 Clinch Stud M6 X 30
    Clinch Stud M6 X 30
  • 10
    250500012 Allen Drive Plug 1/8-27 PTF
    Allen Drive Plug 1/8-27 PTF
  • 11
    415049300 Oil Seal
    Oil Seal
  • 12
    293300122 O-Ring
    O-Ring
  • 13
    293300177 Tight Seal
    Tight Seal
  • 15
    293350055 Ball Bearing
    Ball Bearing
  • 16
    293350059 Ball Bearing
    Ball Bearing
  • 22
    414580700 Male Connector
    Male Connector
  • 23
    415049300 Oil Seal
    Oil Seal
  • 24
    504091000 Sprocket, 23 Teeth. Package X-T3 154'' + 163''
    Sprocket, 23 Teeth. Package X-T3 154'' + 163''
  • 24
    504153783 Sprocket, 19 Teeth. Package SP-T3 174'', X-T3 174''
    Sprocket, 19 Teeth. Package SP-T3 174'', X-T3 174''
  • 27
    504152282 Circlip
    Circlip
  • 28
    504152571 Seal
    Seal
  • 29
    504152572 Circlip
    Circlip
  • 30
    504152576 Circlip
    Circlip
  • 32
    504152582 Circlip
    Circlip
  • 33
    504152602 Adjustment Screw
    Adjustment Screw
  • 34
    504152619 Magnetic Cap
    Magnetic Cap
  • 36
    504152628 Shim
    Shim
  • 38
    504153266 Drive Chain, 110 Links. Package SP-T3 154'' + 174'', X-T3 154'' EXCEPT (TKGC, TKGF, TKGM), X-T3 174''
    Drive Chain, 110 Links. Package SP-T3 154'' + 174'', X-T3 154'' EXCEPT (TKGC, TKGF, TKGM), X-T3 174''
  • 38
    504153268 Drive Chain, 112 Links. Package SP-T3 163'', X-T3 163'' + 154'' (TKGC, TKGF, TKGM)
    Drive Chain, 112 Links. Package SP-T3 163'', X-T3 163'' + 154'' (TKGC, TKGF, TKGM)
  • 40
    504152685 Chain Tensioner
    Chain Tensioner
  • 41
    504152739 Slider Chain
    Slider Chain
  • 42
    504152784 Spring Washer M10
    Spring Washer M10
  • 45
    504153224 Track Ass'y T3 16'' X 163'' X 3.00''. Package SP-T3 and X-T3 163
    Track Ass'y T3 16'' X 163'' X 3.00''. Package SP-T3 and X-T3 163
  • 45
    504153234 Track Ass'y T4 16'' X 174'' X 3.00''. Package SP-T3 and X-T3 174
    Track Ass'y T4 16'' X 174'' X 3.00''. Package SP-T3 and X-T3 174
  • 45
    504153349 Track Ass'y 16 X 153 X 3.00 Pitch 3''. Package SP-T3 and X-T3 154
    Track Ass'y 16 X 153 X 3.00 Pitch 3''. Package SP-T3 and X-T3 154
  • 46
    504152841 Tensioner Axle
    Tensioner Axle
  • 47
    504152860 Cap
    Cap
  • 48
    504153302 Drive Axle Ass'y
    Drive Axle Ass'y
  • 52
    504153275 Rotation Sensor. P-X-T3_P-SP-T3
    Rotation Sensor. P-X-T3_P-SP-T3
  • 53
    504152949 Housing Bearing
    Housing Bearing
  • 54
    504153227 Sprocket, 51 Teeth. Package SP-T3 163'', X-T3 163''
    Sprocket, 51 Teeth. Package SP-T3 163'', X-T3 163''
  • 54
    504153267 Sprocket, 49 Teeth. Package SP-T3 154'' + 174'', X-T3 154'' + 174''
    Sprocket, 49 Teeth. Package SP-T3 154'' + 174'', X-T3 154'' + 174''
  • 57
    504153151 Casting Cover
    Casting Cover
  • 57
    504153415 Chaincase Cover Ass'y. P-X-T3_P-SP-T3. Include ref# 52 504153275
    Chaincase Cover Ass'y. P-X-T3_P-SP-T3. Include ref# 52 504153275
  • 60
    504153408 Chaincase. P-X-T3_P-SP-T3
    Chaincase. P-X-T3_P-SP-T3
  • 66
    415080200 Hose, Polyurethane, iD 5.7mm
    Hose, Polyurethane, iD 5.7mm
  • 68
    504153351 Plate. P-X-T3_P-SP-T3
    Plate. P-X-T3_P-SP-T3
  • 68a
    250300027 Clinch Stud M6 X 20
    Clinch Stud M6 X 20
  • 68b
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 69
    415129528 Track Guide
    Track Guide
  • 70
    415129529 Cleat
    Cleat
  • 71
    504153418 Bearing Housing Ass'y
    Bearing Housing Ass'y
