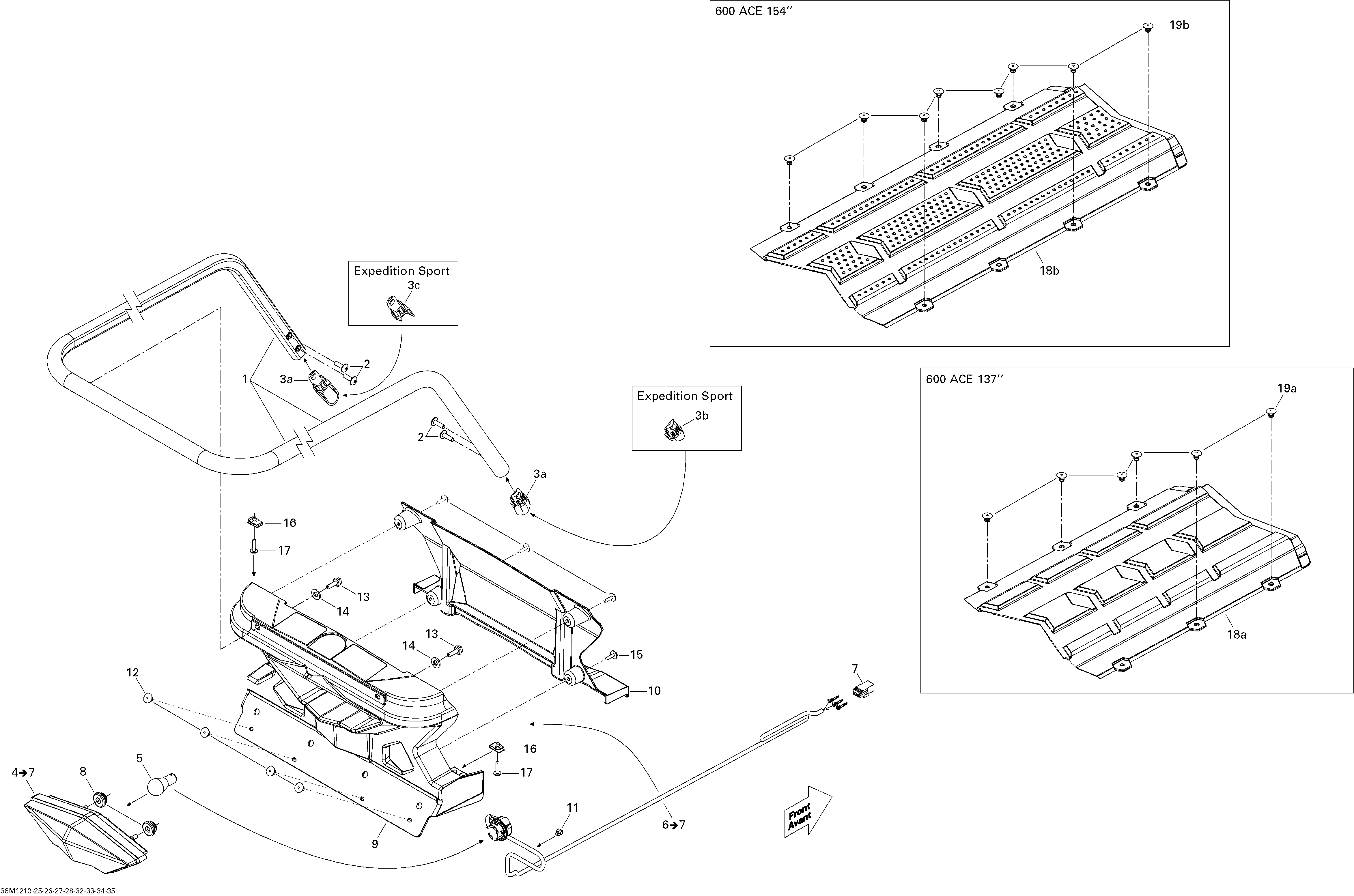

09- Luggage Rack LT для BRP Ski-Doo Tundra STD & Sport & LT 550F XP-LTS - 2012

  • №
    Артикул
    Название
  • 1
    511000706 Luggage Rack
    Luggage Rack
  • 2
    250000420 Socket Head Screw M6 X 20
    Socket Head Screw M6 X 20
  • 3a
    520000899 Cap
    Cap
  • 4
    520000679 Rear Light Ass'y. Includes 4 to 7
    Rear Light Ass'y. Includes 4 to 7
  • 5
    520000758 Bulb
    Bulb
  • 6
    520000680 Wiring Harness Ass'y. Includes 6 to 8
    Wiring Harness Ass'y. Includes 6 to 8
  • 7
    515175494 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 8
    705003666 Rubber Grommet
    Rubber Grommet
  • 9
    511000625 Rear Light Support
    Rear Light Support
  • 10
    511000701 Rear Cover Support
    Rear Cover Support
  • 11
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 12
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 13
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 14
    391302000 Flat Washer
    Flat Washer
  • 15
    250000113 Screw M4 X 16, Type K-40
    Screw M4 X 16, Type K-40
  • 16
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 17
    250000130 Torx Screw M5 X 20
    Torx Screw M5 X 20
