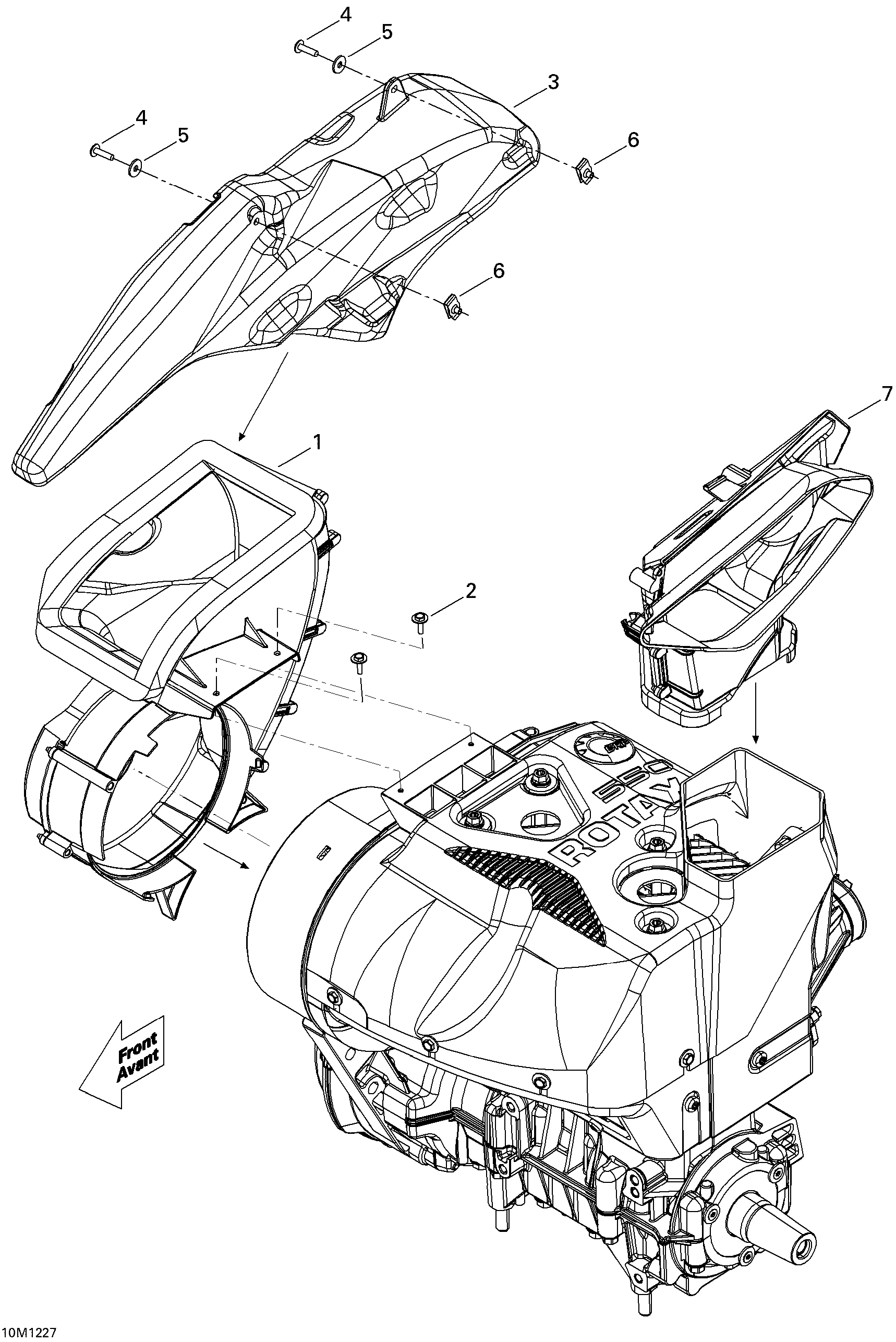

01- Cooling System для BRP Ski-Doo Tundra STD & Sport & LT 550F XP-LTS - 2012

  • №
    Артикул
    Название
  • 1
    509000840 Inlet Duct
    Inlet Duct
  • 2
    250000377 Plastite Screw Type K-40 M4 X 16
    Plastite Screw Type K-40 M4 X 16
  • 3
    509000543 Air Chamber Ass'y
    Air Chamber Ass'y
  • 4
    250000130 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 5
    391301600 Washer
    Washer
  • 6
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 7
    509000540 Outlet Duct Ass.
    Outlet Duct Ass.
