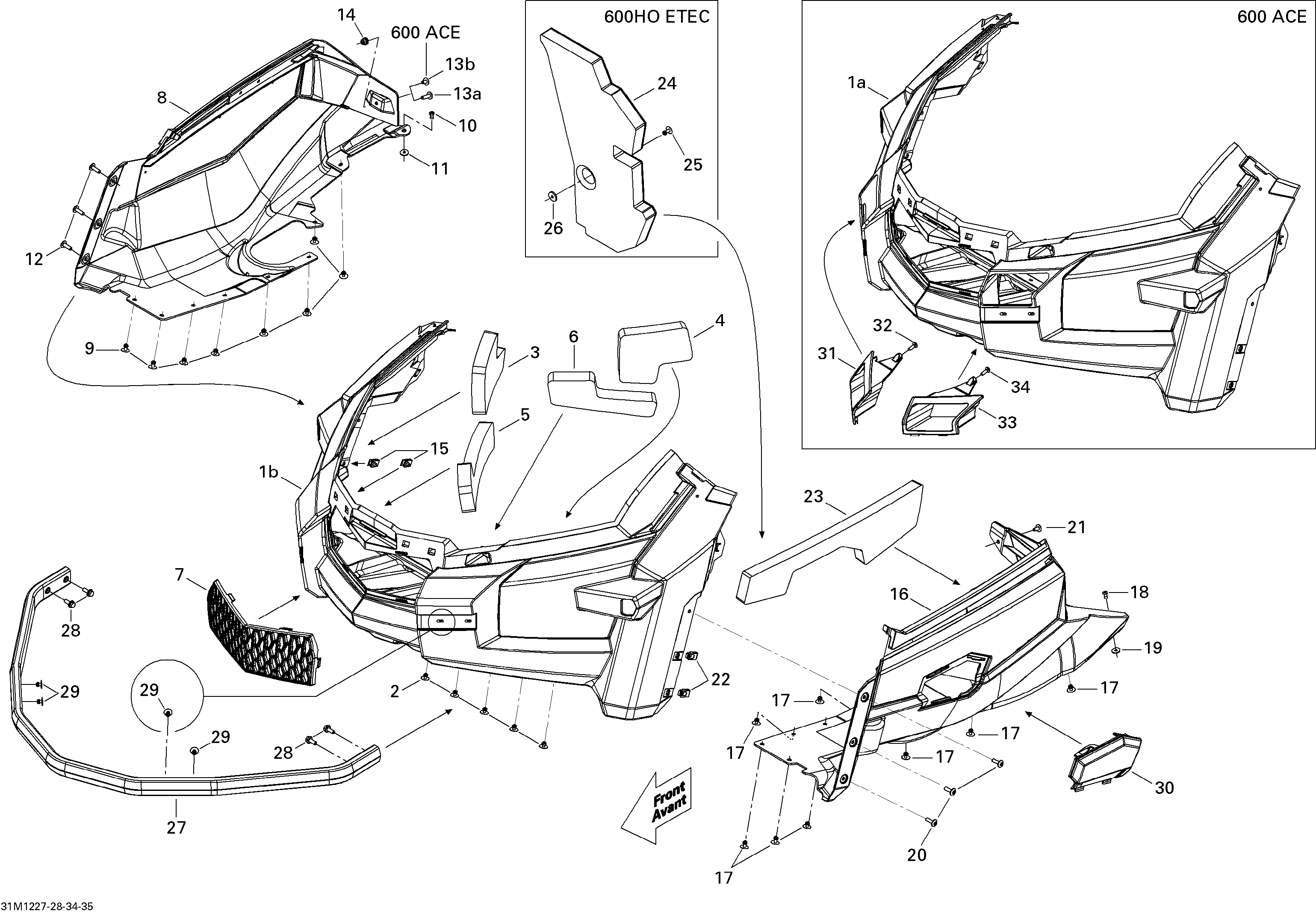

09- Bottom Pan для BRP Ski-Doo Tundra STD & Sport & LT 550F XP-LTS - 2012
-
№АртикулНазвание
-
1b502007149 Front Bottom PanFront Bottom Pan
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3502007204 RH Upper Bottom Pan FoamRH Upper Bottom Pan Foam
-
4502007205 LH Upper Bottom Pan FoamLH Upper Bottom Pan Foam
-
5502007206 RH Lower Bottom Pan FoamRH Lower Bottom Pan Foam
-
6502007207 LH Lower Bottom Pan FoamLH Lower Bottom Pan Foam
-
7502006887 Botton Pan GrillBotton Pan Grill
-
8502006965 RH Bottom PanRH Bottom Pan
-
9293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
11517124300 WasherWasher
-
12250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13a250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
14415107300 InsertInsert
-
15250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
16502006966 LH Bottom PanLH Bottom Pan
-
17293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
19517124300 WasherWasher
-
20250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
21250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
22250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
23502007208 LH Bottom Pan FoamLH Bottom Pan Foam
-
27502006963 Anodized- Front BumperAnodized- Front Bumper
-
28207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
29293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
30502006970 Bottom Pan DoorBottom Pan Door
