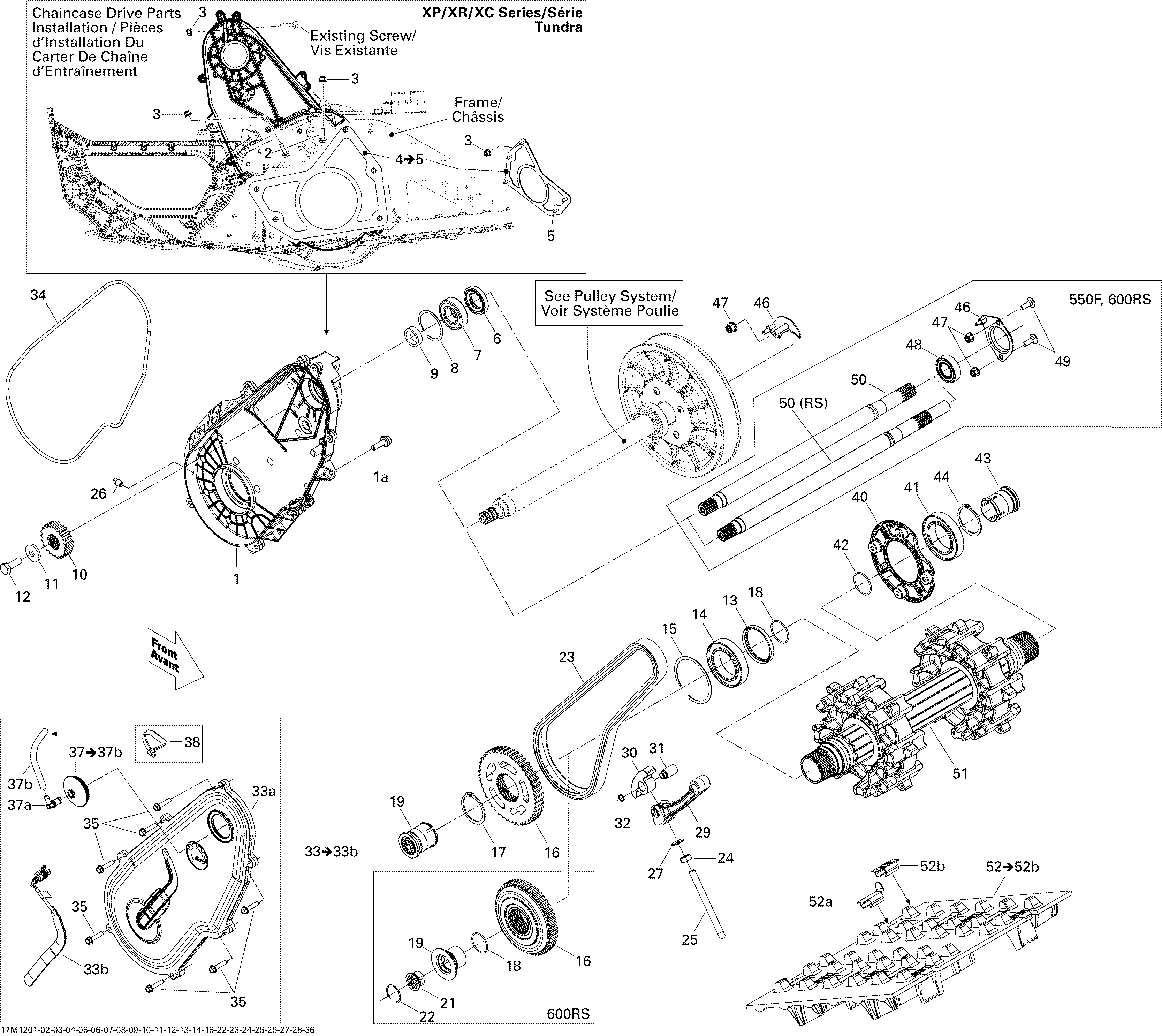

05- Drive System для BRP Ski-Doo Tundra STD & Sport & LT 550F XP-LTS - 2012

  • №
    Артикул
    Название
  • 1
    504152914 Chaincase
    Chaincase
  • 2
    207662034 Hex. Flanged Screw
    Hex. Flanged Screw
  • 3
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 4
    518325816 Plate. Includes 4 to 5
    Plate. Includes 4 to 5
  • 6
    293250175 Oil Seal
    Oil Seal
  • 7
    293350055 Ball Bearing
    Ball Bearing
  • 8
    504152576 Circlip
    Circlip
  • 9
    504152628 Shim
    Shim
  • 10
    504152031 Sprocket, 19 Teeth. 19 Teeth
    Sprocket, 19 Teeth. 19 Teeth
  • 11
    504152784 Spring Washer M10
    Spring Washer M10
  • 12
    207103044 Hex. Screw M10 X 30
    Hex. Screw M10 X 30
  • 13
    504152571 Seal
    Seal
  • 14
    293350059 Ball Bearing
    Ball Bearing
  • 15
    504152582 Circlip
    Circlip
  • 16
    504152593 Sprocket, 45 Teeth. 45 Teeth
    Sprocket, 45 Teeth. 45 Teeth
  • 17
    504152572 Circlip
    Circlip
  • 18
    293300122 O-Ring
    O-Ring
  • 19
    504152619 Magnetic Cap
    Magnetic Cap
  • 23
    504152579 Drive Chain, 102 Links. 102 Chain Link
    Drive Chain, 102 Links. 102 Chain Link
  • 24
    232006414 Hex. Nut M10
    Hex. Nut M10
  • 25
    504152602 Adjustment Screw
    Adjustment Screw
  • 26
    504152636 Magnetic Plug
    Magnetic Plug
  • 27
    250200100 Bonded Washer
    Bonded Washer
  • 29
    504152685 Chain Tensioner
    Chain Tensioner
  • 30
    504153031 Slider Chain Ass'y
    Slider Chain Ass'y
  • 31
    504152841 Tensionner Axle
    Tensionner Axle
  • 32
    504152282 Circlip
    Circlip
  • 33
    504152916 Chaincase Cover Ass'y. Includes 33 to 33b
    Chaincase Cover Ass'y. Includes 33 to 33b
  • 34
    293300130 O-Ring
    O-Ring
  • 35
    250000360 Flanged Hex. Screw M6 X 30
    Flanged Hex. Screw M6 X 30
  • 37
    504152860 Cap. Not Included 37a: 414580700, 37b 415080200
    Cap. Not Included 37a: 414580700, 37b 415080200
  • 40
    504152949 Housing Bearing
    Housing Bearing
  • 41
    293350059 Ball Bearing
    Ball Bearing
  • 42
    293300122 O-Ring
    O-Ring
  • 43
    504152619 Magnetic Cap
    Magnetic Cap
  • 44
    504152572 Circlip
    Circlip
  • 46
    504153089 Bearing Housing Ass'y
    Bearing Housing Ass'y
  • 47
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 48
    293350074 Ball Bearing
    Ball Bearing
  • 49
    207783044 Carriage Bolt M8 X 30
    Carriage Bolt M8 X 30
  • 50
    504153000 Countershaft
    Countershaft
  • 51
    504153083 Drive Axle Ass'y
    Drive Axle Ass'y
  • 52
    504152838 Track Ass'y, 15X137X1.2L. Includes 52 to 52b, STD
    Track Ass'y, 15X137X1.2L. Includes 52 to 52b, STD
  • 52
    504152907 Track Ass'y, 16X137X1.2L. Includes 52 to 52b, Sport
    Track Ass'y, 16X137X1.2L. Includes 52 to 52b, Sport
  • 52
    504152761 Track Ass'y, 16X154X1.5. Includes 52 to 52b, LT
    Track Ass'y, 16X154X1.5. Includes 52 to 52b, LT
  • 33a
    504152917 Chaincase Cover
    Chaincase Cover
  • 33b
    504152896 Sensor
    Sensor
  • 37a
    414580700 Male Connector
    Male Connector
  • 37b
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 52a
    415129528 Track Guide. STD, Sport
    Track Guide. STD, Sport
  • 52a
    415129222 Cleat. LT
    Cleat. LT
  • 52b
    504152651 Cleat. STD, Sport
    Cleat. STD, Sport
  • 52b
    504152652 Cleat. LT
    Cleat. LT
