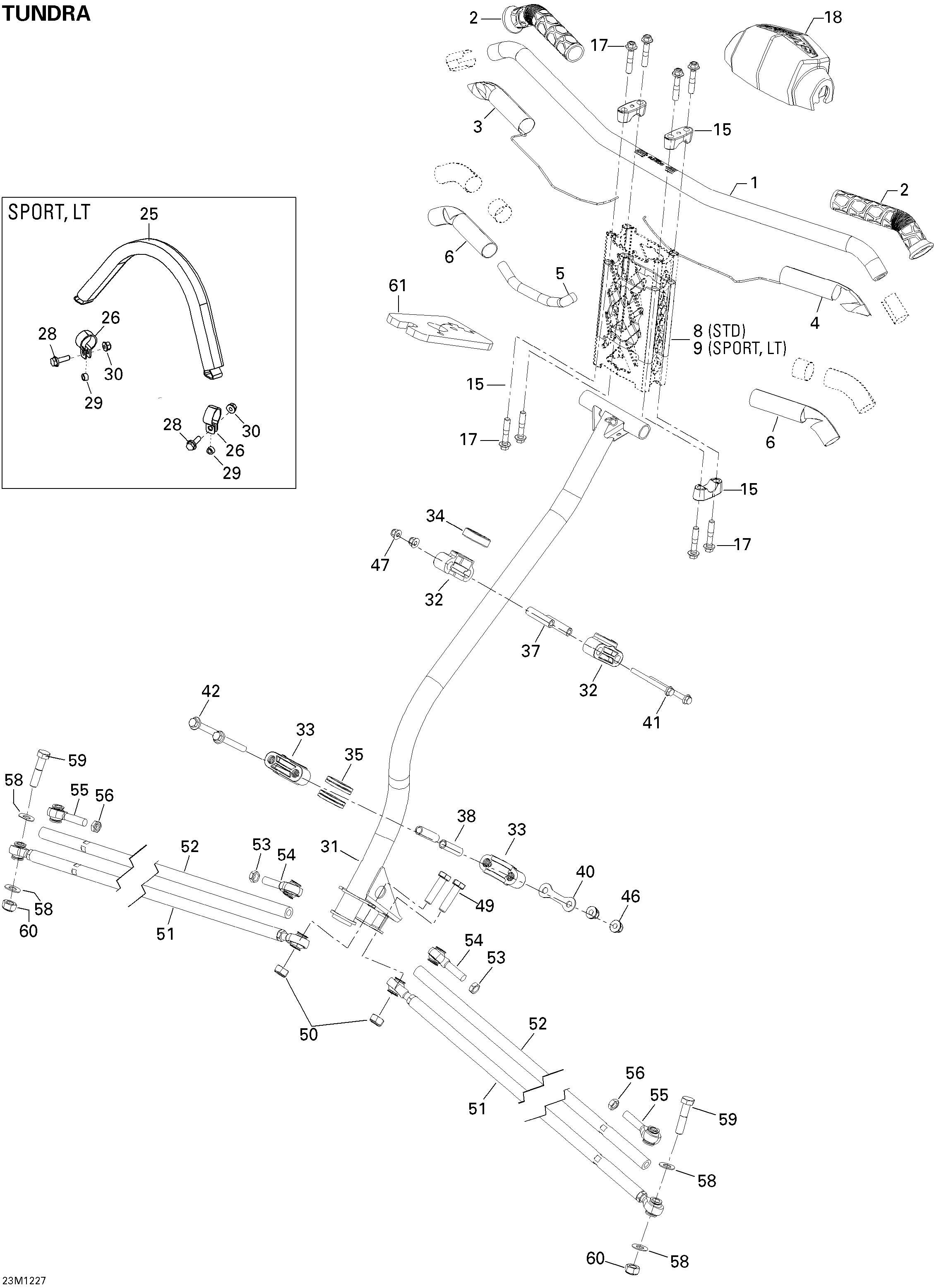

07- Steering для BRP Ski-Doo Tundra STD & Sport & LT 550F XP-LTS - 2012

  • №
    Артикул
    Название
  • 1
    506152362 Handle Bar
    Handle Bar
  • 2
    506152226 Grip
    Grip
  • 3
    506152484 Heating Element 20W
    Heating Element 20W
  • 4
    506152516 Heating Element 20W
    Heating Element 20W
  • 5
    515175830 Low Temperature Tubing 1/2''
    Low Temperature Tubing 1/2''
  • 6
    506152360 Insulant
    Insulant
  • 8
    860200268 Handlebar Extension Kit. STD
    Handlebar Extension Kit. STD
  • 9
    860200269 Handlebar Extension. SPORT, LT
    Handlebar Extension. SPORT, LT
  • 15
    506152395 Steering Support
    Steering Support
  • 17
    250000352 Hex. Flange Screw M8 X 40
    Hex. Flange Screw M8 X 40
  • 18
    506152192 Steering Pad
    Steering Pad
  • 25
    506152115 Strap Ass'y. SPORT, LT
    Strap Ass'y. SPORT, LT
  • 26
    506152536 Painted Support Plate. SPORT, LT
    Painted Support Plate. SPORT, LT
  • 28
    207662084 Hex. Flanged Screw M6 X 20. SPORT, LT
    Hex. Flanged Screw M6 X 20. SPORT, LT
  • 29
    506152156 Bushing. SPORT, LT
    Bushing. SPORT, LT
  • 30
    233261494 Hex. Elastic Flanged Nut M6. SPORT, LT
    Hex. Elastic Flanged Nut M6. SPORT, LT
  • 31
    506152473 Main Tube
    Main Tube
  • 32
    506152508 Upper Half-Housing
    Upper Half-Housing
  • 33
    506152217 Lower Half-Housing
    Lower Half-Housing
  • 34
    506152509 Upper Anti-Vibration Gasket
    Upper Anti-Vibration Gasket
  • 35
    506152518 Lower Vibration Ring
    Lower Vibration Ring
  • 37
    506152297 Housing Bushing
    Housing Bushing
  • 38
    506152388 Lower Housing Bushing
    Lower Housing Bushing
  • 40
    506152389 Stopper Plate
    Stopper Plate
  • 41
    207667086 Hex. Flanged Screw M6 x 70
    Hex. Flanged Screw M6 x 70
  • 42
    207686534 Hex. Flanged Screw M8 x 65
    Hex. Flanged Screw M8 x 65
  • 46
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 47
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 49
    207004034 Hex. Screw M10 X 40
    Hex. Screw M10 X 40
  • 50
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 52
    506152377 Tie Rod
    Tie Rod
  • 53
    506152081 LH Thread Ball Joint
    LH Thread Ball Joint
  • 54
    250100016 LH Hex. Jam Nut M10
    LH Hex. Jam Nut M10
  • 55
    506152019 RH Thread Ball Joint
    RH Thread Ball Joint
  • 56
    732610010 RH Hex. Jam Nut M10
    RH Hex. Jam Nut M10
  • 58
    506152194 Washer
    Washer
  • 59
    207004544 Hex. Screw M10 X 45
    Hex. Screw M10 X 45
  • 60
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 61
    506152521 Cushion
    Cushion
