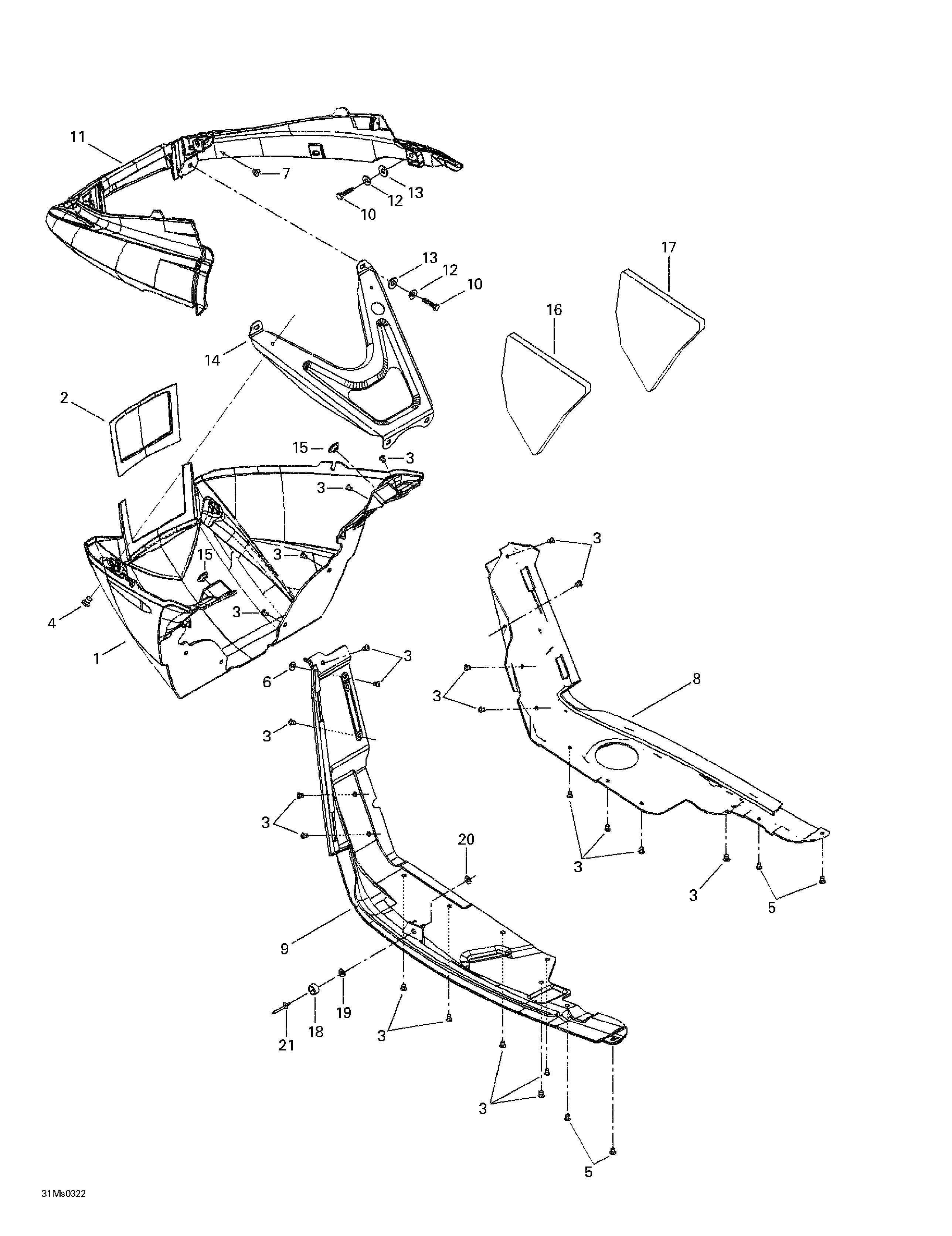

09- Bottom Pan для BRP Ski-Doo Summit X 800 HO - 2003
-
№АртикулНазвание
-
1502006681 Front bottom panFront bottom pan
-
2502006687 Bottom pan grillBottom pan grill
-
3293150104 Pop rivet 3/16''Pop rivet 3/16''
-
4293150108 Pop rivet 3/16''Pop rivet 3/16''
-
5293150103 Pop rivet 3/16''Pop rivet 3/16''
-
6517124300 WasherWasher
-
7293100003 Nut M6Nut M6
-
8502006606 R.h. bottom panR.h. bottom pan
-
9502006678 L.h. bottom panL.h. bottom pan
-
10207161444 Hex screw M6 x 14Hex screw M6 x 14
-
11502006679 BumperBumper
-
12234161471 Lock washer M6Lock washer M6
-
13224061121 Flat washerFlat washer
-
14502006682 SupportSupport
-
15414916600 Nylon plugNylon plug
-
16502006683 L.h. foamL.h. foam
-
17502006684 R.h. foamR.h. foam
-
18415018100 Rubber stopperRubber stopper
-
19250200024 Rubber washer M5Rubber washer M5
-
20293150007 WasherWasher
-
21390401600 Pop rivet 1/8''Pop rivet 1/8''
