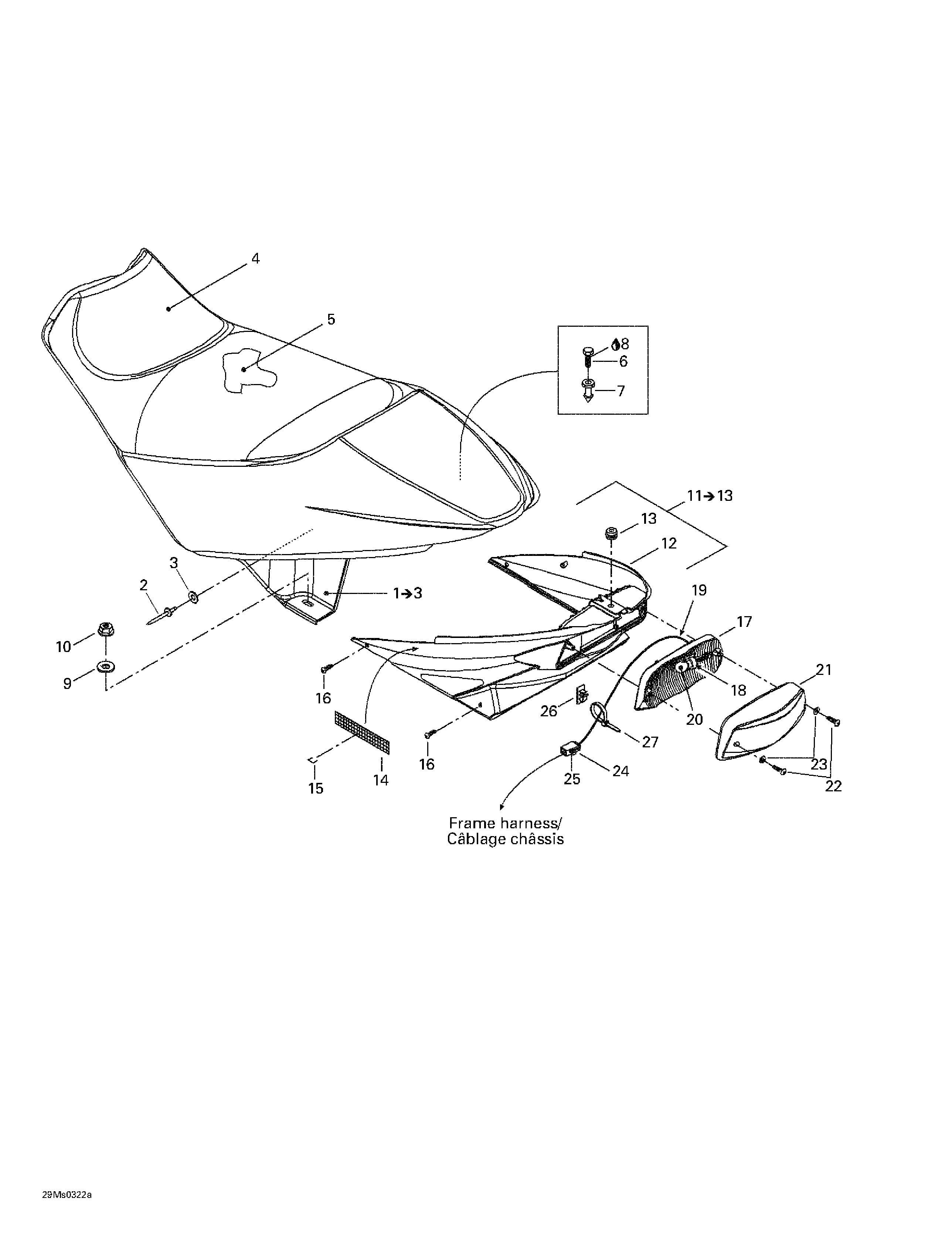

09- Seat для BRP Ski-Doo Summit X 800 HO - 2003
-
№АртикулНазвание
-
1510004164 Seat base ass'y. Includes 1 - 3.Seat base ass'y. Includes 1 - 3.
-
2390409600 Pop rivet 3/16''Pop rivet 3/16''
-
3517225900 Flat washerFlat washer
-
4510004166 Seat coverSeat cover
-
5510004210 Seat foamSeat foam
-
6207151444 Hex screw M5 x 14Hex screw M5 x 14
-
7517302719 KnobKnob
-
8293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
9234082410 Flat washer M8Flat washer M8
-
10232581414 Hex elastic nut M8Hex elastic nut M8
-
11510004258 Trunk ass'y. Includes 11 - 13.Trunk ass'y. Includes 11 - 13.
-
12510004138 TrunkTrunk
-
13517302841 GrommetGrommet
-
14415110900 VelcroVelcro
-
15510004183 BroachBroach
-
16250000123 Phillips screw M6 x 16Phillips screw M6 x 16
-
17510004018 ReflectorReflector
-
18414979411 Rubber damperRubber damper
-
19515175940 FittingFitting
-
20410504100 Tail lamp bulbTail lamp bulb
-
21510003826 LensLens
-
22209632580 Screw M3.9 x 25Screw M3.9 x 25
-
23414516400 WasherWasher
-
24515175494 Male terminal housing (3 circuits)Male terminal housing (3 circuits)
-
25515175232 Male terminalMale terminal
-
26293750015 Tie rap mountTie rap mount
-
27293750002 Tie-rap 130 mmTie-rap 130 mm
