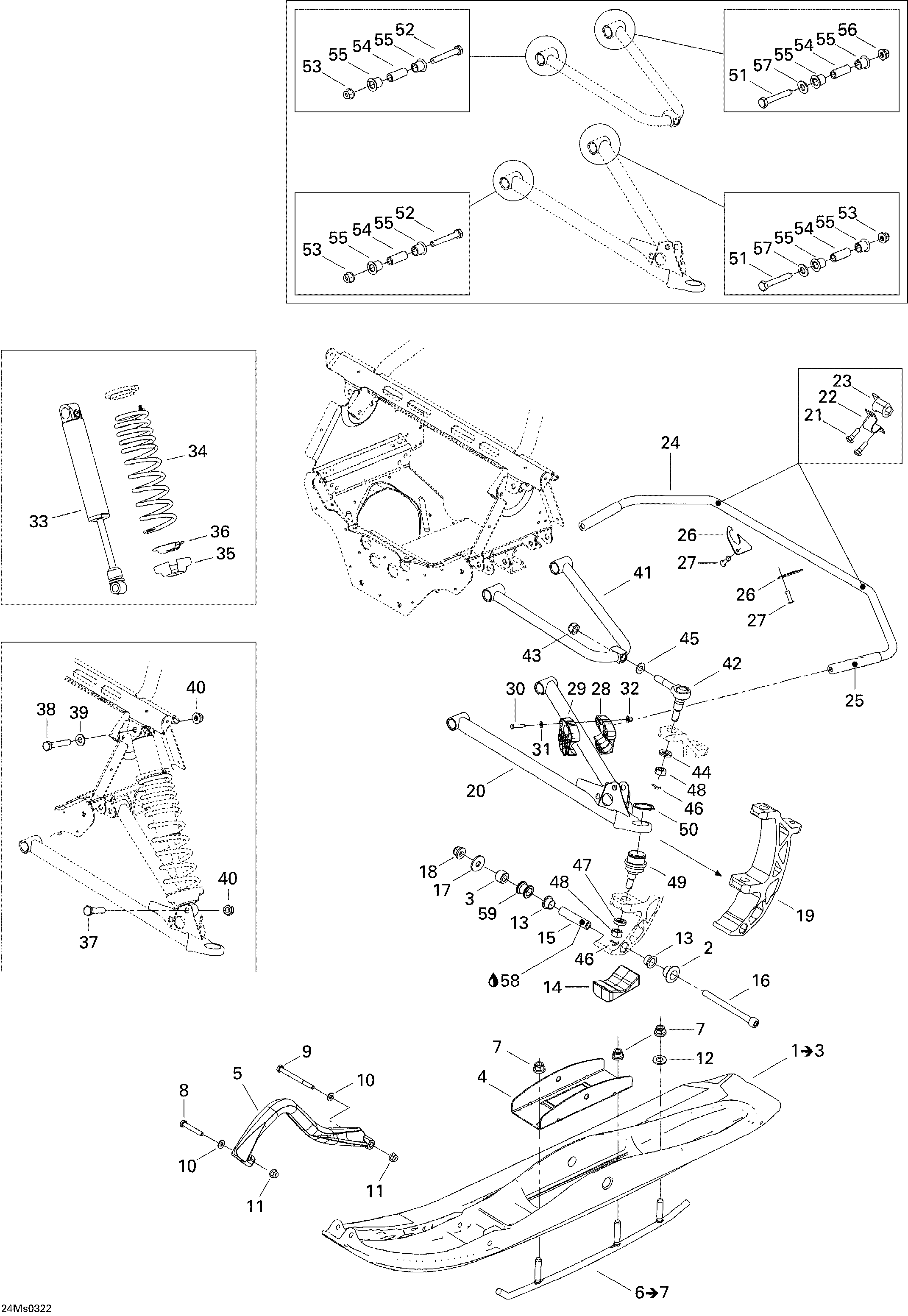

07- Front Suspension And Ski для BRP Ski-Doo Summit X 800 HO - 2003
-
№АртикулНазвание
-
1505071046 R.h. ski ass'y (black). Includes 1 - 3.R.h. ski ass'y (black). Includes 1 - 3.
-
505071047 L.h. ski ass'y (black)L.h. ski ass'y (black)
-
2505070743 CushionCushion
-
3505070823 CushionCushion
-
4505070745 Ski reinforcementSki reinforcement
-
5505070963 Handle (black)Handle (black)
-
6505070891 Carbide runner. Includes 6 - 7.Carbide runner. Includes 6 - 7.
-
7233201414 Elastic flanged nut M10Elastic flanged nut M10
-
8207085044 Hex screw M8 x 50Hex screw M8 x 50
-
9230080044 Hex screw M8 x 100Hex screw M8 x 100
-
10234081410 Flat washer M8Flat washer M8
-
11233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
12399910100 Flat washerFlat washer
-
13505070954 CushionCushion
-
14505070671 Ski stopperSki stopper
-
15506133300 SpacerSpacer
-
16250000069 Socket head screw M10 x 125Socket head screw M10 x 125
-
17234002410 Flat washer M10Flat washer M10
-
18732610084 Flanged nut M10Flanged nut M10
-
19505071214 Ski legSki leg
-
20860509500 R.h. lower arm Ass'Y. Includes 20, 49 and 50R.h. lower arm Ass'Y. Includes 20, 49 and 50
-
505071296 R.h. lower armR.h. lower arm
-
20860509400 L.h. lower arm Ass'Y. Includes 20, 49 and 50L.h. lower arm Ass'Y. Includes 20, 49 and 50
-
505071281 L.h. lower armL.h. lower arm
-
21250000118 Hex screwHex screw
-
22506095800 ClampClamp
-
23505070665 L.h. torsion bar bushingL.h. torsion bar bushing
-
505070881 R.h. torsion bar bushingR.h. torsion bar bushing
-
24505070785 StabilisatorStabilisator
-
25505070750 Stabilisator bootStabilisator boot
-
26505070874 End plugEnd plug
-
27293150103 Pop rivet 3/16''Pop rivet 3/16''
-
28505070667 R.h. half sliderR.h. half slider
-
29505070668 L.h. half sliderL.h. half slider
-
30207152544 Hex screw M5 x 25Hex screw M5 x 25
-
31391301700 WasherWasher
-
32233251414 Hex flanged elastic nut M5Hex flanged elastic nut M5
-
33505071135 Front shockFront shock
-
34505070760 SpringSpring
-
35503140600 Spring stopperSpring stopper
-
36503141600 CapCap
-
37207005544 Hex screw M10 x 55Hex screw M10 x 55
-
38207006044 Hex screw M10 x 60Hex screw M10 x 60
-
39732900049 WasherWasher
-
40233201414 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
41505071222 R.h. upper armR.h. upper arm
-
505070791 L.h. upper armL.h. upper arm
-
42505071110 Upper ball jointUpper ball joint
-
43250000047 Hex flanged elastic nut M12Hex flanged elastic nut M12
-
44234021410 Flat washer M12Flat washer M12
-
45503189276 WasherWasher
-
46211400017 Cotter pinCotter pin
-
47505071184 WasherWasher
-
48232221414 Hex castellated nut M12Hex castellated nut M12
-
49505071074 Ball jointBall joint
-
50293370035 Circlip 34 mmCirclip 34 mm
-
51250000114 Bolt M10 x 75Bolt M10 x 75
-
52207007044 Hex screw M10 x 70Hex screw M10 x 70
-
53233201414 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
54505070960 BushingBushing
-
55505070566 Arm bushingArm bushing
-
56233601416 Self stopping elastic nut M10Self stopping elastic nut M10
-
57503189564 WasherWasher
-
58219700417 Synhtetic greaseSynhtetic grease
-
59505071215 SpacerSpacer
