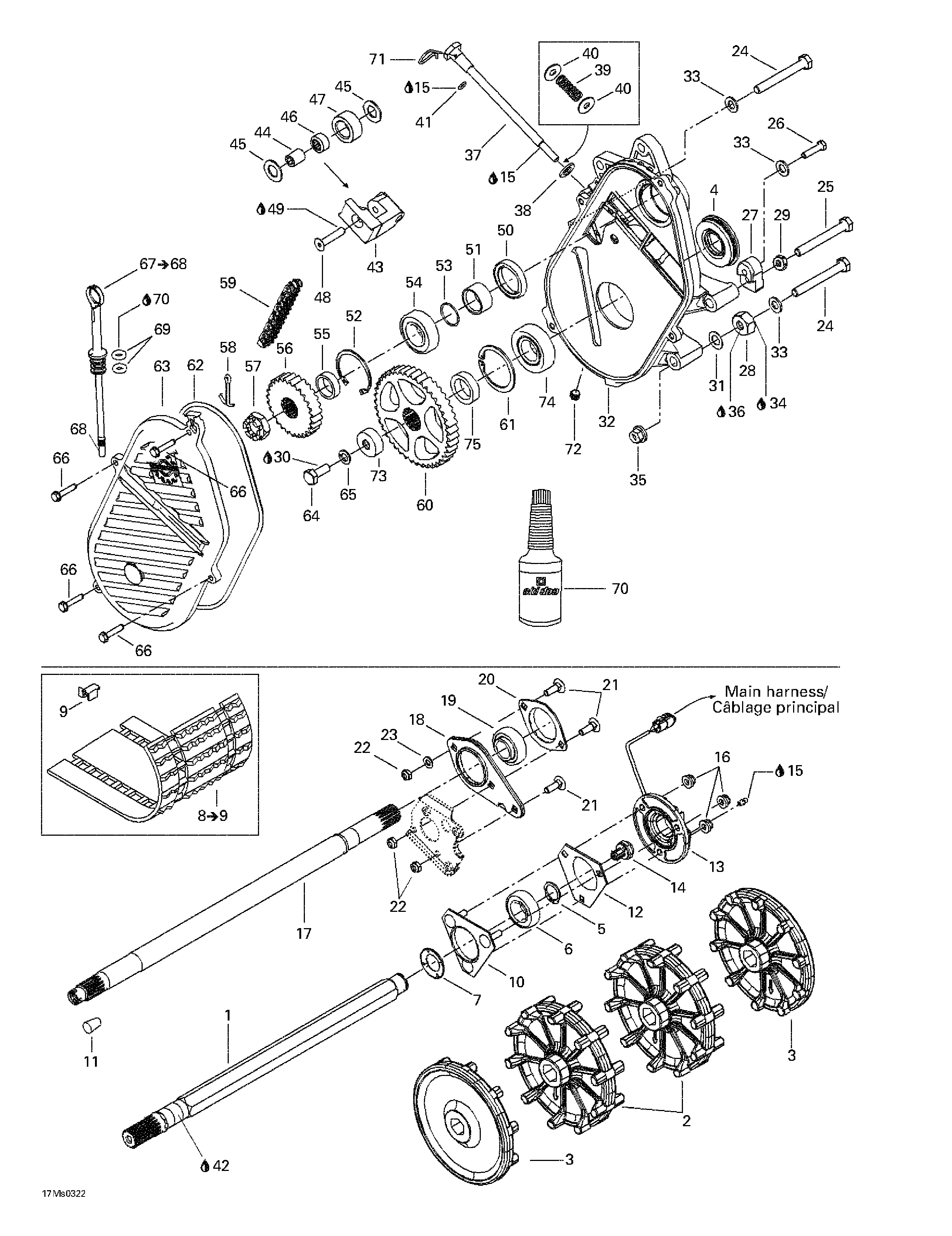

05- Drive System для BRP Ski-Doo Summit X 800 HO - 2003
-
№АртикулНазвание
-
1501027400 Drive axleDrive axle
-
2504152198 Sprocket (10 teeth)Sprocket (10 teeth)
-
3504152199 Half sprocket (10 theeth)Half sprocket (10 theeth)
-
4504151918 Oil seal ass'yOil seal ass'y
-
5371910200 CirclipCirclip
-
6504152009 Ball bearingBall bearing
-
7501017400 Bearing protectorBearing protector
-
8504152311 Track ass'y (16 x 144 x 2). Includes 8 - 9.Track ass'y (16 x 144 x 2). Includes 8 - 9.
-
9500003400 Guide cleatGuide cleat
-
10504151860 Bearing housingBearing housing
-
11414784800 CorkCork
-
12501025000 FlangeFlange
-
13504152167 Speed flangeSpeed flange
-
14504152040 Magnetic adaptorMagnetic adaptor
-
15219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
16233281414 Hex elastic flanged nut M8Hex elastic flanged nut M8
-
17504152018 Counter shaftCounter shaft
-
18504151968 Casting spacerCasting spacer
-
19504152026 Ball bearingBall bearing
-
20501026900 FlangeFlange
-
21207782544 Carriage bolt M8 x 25Carriage bolt M8 x 25
-
22232581414 Hex elastic nut M8Hex elastic nut M8
-
23234081410 Flat washer M8Flat washer M8
-
24250000140 Hex screw M10 x 80Hex screw M10 x 80
-
25207006544 Hex screw M10 x 65Hex screw M10 x 65
-
26207102544 Hex screw M10 x 25Hex screw M10 x 25
-
27504152106 SpacerSpacer
-
28504083800 SpacerSpacer
-
29504152237 SpacerSpacer
-
30293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
31504073700 WasherWasher
-
32504152086 ChaincaseChaincase
-
33503175800 WasherWasher
-
34293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
-
35233201414 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
36293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
37504151946 Adjusting screwAdjusting screw
-
38503189148 WasherWasher
-
39504151945 SpringSpring
-
40503125900 Hard washerHard washer
-
41504151954 O-ringO-ring
-
42219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
43504151940 Chain tensionerChain tensioner
-
44504080200 SpacerSpacer
-
45504080300 WasherWasher
-
46405403000 Needle bearingNeedle bearing
-
47414531300 RollerRoller
-
48732601144 ScrewScrew
-
49293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
50415049300 Oil sealOil seal
-
51507031500 SpacerSpacer
-
52371901700 Inner circlipInner circlip
-
53414876700 O-ringO-ring
-
54504152006 Ball bearingBall bearing
-
55504147200 ShimShim
-
56504152030 Sprocket (19 teeth)Sprocket (19 teeth)
-
57250000012 Hex castellated nut M20Hex castellated nut M20
-
58371006300 Cotter pinCotter pin
-
59504151830 Drive chain wide (72 links)Drive chain wide (72 links)
-
60504148500 Sprocket (43 teeth)Sprocket (43 teeth)
-
61415064300 Inner CirclipInner Circlip
-
62415046400 O-ringO-ring
-
63504152027 CoverCover
-
64207102544 Hex screw M10 x 25Hex screw M10 x 25
-
65234100602 Stop washer M10Stop washer M10
-
66210263080 Hex forming screw M6 x 30Hex forming screw M6 x 30
-
67504151703 Filler cap ass'y. Includes 67 - 68.Filler cap ass'y. Includes 67 - 68.
-
68572075502 MagnetMagnet
-
69414969400 O-ringO-ring
-
70413803300 Synthetic chaincase oil, 12 x 355 mlSynthetic chaincase oil, 12 x 355 ml
-
71414575600 Hair pinHair pin
-
72504151921 Plug 1/8-27Plug 1/8-27
-
73504152104 CapCap
-
74504152005 Ball bearingBall bearing
-
75504152058 ShimShim
