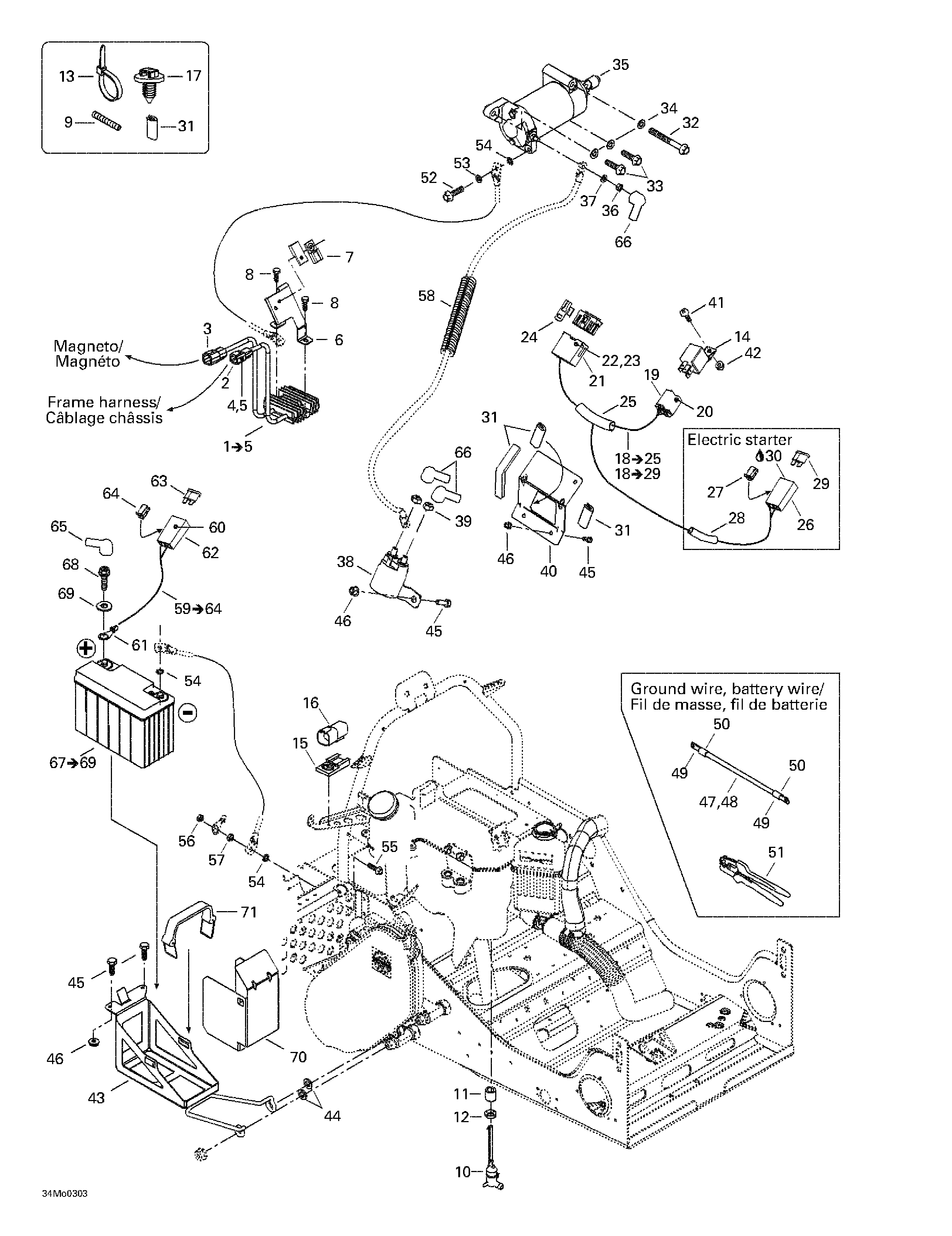

10- Battery для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
1515175968 Volt regulator. Includes 1 - 5.Volt regulator. Includes 1 - 5.
-
2278001674 M?le terminal housing (2 circuits)M?le terminal housing (2 circuits)
-
4515175568 Male TerminalMale Terminal
-
5278001671 Female lock (2 circuits)Female lock (2 circuits)
-
6515175842 Housing supportHousing support
-
7270000141 ClipClip
-
8290841543 Taptite screw M6 x 25Taptite screw M6 x 25
-
9409901800 TubingTubing
-
415079900 Tubing 10mmTubing 10mm
-
515175332 Tubing. DPM & DPM HO. DELETubing. DPM & DPM HO. DELE
-
10414681800 Level switchLevel switch
-
11414681900 FloatFloat
-
12414681901 Contact plateContact plate
-
13293750002 Tie-rap 130 mmTie-rap 130 mm
-
293750008 Tie-rap 350 mmTie-rap 350 mm
-
414115200 Tie-rapTie-rap
-
293750009 Tie-rap 160 mmTie-rap 160 mm
-
14410113200 RelayRelay
-
15270000141 ClipClip
-
16515175668 Female terminal housing (6 circuits)Female terminal housing (6 circuits)
-
17293730018 Mount dartMount dart
-
18515175721 Configuration harness. Includes 18 - 29. ELECTRIC STARTERConfiguration harness. Includes 18 - 29. ELECTRIC STARTER
-
18515175722 Configuration harness. Includes 18 - 25. MUNUAL STARTERConfiguration harness. Includes 18 - 25. MUNUAL STARTER
-
19409209900 Female terminal housing (5 circuits)Female terminal housing (5 circuits)
-
20561503100 Female terminalFemale terminal
-
21515175720 M?le terminal housing (11 circuits)M?le terminal housing (11 circuits)
-
22515175232 M?le terminalM?le terminal
-
23515175273 M?le terminalM?le terminal
-
24515175283 Housing supportHousing support
-
25409901800 Tubing 13 mmTubing 13 mm
-
26409004000 Fuse holderFuse holder
-
27409014200 ClipClip
-
28515175442 Tubing 6 mmTubing 6 mm
-
29278000344 Fuse (2 amperes)Fuse (2 amperes)
-
30293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
31271000110 Protection trimProtection trim
-
32207587544 Hex flanged screw M8 x 75 (scotch grip). ELECTRIC STARTERHex flanged screw M8 x 75 (scotch grip). ELECTRIC STARTER
-
33207583044 Hex Flanged Screw M8 x 30 (Scotch Grip). ELECTRIC STARTERHex Flanged Screw M8 x 30 (Scotch Grip). ELECTRIC STARTER
-
34250200008 Flat washer M8. ELECTRIC STARTERFlat washer M8. ELECTRIC STARTER
-
35515175843 Starter. ELECTRIC STARTERStarter. ELECTRIC STARTER
-
36232561414 Hex elastic nut M6. ELECTRIC STARTERHex elastic nut M6. ELECTRIC STARTER
-
37234061410 Flat washer M6. ELECTRIC STARTERFlat washer M6. ELECTRIC STARTER
-
38710000111 Starter relay. ELECTRIC STARTERStarter relay. ELECTRIC STARTER
-
39232561414 Hex elastic nut M6. ELECTRIC STARTERHex elastic nut M6. ELECTRIC STARTER
-
40515175907 Fuse holder supportFuse holder support
-
41208651241 Phillips screw M5 x 12Phillips screw M5 x 12
-
42233251414 Hex flanged elastic nut M5Hex flanged elastic nut M5
-
43515175718 Battery support. ELECTRIC STARTERBattery support. ELECTRIC STARTER
-
44503175800 Washer. ELECTRIC STARTERWasher. ELECTRIC STARTER
-
45207151444 Hex screw M5 x 14. MANUAL STARTERHex screw M5 x 14. MANUAL STARTER
-
207151444 Hex screw M5 x 14. ELECTRIC STARTERHex screw M5 x 14. ELECTRIC STARTER
-
46233251414 Hex flanged elastic nut M5. ELECTRIC STARTERHex flanged elastic nut M5. ELECTRIC STARTER
-
233251414 Hex flanged elastic nut M5. MANUAL STARTERHex flanged elastic nut M5. MANUAL STARTER
-
47278001680 Ground cable battery (no 6) (meter)Ground cable battery (no 6) (meter)
-
48278001690 Red cable battery (no 6) (meter)Red cable battery (no 6) (meter)
-
49278001682 Flat terminal (small hole)Flat terminal (small hole)
-
278001683 Terminal 45 Deg. (small hole)Terminal 45 Deg. (small hole)
-
278001684 Terminal 90 Deg. (small hole)Terminal 90 Deg. (small hole)
-
278001685 Flat terminal (big hole)Flat terminal (big hole)
-
278001686 Terminal 45 Deg. (big hole)Terminal 45 Deg. (big hole)
-
278001687 Terminal 90 Deg. (big hole)Terminal 90 Deg. (big hole)
-
278001688 Flat terminalFlat terminal
-
278001776 Terminal 30 Deg. (2 holes)Terminal 30 Deg. (2 holes)
-
50278001692 Heat shrinkHeat shrink
-
51529035730 Crimp plierCrimp plier
-
52207361644 Hex flanged screw M6 x 16 (scotch grip). ELECTRIC STARTERHex flanged screw M6 x 16 (scotch grip). ELECTRIC STARTER
-
53234061410 Flat washer M6. ELECTRIC STARTERFlat washer M6. ELECTRIC STARTER
-
54250200000 Washer M6. ELECTRIC STARTERWasher M6. ELECTRIC STARTER
-
250200000 Washer M6. MANUAL STARTERWasher M6. MANUAL STARTER
-
55207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
56233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
57232061414 Hex nut M6Hex nut M6
-
58409901700 Tubing 9 mm. ELECTRIC STARTERTubing 9 mm. ELECTRIC STARTER
-
59515175489 Battery fuse wire. Includes 59 - 64. ELECTRIC STARTERBattery fuse wire. Includes 59 - 64. ELECTRIC STARTER
-
60409004200 Female terminalFemale terminal
-
61278000992 Ring terminalRing terminal
-
62409004000 Fuse holderFuse holder
-
63410917200 Fuse (30 amperes)Fuse (30 amperes)
-
64409014200 ClipClip
-
65570151000 Protection cap. ELECTRIC STARTERProtection cap. ELECTRIC STARTER
-
66278001771 Battery wire cap. ELECTRIC STARTERBattery wire cap. ELECTRIC STARTER
-
67515175642 Battery. Includes 67 - 69. ELECTRIC STARTERBattery. Includes 67 - 69. ELECTRIC STARTER
-
68207151260 Hex screw M6 x 12Hex screw M6 x 12
-
69234061410 Flat washer M6Flat washer M6
-
70515175643 Deflector. ELECTRIC STARTERDeflector. ELECTRIC STARTER
-
71515175475 Battery strap. ELECTRIC STARTERBattery strap. ELECTRIC STARTER
