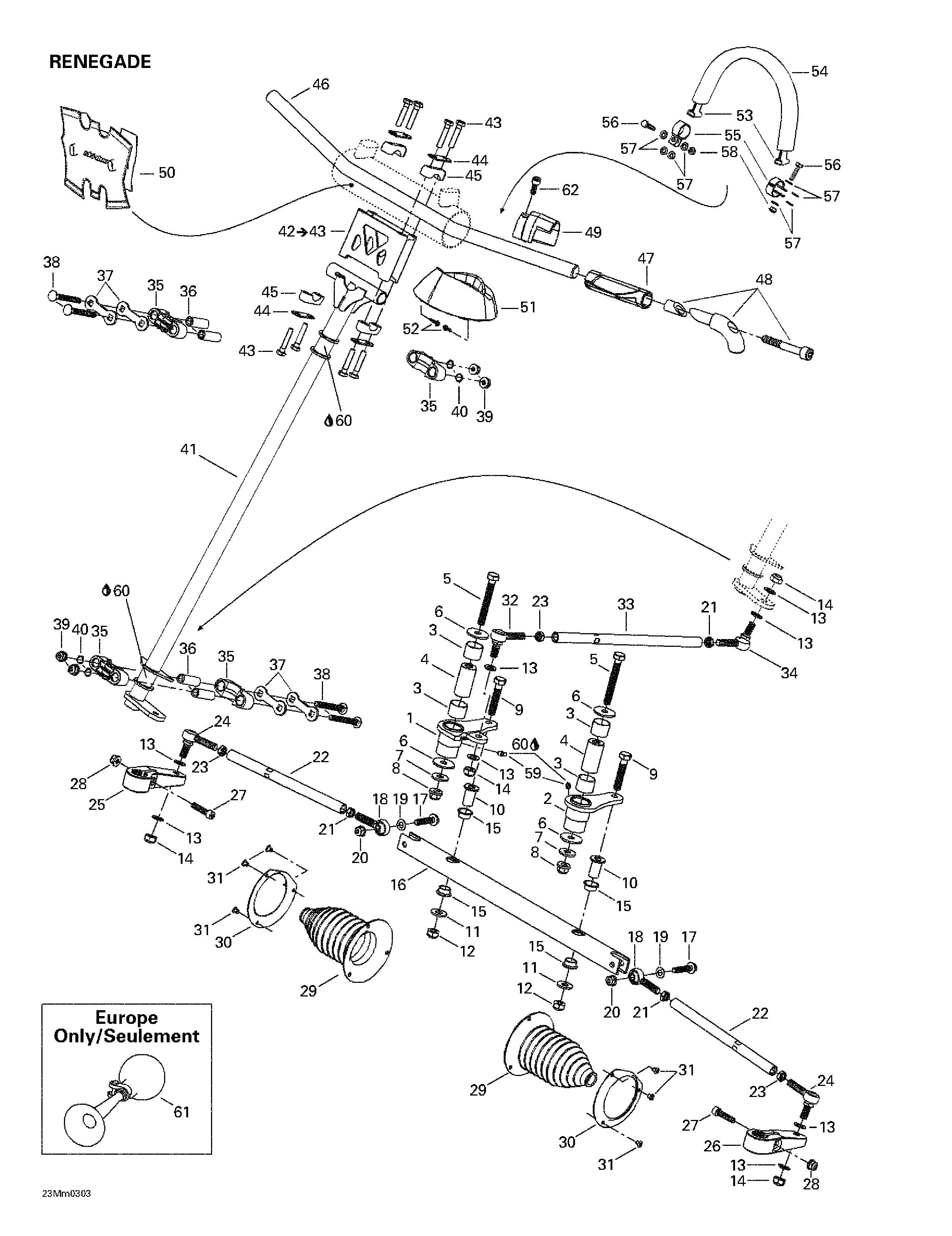

07- Steering System (Renegade) для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
1506151506 R.h. swivel arm. MX Z 600. MX Z 800.R.h. swivel arm. MX Z 600. MX Z 800.
-
2506151623 L.h. swivel arm. MX Z 600. MX Z 800.L.h. swivel arm. MX Z 600. MX Z 800.
-
3506149900 Swivel bushing. MX Z 600. MX Z 800.Swivel bushing. MX Z 600. MX Z 800.
-
4506150100 Swivel pivot. MX Z 600. MX Z 800.Swivel pivot. MX Z 600. MX Z 800.
-
5207008086 Hex screw M10 x 80. MX Z 600. MX Z 800.Hex screw M10 x 80. MX Z 600. MX Z 800.
-
6506150000 Washer M10. MX Z 600. MX Z 800.Washer M10. MX Z 600. MX Z 800.
-
7506151251 Washer. MX Z 600. MX Z 800.Washer. MX Z 600. MX Z 800.
-
8732610084 Flanged nut M10. MX Z 600. MX Z 800.Flanged nut M10. MX Z 600. MX Z 800.
-
9207005544 Hex screw M10 x 55. MX Z 600. MX Z 800.Hex screw M10 x 55. MX Z 600. MX Z 800.
-
10506147300 Pivot bar. MX Z 600. MX Z 800.Pivot bar. MX Z 600. MX Z 800.
-
11224002251 Flat washer. MX Z 600. MX Z 800.Flat washer. MX Z 600. MX Z 800.
-
12233601416 Self stop elastic nut M10. MX Z 600. MX Z 800.Self stop elastic nut M10. MX Z 600. MX Z 800.
-
13503175800 Washer. MX Z 600. MX Z 800.Washer. MX Z 600. MX Z 800.
-
14232501416 Hex elastic nut M10. MX Z 600. MX Z 800.Hex elastic nut M10. MX Z 600. MX Z 800.
-
15506150200 Swivel bushing. MX Z 600. MX Z 800.Swivel bushing. MX Z 600. MX Z 800.
-
16506147000 Swivel bar. MX Z 600. MX Z 800.Swivel bar. MX Z 600. MX Z 800.
-
17207684044 Hex flanged screw M8 x 40. MX Z 600. MX Z 800.Hex flanged screw M8 x 40. MX Z 600. MX Z 800.
-
18506151496 L.h. ball joint. MX Z 600. MX Z 800.L.h. ball joint. MX Z 600. MX Z 800.
-
19506151252 Washer. MX Z 600. MX Z 800.Washer. MX Z 600. MX Z 800.
-
20233281414 Hex flanged elastic nut M8. MX Z 600. MX Z 800.Hex flanged elastic nut M8. MX Z 600. MX Z 800.
-
21250100016 L.h. hex jam nut M10. MX Z 600. MX Z 800.L.h. hex jam nut M10. MX Z 600. MX Z 800.
-
22506151376 Tie rod. MX Z 600. MX Z 800.Tie rod. MX Z 600. MX Z 800.
-
23732610010 R.h. hex jam nut M10. MX Z 600. MX Z 800.R.h. hex jam nut M10. MX Z 600. MX Z 800.
-
24506151491 Ball joint. MX Z 600. MX Z 800.Ball joint. MX Z 600. MX Z 800.
-
25506151451 R.h. steering arm. MX Z 600. MX Z 800.R.h. steering arm. MX Z 600. MX Z 800.
-
26506151452 L.h. steering arm. MX Z 600. MX Z 800.L.h. steering arm. MX Z 600. MX Z 800.
-
27205083544 Socket screw M8 x 35. MX Z 600. MX Z 800.Socket screw M8 x 35. MX Z 600. MX Z 800.
-
28233281414 Hex flanged elastic nut M8. MX Z 600. MX Z 800.Hex flanged elastic nut M8. MX Z 600. MX Z 800.
-
29570070500 Tie rod cap. MX Z 600. MX Z 800.Tie rod cap. MX Z 600. MX Z 800.
-
30506151100 Retainer ring. MX Z 600. MX Z 800.Retainer ring. MX Z 600. MX Z 800.
-
31390402300 Pop rivet 3/16''. MX Z 600. MX Z 800.Pop rivet 3/16''. MX Z 600. MX Z 800.
-
32506151492 R.h. ball joint. MX Z 600. MX Z 800.R.h. ball joint. MX Z 600. MX Z 800.
-
33506151375 Tie rod. MX Z 600. MX Z 800.Tie rod. MX Z 600. MX Z 800.
-
34506151495 L.h. ball joint. MX Z 600. MX Z 800.L.h. ball joint. MX Z 600. MX Z 800.
-
35506150400 Half housing. MX Z 600. MX Z 800.Half housing. MX Z 600. MX Z 800.
-
36506150500 Housing bushing. MX Z 600. MX Z 800.Housing bushing. MX Z 600. MX Z 800.
-
37506150600 Stopper plate. MX Z 600. MX Z 800.Stopper plate. MX Z 600. MX Z 800.
-
38207787044 Carriage bolt M8 x 70. MX Z 600. MX Z 800.Carriage bolt M8 x 70. MX Z 600. MX Z 800.
-
39233281414 Hex flanged elastic nut M8. MX Z 600. MX Z 800.Hex flanged elastic nut M8. MX Z 600. MX Z 800.
-
40506151140 O-ring. MX Z 600. MX Z 800.O-ring. MX Z 600. MX Z 800.
-
41506151488 Main tube. MX Z 600. MX Z 800.Main tube. MX Z 600. MX Z 800.
-
42860601300 Extension. Includes 42 - 43. MX Z 600. MX Z 800.Extension. Includes 42 - 43. MX Z 600. MX Z 800.
-
43250000074 Hex screw M8 x 40. MX Z 600. MX Z 800.Hex screw M8 x 40. MX Z 600. MX Z 800.
-
44506151196 Reiforcement. MX Z 600. MX Z 800.Reiforcement. MX Z 600. MX Z 800.
-
45506151622 Steering support. MX Z 600. MX Z 800.Steering support. MX Z 600. MX Z 800.
-
46506151679 Handle bar. MX Z 600. MX Z 800.Handle bar. MX Z 600. MX Z 800.
-
47506151717 Handle grip. MX Z 600. MX Z 800.Handle grip. MX Z 600. MX Z 800.
-
48506151596 Black hook. MX Z 600. MX Z 800.Black hook. MX Z 600. MX Z 800.
-
49506151566 Adaptator. MX Z 600. MX Z 800.Adaptator. MX Z 600. MX Z 800.
-
50506151625 Steering pad. MX Z 600. MX Z 800.Steering pad. MX Z 600. MX Z 800.
-
51506151514 Console collar. MX Z 600. MX Z 800.Console collar. MX Z 600. MX Z 800.
-
52732601210 Hex screw #8 x 3/8. MX Z 600. MX Z 800.Hex screw #8 x 3/8. MX Z 600. MX Z 800.
-
53415095500 Tie-down. MX Z 600. MX Z 800.Tie-down. MX Z 600. MX Z 800.
-
54415090200 Grip. MX Z 600. MX Z 800.Grip. MX Z 600. MX Z 800.
-
55506148200 Support plate. MX Z 600. MX Z 800.Support plate. MX Z 600. MX Z 800.
-
56207162544 Hex screw M6 x 25. MX Z 600. MX Z 800.Hex screw M6 x 25. MX Z 600. MX Z 800.
-
57234061410 Flat washer M6. MX Z 600. MX Z 800.Flat washer M6. MX Z 600. MX Z 800.
-
58232561414 Hex flanged elastic nut M6. MX Z 600. MX Z 800.Hex flanged elastic nut M6. MX Z 600. MX Z 800.
-
59408200700 Grease fitting. MX Z 600. MX Z 800.Grease fitting. MX Z 600. MX Z 800.
-
60219700417 Synthetic Grease, 400g. MX Z 600. MX Z 800.Synthetic Grease, 400g. MX Z 600. MX Z 800.
-
61415040700 Horn (Europe). MX Z 600. MX Z 800.Horn (Europe). MX Z 600. MX Z 800.
-
62206581244 Socket set screw M8 x 12. MX Z 600. MX Z 800.Socket set screw M8 x 12. MX Z 600. MX Z 800.
