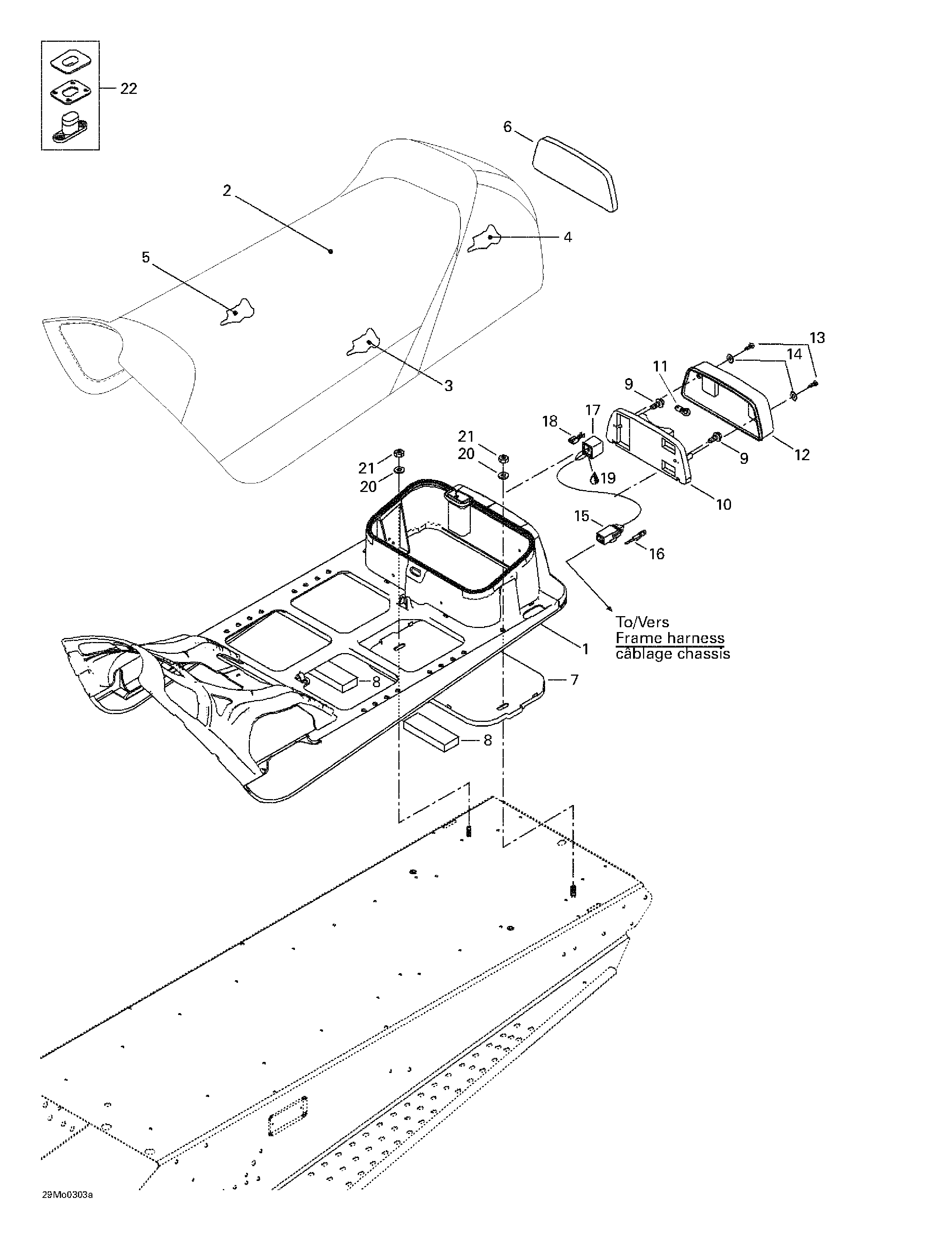

09- Seat And Accessories для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
1510004125 Seat base. ADRENALINE & TRAIL (C/U)Seat base. ADRENALINE & TRAIL (C/U)
-
510003983 Seat base. ADRENALINE (EUROPE) MX Z 500. RENEGADE MX Z 600. MX Z 800.Seat base. ADRENALINE (EUROPE) MX Z 500. RENEGADE MX Z 600. MX Z 800.
-
2510004084 Seat cover. ADRENALINE & TRAIL (C/U)Seat cover. ADRENALINE & TRAIL (C/U)
-
510004063 Seat cover. ADRENALINE (EUROPE) MX Z 500. RENEGADE (C/U) MX Z 600. MX Z 800.Seat cover. ADRENALINE (EUROPE) MX Z 500. RENEGADE (C/U) MX Z 600. MX Z 800.
-
510004117 Seat cover. RENEGADE (EUROPE) MX Z 600. MX Z 800.Seat cover. RENEGADE (EUROPE) MX Z 600. MX Z 800.
-
3510003944 Seat foam. ADRENALINE (EUROPE) MX Z 500. RENEGADE MX Z 600. MX Z 800.Seat foam. ADRENALINE (EUROPE) MX Z 500. RENEGADE MX Z 600. MX Z 800.
-
4510003945 Rear seat foamRear seat foam
-
5510004115 Seat foam. ADRENALINE & TRAIL (C/U)Seat foam. ADRENALINE & TRAIL (C/U)
-
510004032 Seat foam. ADRENALINE (EUROPE) MX Z 500. RENEGADE MX Z 600. MX Z 800.Seat foam. ADRENALINE (EUROPE) MX Z 500. RENEGADE MX Z 600. MX Z 800.
-
6510003989 Tail lamp foam. RENEGADE (EUROPE) MX Z 600. MX Z 800.Tail lamp foam. RENEGADE (EUROPE) MX Z 600. MX Z 800.
-
7572107601 Under chestUnder chest
-
8510004157 Foam. ADRENALINE & TRAIL (C/U)Foam. ADRENALINE & TRAIL (C/U)
-
9732603006 Hex flanged plastite screw #10 x 1''. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.Hex flanged plastite screw #10 x 1''. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.
-
10510004061 Light housing. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.Light housing. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.
-
11410504100 Tail lamp bulb. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.Tail lamp bulb. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.
-
12414513700 Lens. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.Lens. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.
-
13209632540 Phillips screw M3.9 x 25. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.Phillips screw M3.9 x 25. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.
-
14414516400 Washer. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.Washer. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.
-
15515175494 Male terminal housing (3 circuits)Male terminal housing (3 circuits)
-
16515175232 Male terminalMale terminal
-
17515175250 Female terminal housing (3 circuits). ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.Female terminal housing (3 circuits). ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.
-
515175495 Female terminal housing (3 circuits). RENEGADE (EUROPE) MX Z 600. MX Z 800.Female terminal housing (3 circuits). RENEGADE (EUROPE) MX Z 600. MX Z 800.
-
18561503100 Female terminal. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.Female terminal. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.
-
515175231 Female terminal. RENEGADE (EUROPE) MX Z 600. MX Z 800.Female terminal. RENEGADE (EUROPE) MX Z 600. MX Z 800.
-
19293550004 Dielectric Grease, 150 g. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.Dielectric Grease, 150 g. ADRENALINE & TRAIL. RENEGADE (C/U) MX Z 600. MX Z 800.
-
20234082410 Flat washer M8Flat washer M8
-
21232581414 Hex elastic nut M8Hex elastic nut M8
-
22414728000 Seat buckleSeat buckle
