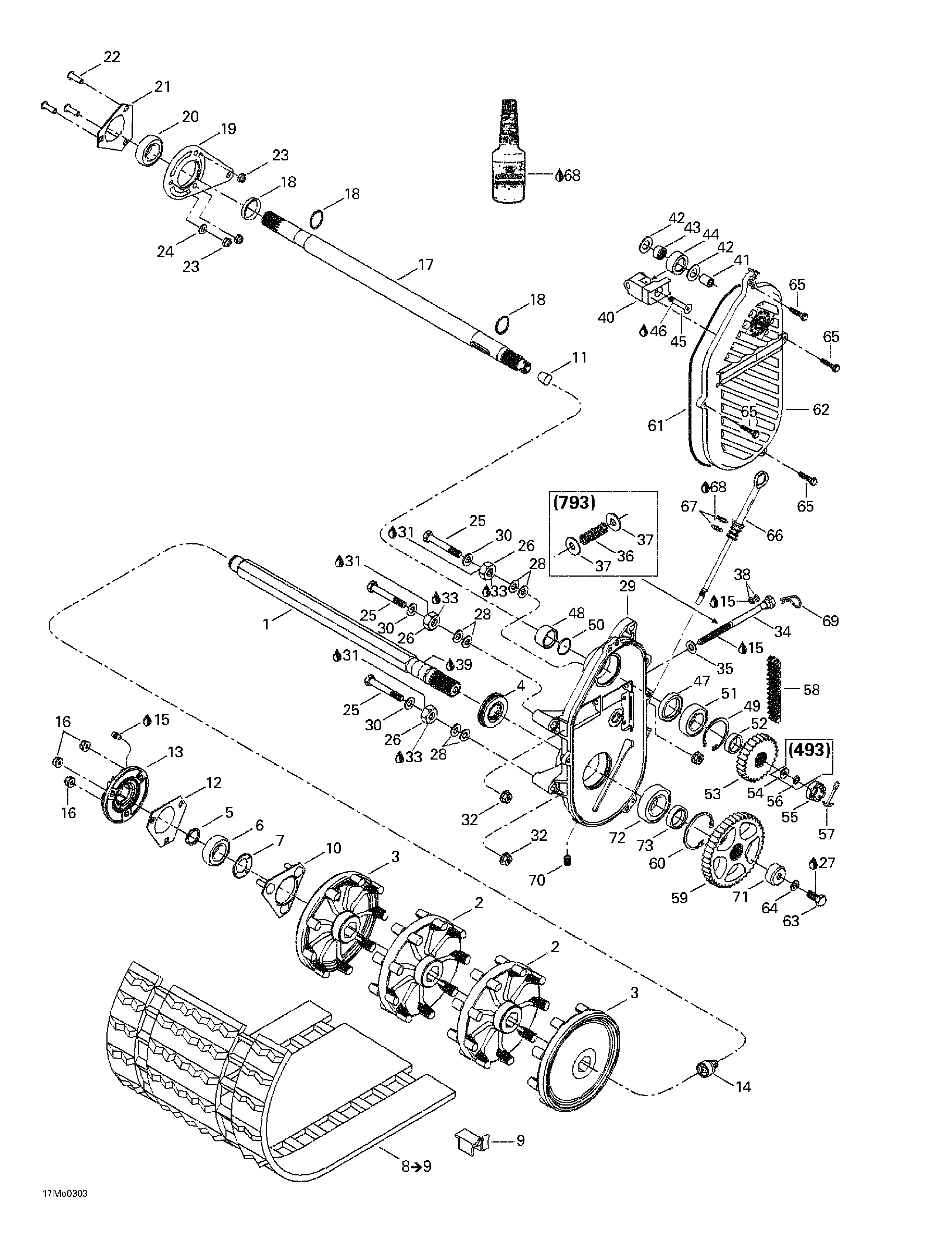

05- Drive System для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003

  • №
    Артикул
    Название
  • 1
    501027400 Drive axle
    Drive axle
  • 2
    504151781 Sprocket (9 teeth)
    Sprocket (9 teeth)
  • 3
    504151782 Half sprocket (9 theeth)
    Half sprocket (9 theeth)
  • 4
    504151918 Oil seal ass'y
    Oil seal ass'y
  • 5
    371910200 Circlip
    Circlip
  • 6
    504152009 Ball bearing
    Ball bearing
  • 7
    501017400 Bearing protector
    Bearing protector
  • 8
    504151815 Track ass'y (15 X 121'' 1,250''). Includes 8 - 9. TRACK 1.25'' ADRENALINE
    Track ass'y (15 X 121'' 1,250''). Includes 8 - 9. TRACK 1.25'' ADRENALINE
  • 504151917 Track ass'y (15''X121''X1.000''). TRACK 1.00'' ADRENALINE
    Track ass'y (15''X121''X1.000''). TRACK 1.00'' ADRENALINE
  • 504152080 Track ass'y (15''X121''X1.000''). TRACK 1.01'' ADRENALINE
    Track ass'y (15''X121''X1.000''). TRACK 1.01'' ADRENALINE
  • 570212600 Track ass'y (15''X121''X.875''). TRACK 0.88'' TRAIL MX Z 500. MX Z 600.
    Track ass'y (15''X121''X.875''). TRACK 0.88'' TRAIL MX Z 500. MX Z 600.
  • 504152028 Track ass'y (15''X136''X1.250''). TRACK 1.25'' RENEGADE MX Z 600. MX Z 800.
    Track ass'y (15''X136''X1.250''). TRACK 1.25'' RENEGADE MX Z 600. MX Z 800.
  • 570212000 Track ass'y (15''X136''X1.750''). TRACK 1.75'' RENEGADE MX Z 600. MX Z 800.
    Track ass'y (15''X136''X1.750''). TRACK 1.75'' RENEGADE MX Z 600. MX Z 800.
  • 9
    500003400 Guide cleat
    Guide cleat
  • 10
    504151860 Bearing housing
    Bearing housing
  • 11
    414784800 Cork. 600/700/800 & RENEGADE MX Z 600. MX Z 700. MX Z 800.
    Cork. 600/700/800 & RENEGADE MX Z 600. MX Z 700. MX Z 800.
  • 12
    501025000 Flange
    Flange
  • 13
    504152173 Speed flange
    Speed flange
  • 14
    504152040 Magnetic adaptor
    Magnetic adaptor
  • 15
    219700417 Synthetic Grease, 400g
    Synthetic Grease, 400g
  • 16
    233281414 Hex. Elastic flanged nut M8
    Hex. Elastic flanged nut M8
  • 17
    501026300 Counter shaft. 600/700/800 & RENEGADE MX Z 600. MX Z 700. MX Z 800.
    Counter shaft. 600/700/800 & RENEGADE MX Z 600. MX Z 700. MX Z 800.
  • 504151858 Counter shaft. 500 ADRENALINE & TRAIL
    Counter shaft. 500 ADRENALINE & TRAIL
  • 18
    371910000 Circlip. 500 ADRENALINE & TRAIL
    Circlip. 500 ADRENALINE & TRAIL
  • 504149100 Spacer. 600/700/800 & RENEGADE MX Z 600. MX Z 700. MX Z 800.
    Spacer. 600/700/800 & RENEGADE MX Z 600. MX Z 700. MX Z 800.
  • 19
    080044200 Spacer
    Spacer
  • 20
    504152008 Ball bearing. 500 ADRENALINE & TRAIL
    Ball bearing. 500 ADRENALINE & TRAIL
  • 504152026 Ball bearing. 600/700/800 & RENEGADE MX Z 600. MX Z 700. MX Z 800.
    Ball bearing. 600/700/800 & RENEGADE MX Z 600. MX Z 700. MX Z 800.
  • 21
    501025000 Flange
    Flange
  • 22
    205482546 Socket Screw M8 x 25
    Socket Screw M8 x 25
  • 23
    232581414 Hex elastic nut M8
    Hex elastic nut M8
  • 24
    234081410 Flat washer M8
    Flat washer M8
  • 25
    207108044 Hex screw M10 x 80
    Hex screw M10 x 80
  • 26
    504083800 Spacer
    Spacer
  • 27
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 28
    504073700 Washer
    Washer
  • 29
    504152062 Chaincase. 800 MX Z 800.
    Chaincase. 800 MX Z 800.
  • 504152064 Chaincase. 500/600/700 & RENEGADE 600 HO MX Z 500. MX Z 600. MX Z 700.
    Chaincase. 500/600/700 & RENEGADE 600 HO MX Z 500. MX Z 600. MX Z 700.
  • 30
    503183800 Washer
    Washer
  • 31
    293800070 Loctite 767, antiseize lubricant, 8 oz
    Loctite 767, antiseize lubricant, 8 oz
  • 32
    233201414 Hex flanged elastic nut M10
    Hex flanged elastic nut M10
  • 33
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 34
    504151946 Adjusting screw. 800 MX Z 800.
    Adjusting screw. 800 MX Z 800.
  • 732601314 Adjusting screw. 500/600/700 & RENEGADE 600 HO MX Z 500. MX Z 600. MX Z 700.
    Adjusting screw. 500/600/700 & RENEGADE 600 HO MX Z 500. MX Z 600. MX Z 700.
  • 35
    234001410 Flat washer M10. 500/600/700 & RENEGADE 600 HO MX Z 500. MX Z 600. MX Z 700.
    Flat washer M10. 500/600/700 & RENEGADE 600 HO MX Z 500. MX Z 600. MX Z 700.
  • 503189148 Washer. 800 MX Z 800.
    Washer. 800 MX Z 800.
  • 36
    504151945 Spring. 800 MX Z 800.
    Spring. 800 MX Z 800.
  • 37
    503125900 Hard washer. 800 MX Z 800.
    Hard washer. 800 MX Z 800.
  • 38
    414484400 O-ring. 500/600/700 & RENEGADE 600 HO MX Z 500. MX Z 600. MX Z 700.
    O-ring. 500/600/700 & RENEGADE 600 HO MX Z 500. MX Z 600. MX Z 700.
  • 504151954 O-ring. 800 MX Z 800.
    O-ring. 800 MX Z 800.
  • 39
    219700417 Synthetic Grease, 400g
    Synthetic Grease, 400g
  • 40
    504151940 Chain tensioner. 600/700/800 & RENEGADE MX Z 600. MX Z 700. MX Z 800.
    Chain tensioner. 600/700/800 & RENEGADE MX Z 600. MX Z 700. MX Z 800.
  • 504151951 Chain tensioner. 500 ADENALINE & TRAIL MX Z 500.
    Chain tensioner. 500 ADENALINE & TRAIL MX Z 500.
  • 41
    504080200 Spacer
    Spacer
  • 42
    504080300 Washer
    Washer
  • 43
    405403000 Needle bearing
    Needle bearing
  • 44
    414531300 Roller
    Roller
  • 45
    732601144 Screw
    Screw
  • 46
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 47
    415049300 Oil seal. 600/700/800 & RENEGADE MX Z 600. MX Z 700. MX Z 800.
    Oil seal. 600/700/800 & RENEGADE MX Z 600. MX Z 700. MX Z 800.
  • 504151927 Seal. 500 ADENALINE & TRAIL MX Z 500.
    Seal. 500 ADENALINE & TRAIL MX Z 500.
  • 48
    507031500 Spacer. RENEGADE MX Z 600. MX Z 800.
    Spacer. RENEGADE MX Z 600. MX Z 800.
  • 49
    371901700 Inner circlip
    Inner circlip
  • 50
    414876700 O-ring. RENEGADE MX Z 600. MX Z 800.
    O-ring. RENEGADE MX Z 600. MX Z 800.
  • 51
    504152006 Ball bearing
    Ball bearing
  • 52
    504147200 Shim
    Shim
  • 53
    504056000 Sprocket (22 teeth). 500 ADRENALINE & TRAIL MX Z 500.
    Sprocket (22 teeth). 500 ADRENALINE & TRAIL MX Z 500.
  • 504084300 Sprocket (25 teeth). 700 ADRENALINE MX Z 700.
    Sprocket (25 teeth). 700 ADRENALINE MX Z 700.
  • 504085300 Sprocket (26 teeth). 800 ADRENALINE MX Z 800.
    Sprocket (26 teeth). 800 ADRENALINE MX Z 800.
  • 504139700 Sprocket (24 teeth). 600/600 HO ADRENALINE & TRAIL MX Z 600.
    Sprocket (24 teeth). 600/600 HO ADRENALINE & TRAIL MX Z 600.
  • 504091000 Sprocket (23 teeth). 800 RENAGADE MX Z 800.
    Sprocket (23 teeth). 800 RENAGADE MX Z 800.
  • 504091100 Sprocket (22 teeth). 600 HO RENAGADE MX Z 600.
    Sprocket (22 teeth). 600 HO RENAGADE MX Z 600.
  • 54
    504152049 Spacer. 500 ADRENALINE & TRAIL MX Z 500.
    Spacer. 500 ADRENALINE & TRAIL MX Z 500.
  • 55
    232210414 Hex castellated nut M16. 500 ADRENALINE & TRAIL MX Z 500.
    Hex castellated nut M16. 500 ADRENALINE & TRAIL MX Z 500.
  • 250000012 Hex castellated nut M20. RENEGADE MX Z 600. MX Z 800.
    Hex castellated nut M20. RENEGADE MX Z 600. MX Z 800.
  • 56
    417000900 Spring washer. 500 ADRENALINE & TRAIL MX Z 500.
    Spring washer. 500 ADRENALINE & TRAIL MX Z 500.
  • 57
    371006300 Cotter pin. RENEGADE MX Z 600. MX Z 800.
    Cotter pin. RENEGADE MX Z 600. MX Z 800.
  • 371801300 Cotter pin. 500 ADRENALINE & TRAIL MX Z 500.
    Cotter pin. 500 ADRENALINE & TRAIL MX Z 500.
  • 58
    504151856 Drive chain wide (76 links). 800 ADRENALINE & TRAIL MX Z 500. MX Z 600. MX Z 800.
    Drive chain wide (76 links). 800 ADRENALINE & TRAIL MX Z 500. MX Z 600. MX Z 800.
  • 504151856 Drive chain wide (76 links). 700 ADRENALINE & TRAIL MX Z 500. MX Z 600. MX Z 700.
    Drive chain wide (76 links). 700 ADRENALINE & TRAIL MX Z 500. MX Z 600. MX Z 700.
  • 504151857 Drive chain wide (74 links). 600/600 HO & RENEGADE MX Z 600. MX Z 800.
    Drive chain wide (74 links). 600/600 HO & RENEGADE MX Z 600. MX Z 800.
  • 504151859 Drive chain narrow (74 links). 500 ADRENALINE & TRAIL MX Z 500. MX Z 600.
    Drive chain narrow (74 links). 500 ADRENALINE & TRAIL MX Z 500. MX Z 600.
  • 59
    504148500 Sprocket (43 teeth). RENEGADE MX Z 600. MX Z 800.
    Sprocket (43 teeth). RENEGADE MX Z 600. MX Z 800.
  • 504148600 Sprocket (43 teeth). 500 ADRENALINE & TRAIL MX Z 500. MX Z 600.
    Sprocket (43 teeth). 500 ADRENALINE & TRAIL MX Z 500. MX Z 600.
  • 60
    415064300 Inner Circlip
    Inner Circlip
  • 61
    415046400 O-ring
    O-ring
  • 62
    504152027 Cover
    Cover
  • 63
    207102544 Hex screw M10 x 25
    Hex screw M10 x 25
  • 64
    234100602 Stop washer M10
    Stop washer M10
  • 65
    210263080 Hex forming screw M6 x 30
    Hex forming screw M6 x 30
  • 66
    504151703 Filler cap ass'y
    Filler cap ass'y
  • 67
    414969400 O-ring
    O-ring
  • 68
    413803300 Synthetic chaincase oil, 12 x 355 ml
    Synthetic chaincase oil, 12 x 355 ml
  • 69
    414575600 Hair pin
    Hair pin
  • 70
    504151921 Plug 1/8-27
    Plug 1/8-27
  • 71
    501022400 Cap. 500 ADRENALINE & TRAIL
    Cap. 500 ADRENALINE & TRAIL
  • 504152104 Cap. RENEGADE
    Cap. RENEGADE
  • 72
    504152005 Ball bearing
    Ball bearing
  • 73
    504152058 Shim
    Shim
