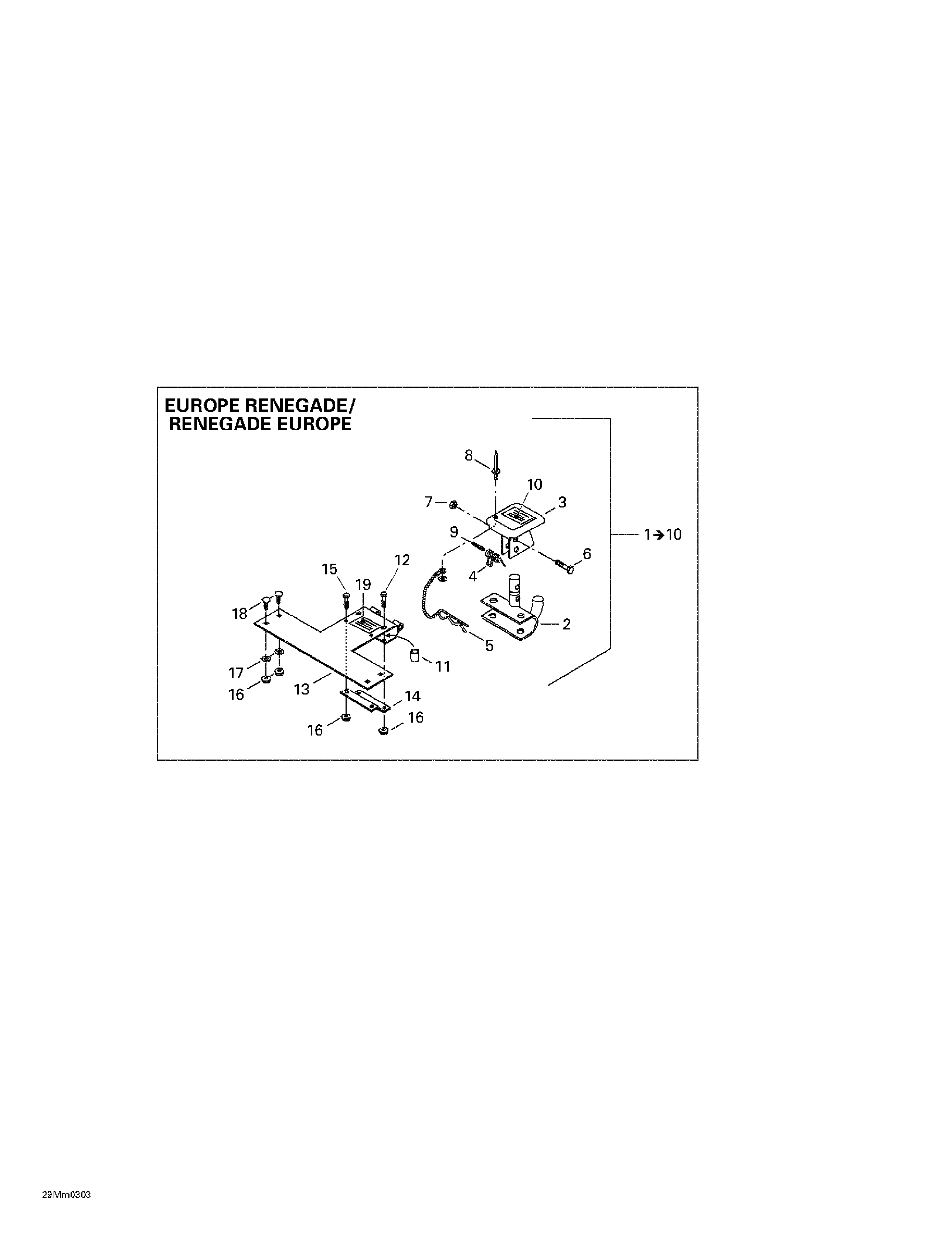

09- Cargo (Renegade Europe) для BRP Ski-Doo MX Z 500/600/600 HO/700/800 - 2003
-
№АртикулНазвание
-
1861778700 Hitch ass'y. Includes 1 - 10. MX Z 600. MX Z 800.Hitch ass'y. Includes 1 - 10. MX Z 600. MX Z 800.
-
2517199300 Hitch. MX Z 600. MX Z 800.Hitch. MX Z 600. MX Z 800.
-
3517152700 Hitch protector. MX Z 600. MX Z 800.Hitch protector. MX Z 600. MX Z 800.
-
4517152800 Spring. MX Z 600. MX Z 800.Spring. MX Z 600. MX Z 800.
-
5114045200 Hair pin. MX Z 600. MX Z 800.Hair pin. MX Z 600. MX Z 800.
-
6207063044 Hex screw M6 x 30. MX Z 600. MX Z 800.Hex screw M6 x 30. MX Z 600. MX Z 800.
-
7232561414 Hex elastic nut M6. MX Z 600. MX Z 800.Hex elastic nut M6. MX Z 600. MX Z 800.
-
8390409400 Pop rivet 5/32''. MX Z 600. MX Z 800.Pop rivet 5/32''. MX Z 600. MX Z 800.
-
9732804000 Spring pin M3 x 24. MX Z 600. MX Z 800.Spring pin M3 x 24. MX Z 600. MX Z 800.
-
10516001243 Hitch security label. MX Z 600. MX Z 800.Hitch security label. MX Z 600. MX Z 800.
-
11517191700 Spacer. MX Z 600. MX Z 800.Spacer. MX Z 600. MX Z 800.
-
12207065044 Hex screw M6 x 50. MX Z 600. MX Z 800.Hex screw M6 x 50. MX Z 600. MX Z 800.
-
13511000213 Fixation. MX Z 600. MX Z 800.Fixation. MX Z 600. MX Z 800.
-
14511000022 Reinforcement. MX Z 600. MX Z 800.Reinforcement. MX Z 600. MX Z 800.
-
15207161844 Hex screw M6 x 18. MX Z 600. MX Z 800.Hex screw M6 x 18. MX Z 600. MX Z 800.
-
16233261414 Hex flanged elastic nut M6. MX Z 600. MX Z 800.Hex flanged elastic nut M6. MX Z 600. MX Z 800.
-
17224061201 Flat washer. MX Z 600. MX Z 800.Flat washer. MX Z 600. MX Z 800.
-
18207762044 Carriage bolt M6 x 20. MX Z 600. MX Z 800.Carriage bolt M6 x 20. MX Z 600. MX Z 800.
-
19516001709 Hitch security label (Europe). MX Z 600. MX Z 800.Hitch security label (Europe). MX Z 600. MX Z 800.
