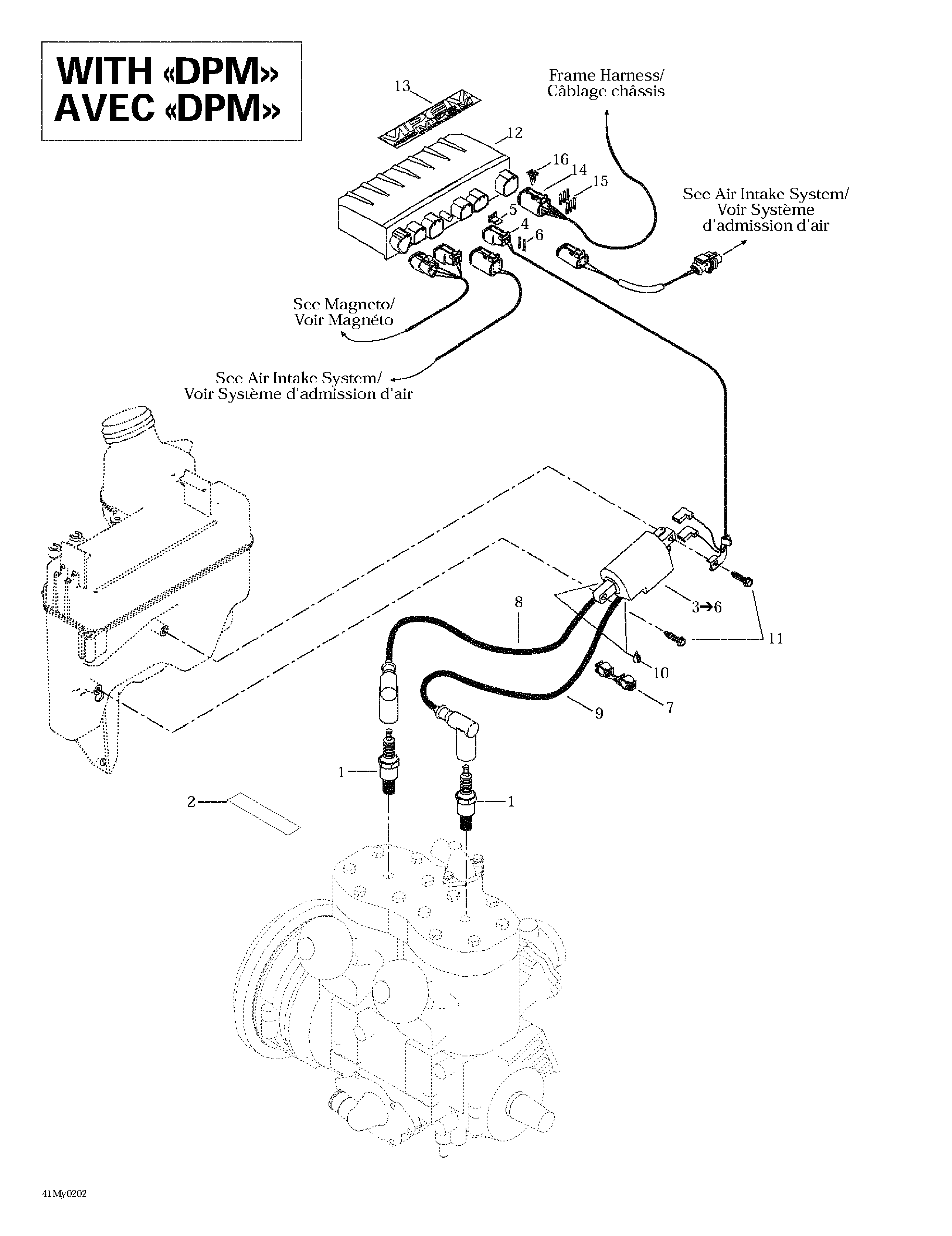

03- Ignition (with DPM) для BRP Ski-Doo MX Z 500/600/700/800 - 2002
-
№АртикулНазвание
-
1512059552 Spark Plug NGK BR9ECS 0.5mm. MX Z 600. MX Z 700. MX Z 800.Spark Plug NGK BR9ECS 0.5mm. MX Z 600. MX Z 700. MX Z 800.
-
2516000986 Spark plug Decal. MX Z 600. MX Z 700. MX Z 800.Spark plug Decal. MX Z 600. MX Z 700. MX Z 800.
-
3512059512 Ignition Coil. Includes 3 - 6. MX Z 600. MX Z 700. MX Z 800.Ignition Coil. Includes 3 - 6. MX Z 600. MX Z 700. MX Z 800.
-
4409207300 Female Terminal Housing (2 circuits). MX Z 600. MX Z 700. MX Z 800.Female Terminal Housing (2 circuits). MX Z 600. MX Z 700. MX Z 800.
-
5409207100 Female Lock (2 circuits). MX Z 600. MX Z 700. MX Z 800.Female Lock (2 circuits). MX Z 600. MX Z 700. MX Z 800.
-
6278000632 Female Terminal. MX Z 600. MX Z 700. MX Z 800.Female Terminal. MX Z 600. MX Z 700. MX Z 800.
-
7410914600 Plastic Clip. MX Z 600. MX Z 700. MX Z 800.Plastic Clip. MX Z 600. MX Z 700. MX Z 800.
-
8512059485 Cable Ass'y (380 mm). MX Z 600. MX Z 700. MX Z 800.Cable Ass'y (380 mm). MX Z 600. MX Z 700. MX Z 800.
-
9512059486 Cable Ass'y (455 mm). MX Z 600. MX Z 700. MX Z 800.Cable Ass'y (455 mm). MX Z 600. MX Z 700. MX Z 800.
-
10293550004 Dielectric Grease, 150 g. MX Z 600. MX Z 700. MX Z 800.Dielectric Grease, 150 g. MX Z 600. MX Z 700. MX Z 800.
-
11250000005 Hex. Tapping Screw. MX Z 600. MX Z 700. MX Z 800.Hex. Tapping Screw. MX Z 600. MX Z 700. MX Z 800.
-
12512059454 Calibration Module. MX Z 600.Calibration Module. MX Z 600.
-
512059455 Calibration Module (RER). MX Z 600.Calibration Module (RER). MX Z 600.
-
512059593 Calibration Module (X). MX Z 600.Calibration Module (X). MX Z 600.
-
512059594 Calibration Module (RER) (X). MX Z 600.Calibration Module (RER) (X). MX Z 600.
-
512059460 Calibration Module (RER). MX Z 700.Calibration Module (RER). MX Z 700.
-
512059595 Calibration Module (X). MX Z 700.Calibration Module (X). MX Z 700.
-
512059596 Calibration Module (RER) (X). MX Z 700.Calibration Module (RER) (X). MX Z 700.
-
512059473 Calibration Module. MX Z 800.Calibration Module. MX Z 800.
-
512059466 Calibration Module (RER). MX Z 800.Calibration Module (RER). MX Z 800.
-
512059597 Calibration Module (X). MX Z 800.Calibration Module (X). MX Z 800.
-
512059598 Calibration Module (RER) (X). MX Z 800.Calibration Module (RER) (X). MX Z 800.
-
13516000245 Electrical Box Decal. MX Z 600. MX Z 700. MX Z 800.Electrical Box Decal. MX Z 600. MX Z 700. MX Z 800.
-
14515175673 Female Terminal Housing (6 circuits). MX Z 600. MX Z 700. MX Z 800.Female Terminal Housing (6 circuits). MX Z 600. MX Z 700. MX Z 800.
-
15278000632 Female Terminal. MX Z 600. MX Z 700. MX Z 800.Female Terminal. MX Z 600. MX Z 700. MX Z 800.
-
16515175705 Female Lock (6 circuits). MX Z 600. MX Z 700. MX Z 800.Female Lock (6 circuits). MX Z 600. MX Z 700. MX Z 800.
