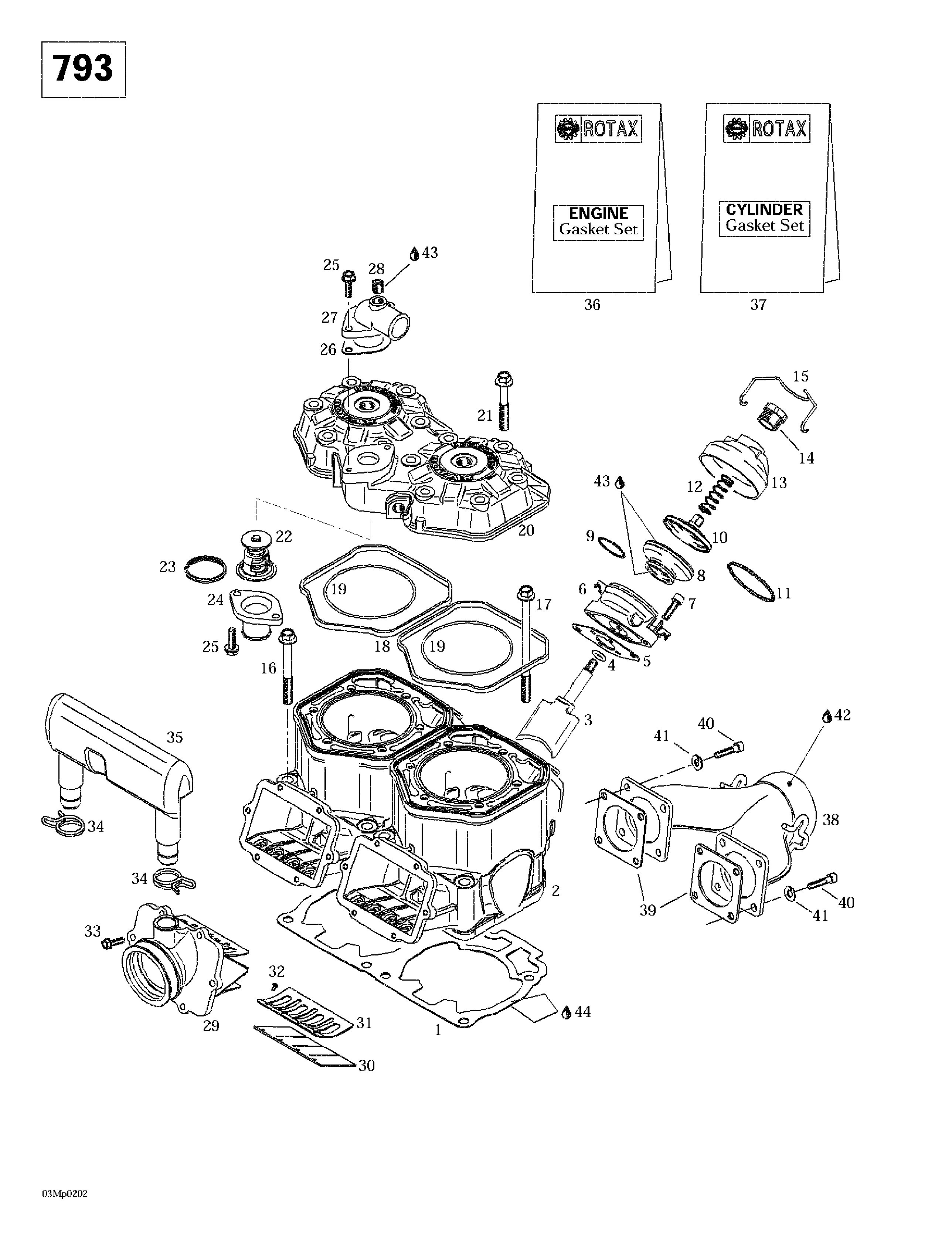

01- Cylinder, Exhaust Manifold, Reed Valve (793) для BRP Ski-Doo MX Z 500/600/700/800 - 2002

  • №
    Артикул
    Название
  • 1
    420931839 Gasket 0.8 mm. MX Z 800.
    Gasket 0.8 mm. MX Z 800.
  • 420931964 Gasket 0.7 mm. MX Z 800.
    Gasket 0.7 mm. MX Z 800.
  • 420931837 Gasket 0.6 mm. MX Z 800.
    Gasket 0.6 mm. MX Z 800.
  • 420931838 Gasket 0.5 mm. MX Z 800.
    Gasket 0.5 mm. MX Z 800.
  • 2
    420923811 Nicasil Cylinder. MX Z 800.
    Nicasil Cylinder. MX Z 800.
  • 3
    420854465 Exhaust Valve. MX Z 800.
    Exhaust Valve. MX Z 800.
  • 4
    420430110 O-Ring. MX Z 800.
    O-Ring. MX Z 800.
  • 5
    420931542 Gasket. MX Z 800.
    Gasket. MX Z 800.
  • 6
    420854450 Valve Housing. MX Z 800.
    Valve Housing. MX Z 800.
  • 7
    205062544 Socket Head Screw M6 x 25. MX Z 800.
    Socket Head Screw M6 x 25. MX Z 800.
  • 8
    420260729 Bellows. MX Z 800.
    Bellows. MX Z 800.
  • 9
    420838253 Spring Clamp. MX Z 800.
    Spring Clamp. MX Z 800.
  • 10
    420854449 Exhaust Valve. MX Z 800.
    Exhaust Valve. MX Z 800.
  • 11
    290239048 Hose Spring. MX Z 800.
    Hose Spring. MX Z 800.
  • 12
    420239941 Spring. MX Z 800.
    Spring. MX Z 800.
  • 13
    290911555 Valve Cover. MX Z 800.
    Valve Cover. MX Z 800.
  • 14
    420241221 Adjuster Screw. MX Z 800.
    Adjuster Screw. MX Z 800.
  • 15
    290838083 Spring Clip. MX Z 800.
    Spring Clip. MX Z 800.
  • 16
    420640524 Hex. Collar Screw M10 x 80. MX Z 800.
    Hex. Collar Screw M10 x 80. MX Z 800.
  • 17
    420640534 Hex. Collar Screw M10 x 120. MX Z 800.
    Hex. Collar Screw M10 x 120. MX Z 800.
  • 18
    420931590 Rubber Ring. MX Z 800.
    Rubber Ring. MX Z 800.
  • 19
    290931410 O-Ring. MX Z 800.
    O-Ring. MX Z 800.
  • 20
    420923822 Cylinder Head (Silver). MX Z 800.
    Cylinder Head (Silver). MX Z 800.
  • 21
    420941621 Hex. Collar Screw M8 x 56.5. MX Z 800.
    Hex. Collar Screw M8 x 56.5. MX Z 800.
  • 22
    420922516 Thermostat (42 Deg.). MX Z 800.
    Thermostat (42 Deg.). MX Z 800.
  • 23
    420931270 Sealing Ring. MX Z 800.
    Sealing Ring. MX Z 800.
  • 24
    420922025 Outlet Socket. MX Z 800.
    Outlet Socket. MX Z 800.
  • 25
    420941250 Screw M6 x 20. MX Z 800.
    Screw M6 x 20. MX Z 800.
  • 26
    420850338 Gasket. MX Z 800.
    Gasket. MX Z 800.
  • 27
    420922062 Bent Outlet Socket. MX Z 800.
    Bent Outlet Socket. MX Z 800.
  • 28
    420240480 Plug Screw 1/8-27 NPT. MX Z 800.
    Plug Screw 1/8-27 NPT. MX Z 800.
  • 29
    420867873 Intake Socket Ass'y. Includes 29 - 32. MX Z 800.
    Intake Socket Ass'y. Includes 29 - 32. MX Z 800.
  • 30
    420924680 Reed Pedal. MX Z 800.
    Reed Pedal. MX Z 800.
  • 31
    420924695 Reed Pedal Stop. MX Z 800.
    Reed Pedal Stop. MX Z 800.
  • 32
    420941215 Screw M3 x 5. MX Z 800.
    Screw M3 x 5. MX Z 800.
  • 33
    420941925 Screw M5 x 16. MX Z 800.
    Screw M5 x 16. MX Z 800.
  • 34
    420851440 Clamp. MX Z 800.
    Clamp. MX Z 800.
  • 35
    420867817 Intake Resonator. MX Z 800.
    Intake Resonator. MX Z 800.
  • 36
    420888740 Engine Gasket Set. MX Z 800.
    Engine Gasket Set. MX Z 800.
  • 37
    420888745 Cylinder Gasket Set. MX Z 800.
    Cylinder Gasket Set. MX Z 800.
  • 38
    420973710 Exhaust Manifold. MX Z 800.
    Exhaust Manifold. MX Z 800.
  • 39
    420931850 Gasket. MX Z 800.
    Gasket. MX Z 800.
  • 40
    205062044 Socket Head Screw M6 x 20. MX Z 800.
    Socket Head Screw M6 x 20. MX Z 800.
  • 41
    234161471 Lock Washer 6 mm. MX Z 800.
    Lock Washer 6 mm. MX Z 800.
  • 42
    293800090 Sealant, Loctite 30542, 80 ml. MX Z 800.
    Sealant, Loctite 30542, 80 ml. MX Z 800.
  • 43
    420297906 Sealing Compound, 30 ml. MX Z 800.
    Sealing Compound, 30 ml. MX Z 800.
  • 44
    293800038 Loctite 518, 50 ml. MX Z 800.
    Loctite 518, 50 ml. MX Z 800.
