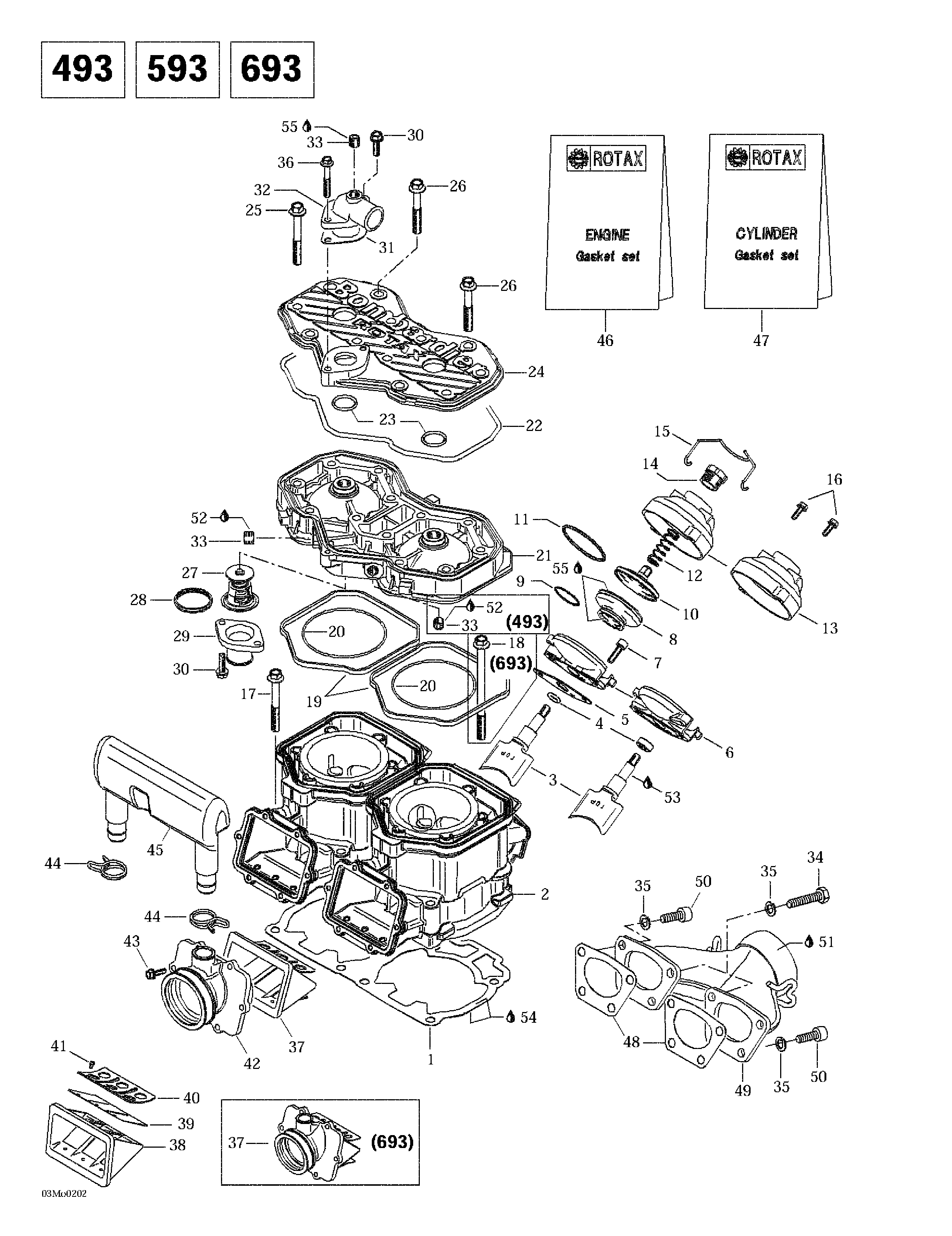

01- Cylinder, Exhaust Manifold, Reed Valve (493, 593, 693) для BRP Ski-Doo MX Z 500/600/700/800 - 2002
-
№АртикулНазвание
-
1420931589 Gasket 0.8 mm. MX Z 500.Gasket 0.8 mm. MX Z 500.
-
420931584 Gasket 0.8 mm. MX Z 600.Gasket 0.8 mm. MX Z 600.
-
420931895 Gasket 0.8 mm. MX Z 700.Gasket 0.8 mm. MX Z 700.
-
420931960 Gasket 0.7 mm. MX Z 500.Gasket 0.7 mm. MX Z 500.
-
420931962 Gasket 0.7 mm. MX Z 600.Gasket 0.7 mm. MX Z 600.
-
420931894 Gasket 0.7 mm. MX Z 700.Gasket 0.7 mm. MX Z 700.
-
420931587 Gasket 0.6 mm. MX Z 500.Gasket 0.6 mm. MX Z 500.
-
420931582 Gasket 0.6 mm. MX Z 600.Gasket 0.6 mm. MX Z 600.
-
420931892 Gasket 0.6 mm. MX Z 700.Gasket 0.6 mm. MX Z 700.
-
420931588 Gasket 0.5 mm. MX Z 500.Gasket 0.5 mm. MX Z 500.
-
420931583 Gasket 0.5 mm. MX Z 600.Gasket 0.5 mm. MX Z 600.
-
420931893 Gasket 0.5 mm. MX Z 700.Gasket 0.5 mm. MX Z 700.
-
420931581 Gasket 0.4 mm. MX Z 600.Gasket 0.4 mm. MX Z 600.
-
2420613605 Cylinder with Sleeve. MX Z 500.Cylinder with Sleeve. MX Z 500.
-
420613625 Cylinder with Sleeve. MX Z 600.Cylinder with Sleeve. MX Z 600.
-
420923695 Cylinder-Nicasil. MX Z 700.Cylinder-Nicasil. MX Z 700.
-
3420854490 Exhaust Valve. MX Z 500.Exhaust Valve. MX Z 500.
-
420854370 Exhaust Valve. MX Z 600.Exhaust Valve. MX Z 600.
-
420854332 Exhaust Valve. MX Z 700.Exhaust Valve. MX Z 700.
-
4420430110 O-Ring. MX Z 600.O-Ring. MX Z 600.
-
420950730 Oil Seal. MX Z 500. MX Z 600. MX Z 700.Oil Seal. MX Z 500. MX Z 600. MX Z 700.
-
5420250239 Gasket. MX Z 500. MX Z 600. MX Z 700.Gasket. MX Z 500. MX Z 600. MX Z 700.
-
6420854267 Valve Housing. MX Z 600.Valve Housing. MX Z 600.
-
420854266 Valve Housing. MX Z 500. MX Z 600. MX Z 700.Valve Housing. MX Z 500. MX Z 600. MX Z 700.
-
7205062044 Socket Head Screw M6 x 20. MX Z 500. MX Z 600. MX Z 700.Socket Head Screw M6 x 20. MX Z 500. MX Z 600. MX Z 700.
-
8290260723 Bellows. MX Z 500. MX Z 600. MX Z 700.Bellows. MX Z 500. MX Z 600. MX Z 700.
-
9420838253 Spring Clamp. MX Z 500. MX Z 600. MX Z 700.Spring Clamp. MX Z 500. MX Z 600. MX Z 700.
-
10420854449 Exhaust Valve. MX Z 500. MX Z 600. MX Z 700.Exhaust Valve. MX Z 500. MX Z 600. MX Z 700.
-
11290239048 Hose Spring. MX Z 500. MX Z 600. MX Z 700.Hose Spring. MX Z 500. MX Z 600. MX Z 700.
-
12420239948 Spring. MX Z 500.Spring. MX Z 500.
-
420239944 Spring. MX Z 600. MX Z 700.Spring. MX Z 600. MX Z 700.
-
13420911552 Valve Cover. MX Z 500. MX Z 600. MX Z 700.Valve Cover. MX Z 500. MX Z 600. MX Z 700.
-
14420241221 Adjuster Screw. MX Z 500. MX Z 600. MX Z 700.Adjuster Screw. MX Z 500. MX Z 600. MX Z 700.
-
15420838083 Spring Clip. MX Z 600.Spring Clip. MX Z 600.
-
16420841555 Tapping Screw M5 x 20. MX Z 500. MX Z 600. MX Z 700.Tapping Screw M5 x 20. MX Z 500. MX Z 600. MX Z 700.
-
17420640524 Hex Collar Screw M10 x 80. MX Z 700.Hex Collar Screw M10 x 80. MX Z 700.
-
420640951 Hex. Screw M8 x 68.5. MX Z 500. MX Z 600.Hex. Screw M8 x 68.5. MX Z 500. MX Z 600.
-
18420640534 Hex Collar Screw M10 x 120. MX Z 700.Hex Collar Screw M10 x 120. MX Z 700.
-
19420931590 Rubber Ring. MX Z 500. MX Z 600. MX Z 700.Rubber Ring. MX Z 500. MX Z 600. MX Z 700.
-
20420831792 O-Ring. MX Z 500.O-Ring. MX Z 500.
-
293300026 O-Ring. MX Z 600.O-Ring. MX Z 600.
-
420931840 O-Ring. MX Z 700.O-Ring. MX Z 700.
-
21420923882 Cylinder Head (Silver). MX Z 500.Cylinder Head (Silver). MX Z 500.
-
420923452 Cylinder Head (Silver). MX Z 600.Cylinder Head (Silver). MX Z 600.
-
420923457 Cylinder Head (Silver). MX Z 700.Cylinder Head (Silver). MX Z 700.
-
22290950320 O-Ring. MX Z 500. MX Z 600. MX Z 700.O-Ring. MX Z 500. MX Z 600. MX Z 700.
-
23420430782 O-Ring. MX Z 500. MX Z 600. MX Z 700.O-Ring. MX Z 500. MX Z 600. MX Z 700.
-
24420923460 Cylinder Head Cover (Silver). MX Z 500. MX Z 600. MX Z 700.Cylinder Head Cover (Silver). MX Z 500. MX Z 600. MX Z 700.
-
25420841306 Hex. Collar Screw M8 x 65. MX Z 500. MX Z 600. MX Z 700.Hex. Collar Screw M8 x 65. MX Z 500. MX Z 600. MX Z 700.
-
26420941621 Hex. Collar Screw M8 x 56.5. MX Z 500. MX Z 600. MX Z 700.Hex. Collar Screw M8 x 56.5. MX Z 500. MX Z 600. MX Z 700.
-
27420922515 Thermostat (42 Deg.). MX Z 500. MX Z 600. MX Z 700.Thermostat (42 Deg.). MX Z 500. MX Z 600. MX Z 700.
-
28420931270 Sealing Ring. MX Z 500. MX Z 600. MX Z 700.Sealing Ring. MX Z 500. MX Z 600. MX Z 700.
-
29420922025 Bent Outlet Socket. MX Z 500. MX Z 600. MX Z 700.Bent Outlet Socket. MX Z 500. MX Z 600. MX Z 700.
-
30420941250 Screw M6 x 20. MX Z 500. MX Z 600. MX Z 700.Screw M6 x 20. MX Z 500. MX Z 600. MX Z 700.
-
31420850338 Gasket. MX Z 500. MX Z 600. MX Z 700.Gasket. MX Z 500. MX Z 600. MX Z 700.
-
32420922062 Bent Outlet Socket. MX Z 500. MX Z 600. MX Z 700.Bent Outlet Socket. MX Z 500. MX Z 600. MX Z 700.
-
33420240480 Plug Screw 1/8-27 NPT. MX Z 500. MX Z 600. MX Z 700.Plug Screw 1/8-27 NPT. MX Z 500. MX Z 600. MX Z 700.
-
34207182044 Hex. Screw M8 x 20. MX Z 500. MX Z 600.Hex. Screw M8 x 20. MX Z 500. MX Z 600.
-
35234181401 Lock Washer 8 mm. MX Z 500. MX Z 600.Lock Washer 8 mm. MX Z 500. MX Z 600.
-
234161471 Lock Washer 6 mm. MX Z 700.Lock Washer 6 mm. MX Z 700.
-
36420941451 Hex. Collar Screw M6 x 40. MX Z 500. MX Z 600. MX Z 700.Hex. Collar Screw M6 x 40. MX Z 500. MX Z 600. MX Z 700.
-
37420924519 Reed Valve Ass'y. Includes 37 - 41. MX Z 500. MX Z 600.Reed Valve Ass'y. Includes 37 - 41. MX Z 500. MX Z 600.
-
37420867873 Carburetor Socket. Includes 37 - 41. MX Z 700.Carburetor Socket. Includes 37 - 41. MX Z 700.
-
39420924680 Pedal Reed. MX Z 700.Pedal Reed. MX Z 700.
-
420924532 Pedal Reed. MX Z 500. MX Z 600.Pedal Reed. MX Z 500. MX Z 600.
-
40420924539 Reed Pedal Stop. MX Z 500. MX Z 600.Reed Pedal Stop. MX Z 500. MX Z 600.
-
420924695 Reed Pedal Stop. MX Z 700.Reed Pedal Stop. MX Z 700.
-
41420941215 Screw M3 x 5. MX Z 500. MX Z 600. MX Z 700.Screw M3 x 5. MX Z 500. MX Z 600. MX Z 700.
-
42420867882 Carburetor Socket. MX Z 500. MX Z 600.Carburetor Socket. MX Z 500. MX Z 600.
-
43420941925 Screw M5 x 16. MX Z 500. MX Z 600. MX Z 700.Screw M5 x 16. MX Z 500. MX Z 600. MX Z 700.
-
44420851440 Clamp. MX Z 500. MX Z 600. MX Z 700.Clamp. MX Z 500. MX Z 600. MX Z 700.
-
45420867817 Intake Resonator. MX Z 500. MX Z 600. MX Z 700.Intake Resonator. MX Z 500. MX Z 600. MX Z 700.
-
46420888721 Engine Gasket Set. MX Z 500.Engine Gasket Set. MX Z 500.
-
420888583 Engine Gasket Set. MX Z 600.Engine Gasket Set. MX Z 600.
-
420888603 Engine Gasket Set. MX Z 700.Engine Gasket Set. MX Z 700.
-
47420888726 Cylinder Gasket Set. MX Z 500.Cylinder Gasket Set. MX Z 500.
-
420888588 Cylinder Gasket Set. MX Z 600.Cylinder Gasket Set. MX Z 600.
-
420888608 Cylinder Gasket Set. MX Z 700.Cylinder Gasket Set. MX Z 700.
-
48420931615 Gasket. MX Z 500.Gasket. MX Z 500.
-
420931610 Gasket. MX Z 600.Gasket. MX Z 600.
-
420850552 Gasket. MX Z 700.Gasket. MX Z 700.
-
49420973650 Exhaust Manifold. MX Z 500.Exhaust Manifold. MX Z 500.
-
420979543 Exhaust Manifold. MX Z 600.Exhaust Manifold. MX Z 600.
-
420973591 Exhaust Manifold. MX Z 700.Exhaust Manifold. MX Z 700.
-
50205082544 Socket Head Screw M8 x 25. MX Z 500. MX Z 600.Socket Head Screw M8 x 25. MX Z 500. MX Z 600.
-
205062044 Socket Head Screw M6 x 25. MX Z 700.Socket Head Screw M6 x 25. MX Z 700.
-
51293800090 Sealant, Loctite 30542, 80 ml. MX Z 500. MX Z 600. MX Z 700.Sealant, Loctite 30542, 80 ml. MX Z 500. MX Z 600. MX Z 700.
-
52293800060 Loctite 243, 10 ml. MX Z 500. MX Z 600. MX Z 700.Loctite 243, 10 ml. MX Z 500. MX Z 600. MX Z 700.
-
53711297433 Molykote G-n Paste, Dow Corning, 88162-74, 50g. MX Z 500. MX Z 600. MX Z 700.Molykote G-n Paste, Dow Corning, 88162-74, 50g. MX Z 500. MX Z 600. MX Z 700.
-
54293800038 Loctite 518, 50 ml. MX Z 500. MX Z 600. MX Z 700.Loctite 518, 50 ml. MX Z 500. MX Z 600. MX Z 700.
-
55420297906 Sealing Compound, 30 ml. MX Z 500. MX Z 600. MX Z 700.Sealing Compound, 30 ml. MX Z 500. MX Z 600. MX Z 700.
