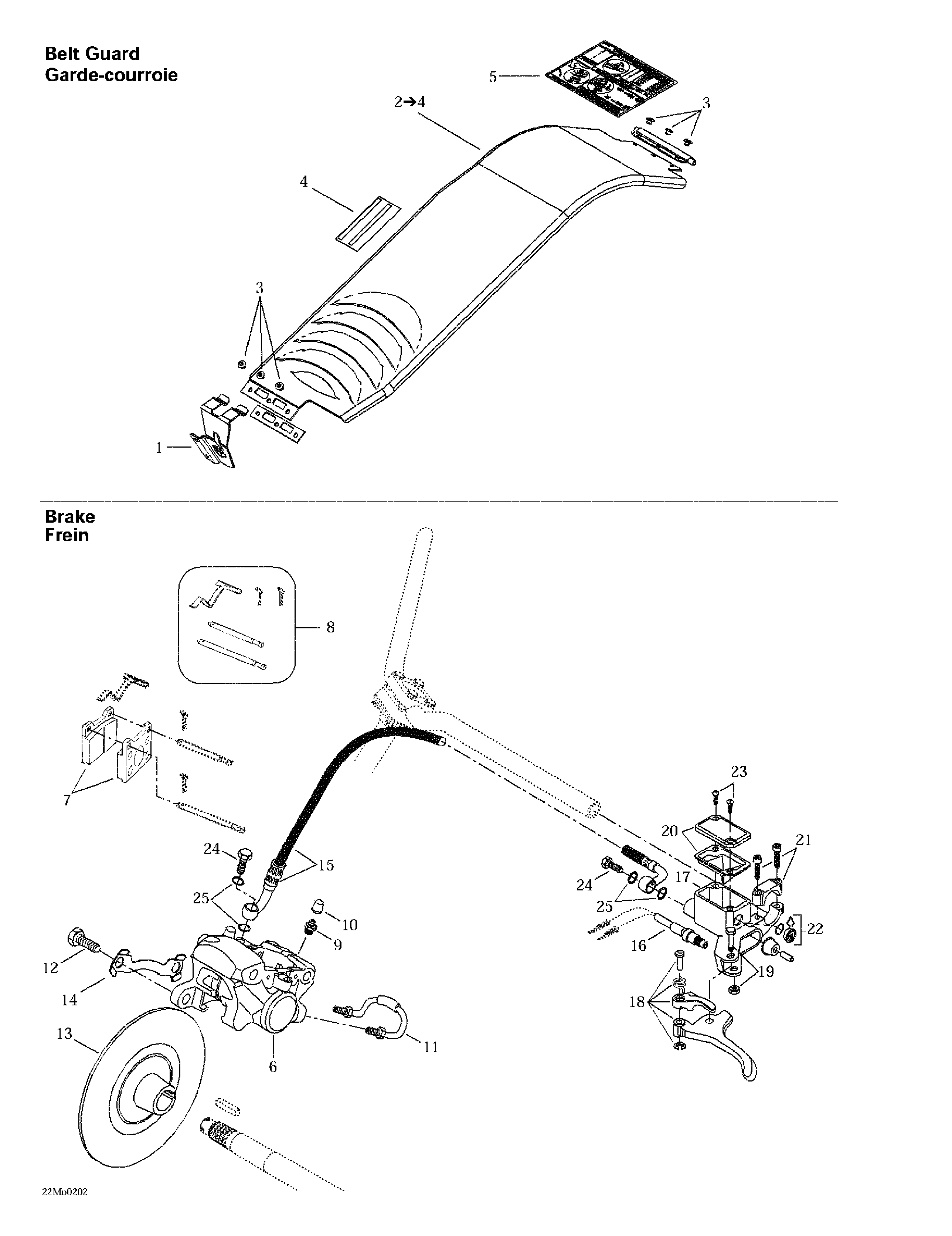

06- Hydraulic Brake And Belt Guard для BRP Ski-Doo MX Z 500/600/700/800 - 2002
-
№АртикулНазвание
-
1417300001 BracketBracket
-
2417300173 Belt Guard Ass'y. Includes 2 - 4.Belt Guard Ass'y. Includes 2 - 4.
-
3390402200 Pop RivetPop Rivet
-
4516001190 Security LabelSecurity Label
-
5516001285 Calibration Label (SPORT)Calibration Label (SPORT)
-
516001284 Calibration Label (TRAIL)Calibration Label (TRAIL)
-
516000709 Calibration Label (RENEGADE). MX Z 600. MX Z 700. MX Z 800.Calibration Label (RENEGADE). MX Z 600. MX Z 700. MX Z 800.
-
516001285 Calibration Label (ADRENALINE). MX Z 600. MX Z 700. MX Z 800.Calibration Label (ADRENALINE). MX Z 600. MX Z 700. MX Z 800.
-
516001283 Calibration Label (X). MX Z 600. MX Z 700. MX Z 800.Calibration Label (X). MX Z 600. MX Z 700. MX Z 800.
-
6415034500 Caliper. Includes 6 - 11. MX Z 500.Caliper. Includes 6 - 11. MX Z 500.
-
507032321 Caliper. MX Z 600. MX Z 700. MX Z 800.Caliper. MX Z 600. MX Z 700. MX Z 800.
-
507032204 Caliper (X). MX Z 600. MX Z 700. MX Z 800.Caliper (X). MX Z 600. MX Z 700. MX Z 800.
-
7415053600 Brake Lining Kit. MX Z 500.Brake Lining Kit. MX Z 500.
-
415084600 Brake Lining Kit. MX Z 600. MX Z 700. MX Z 800.Brake Lining Kit. MX Z 600. MX Z 700. MX Z 800.
-
8414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
9414989800 Screw-BleederScrew-Bleeder
-
10414989700 BootBoot
-
11414989900 Rigid TubingRigid Tubing
-
12207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
13507032203 Brake Disk. MX Z 500.Brake Disk. MX Z 500.
-
507031300 Brake Disk. MX Z 600. MX Z 700. MX Z 800.Brake Disk. MX Z 600. MX Z 700. MX Z 800.
-
507032301 Brake Disk (X). MX Z 600. MX Z 700. MX Z 800.Brake Disk (X). MX Z 600. MX Z 700. MX Z 800.
-
14507032316 Locking TabLocking Tab
-
15507032237 HoseHose
-
507032329 Hose (X). MX Z 600. MX Z 700. MX Z 800.Hose (X). MX Z 600. MX Z 700. MX Z 800.
-
16507032334 MicroswitchMicroswitch
-
17507032293 Master Cylinder. Includes 17 - 23.Master Cylinder. Includes 17 - 23.
-
18507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
19415030000 Pin Ass'yPin Ass'y
-
20415029900 CapCap
-
21415029800 Clamp Ass'yClamp Ass'y
-
22414990600 WindowWindow
-
23216141260 ScrewScrew
-
24414920500 BoltBolt
-
25414920600 WasherWasher
