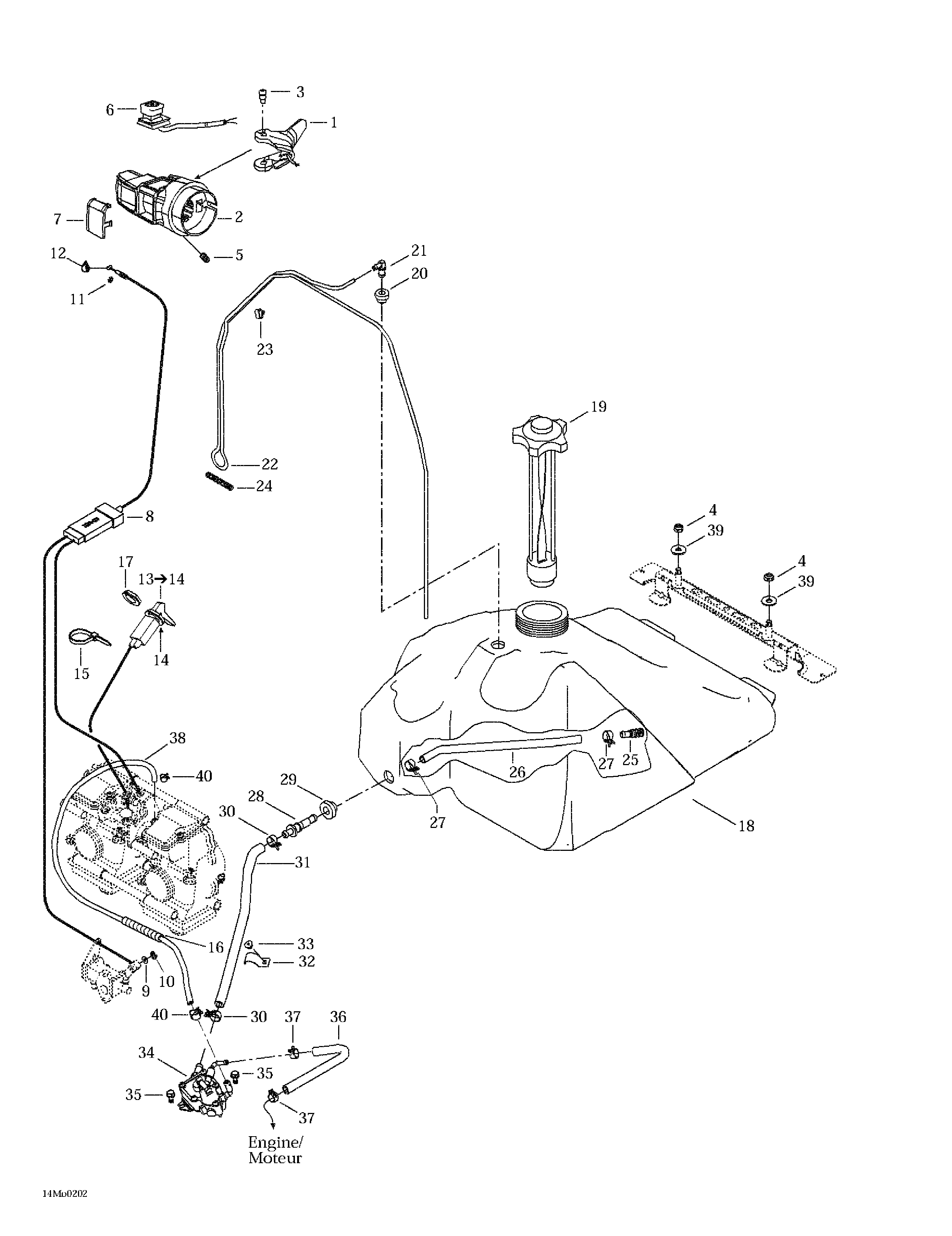

02- Fuel System для BRP Ski-Doo MX Z 500/600/700/800 - 2002
-
№АртикулНазвание
-
1512059107 Handle Ass'y 28 mmHandle Ass'y 28 mm
-
512059481 Handle Ass'y 28 mm. (X)Handle Ass'y 28 mm. (X)
-
2512059109 Throttle Handle HousingThrottle Handle Housing
-
3732601143 Shouldered ScrewShouldered Screw
-
4232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
5414440800 Set Screw M8 x 10Set Screw M8 x 10
-
6515175410 Kill SwitchKill Switch
-
512059482 Kill Switch. (X)Kill Switch. (X)
-
7572100901 Switch CoverSwitch Cover
-
8512059373 Throttle CableThrottle Cable
-
9414753300 WasherWasher
-
10414753500 CirclipCirclip
-
11414274500 CirclipCirclip
-
12293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
13512059110 Choke Cable. Includes 13 - 14.Choke Cable. Includes 13 - 14.
-
14394103300 Lock WasherLock Washer
-
15293750009 Tie Rap 160 mmTie Rap 160 mm
-
16415079900 Tubing 10 mm I. DTubing 10 mm I. D
-
17512059094 Plastic NutPlastic Nut
-
18513032987 Fuel TankFuel Tank
-
19513032901 Fuel Tank CapFuel Tank Cap
-
20513032908 GrommetGrommet
-
21414814100 Male ConnectorMale Connector
-
22415080100 Primer LinePrimer Line
-
23513032923 Tube ClampTube Clamp
-
24414818200 SpringSpring
-
25414872100 Fuel FilterFuel Filter
-
26415005700 HoseHose
-
27513033010 ClampClamp
-
28414872700 Male ConnectorMale Connector
-
29570273900 GrommetGrommet
-
30513032979 Spring ClampSpring Clamp
-
31513032903 Formed HoseFormed Hose
-
32415018200 ClipClip
-
33390406500 Pop Rivet 3/16Pop Rivet 3/16
-
34403901806 Fuel PumpFuel Pump
-
35210361280 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
36415079800 Rubber HoseRubber Hose
-
37414415200 Spring ClampSpring Clamp
-
38513032986 Formed TubeFormed Tube
-
39234082410 Flat Washer 8 mmFlat Washer 8 mm
-
40414420700 Spring ClampSpring Clamp
