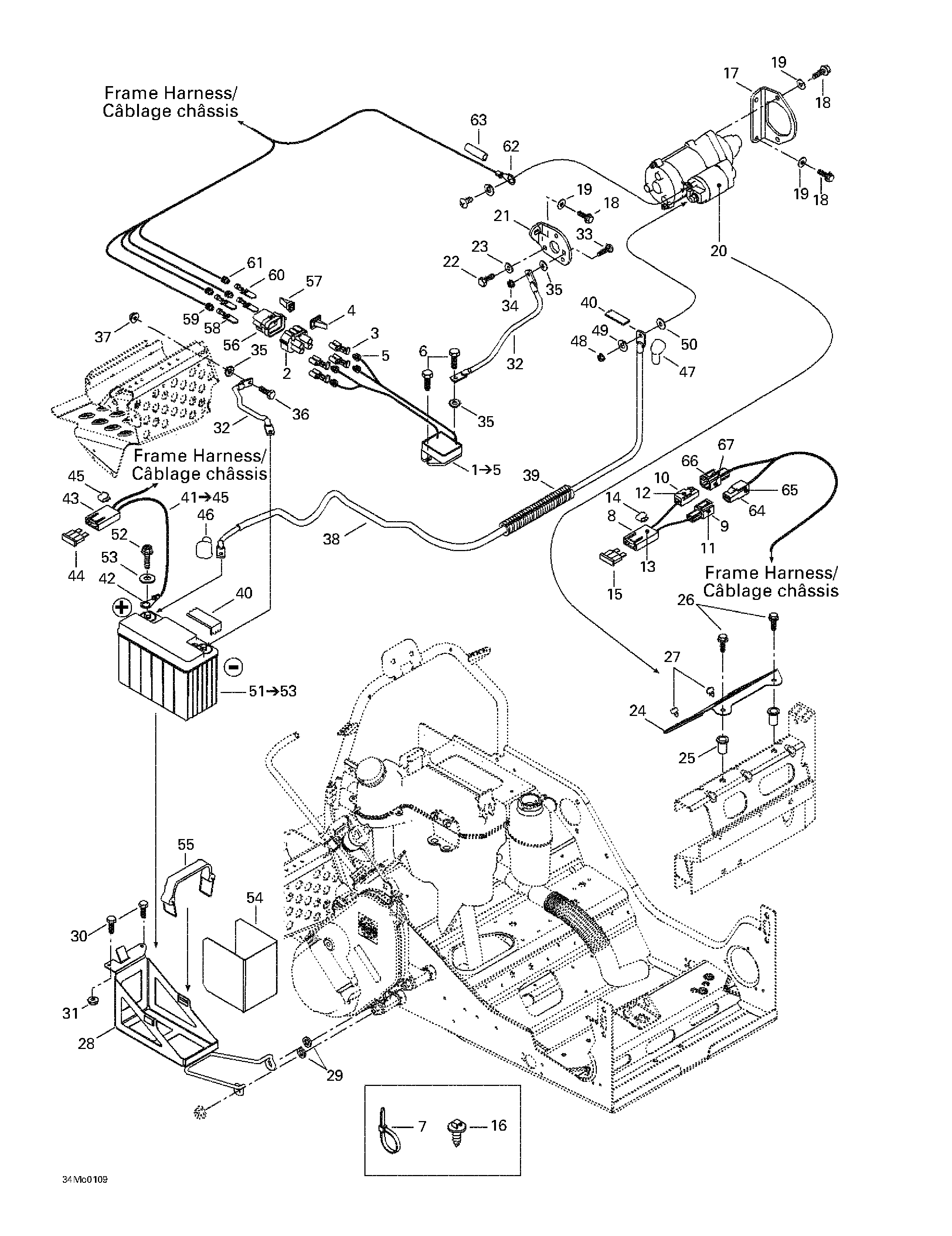

10- Battery And Starter для BRP Ski-Doo Formula Deluxe 500/600/700 - 2001
-
№АртикулНазвание
-
1515175217 Voltage Regulator. Includes 1 - 5.Voltage Regulator. Includes 1 - 5.
-
2409208000 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
3278000994 Female TerminalFemale Terminal
-
4409013400 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
5278000996 Wire Seal (Orange)Wire Seal (Orange)
-
6210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
7293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
414115200 Tie Rap 180 mmTie Rap 180 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
515175220 Tie RapTie Rap
-
8409004000 Fuse HolderFuse Holder
-
9515175509 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
10515175510 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
11515175273 Male TerminalMale Terminal
-
12515175282 Female TerminalFemale Terminal
-
13409011600 Female TerminalFemale Terminal
-
14409014200 Backward ClipBackward Clip
-
15278001143 Fuse (20 Amperes)Fuse (20 Amperes)
-
16293730018 Dart MountDart Mount
-
17515175142 Starter Bracket (PTO)Starter Bracket (PTO)
-
18207582044 Hex. Flanged Screw M8 x 20 (Scotch Grip)Hex. Flanged Screw M8 x 20 (Scotch Grip)
-
19250200008 Flat Washer 8 mmFlat Washer 8 mm
-
20515175565 StarterStarter
-
21515175441 Starter Bracket (MAG)Starter Bracket (MAG)
-
22207361644 Hex. Screw M6 x 16 (Scotch Grip)Hex. Screw M6 x 16 (Scotch Grip)
-
23234061410 Flat Washer 6 mmFlat Washer 6 mm
-
24515175536 ProtectorProtector
-
25415107300 Insert M6Insert M6
-
26207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
27293830005 Rubber PlugRubber Plug
-
28515175472 Battery Support. Formula Deluxe 500. Formula Deluxe 600.Battery Support. Formula Deluxe 500. Formula Deluxe 600.
-
515175556 Battery Support. Formula Deluxe 700.Battery Support. Formula Deluxe 700.
-
29503175800 Flat WasherFlat Washer
-
30207151244 Hex. Screw M5 x 12Hex. Screw M5 x 12
-
31233251414 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
32515175483 Ground WireGround Wire
-
33207762044 Carriage Bolt M6 x 20Carriage Bolt M6 x 20
-
34233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
35250200000 Lock Washer SerratedLock Washer Serrated
-
36207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
37233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38515175482 Battery WireBattery Wire
-
39409901700 TubingTubing
-
40293740005 Vinyl Tape 3/4''Vinyl Tape 3/4''
-
41515175489 Battery Fuse Wire. Includes 41 - 45.Battery Fuse Wire. Includes 41 - 45.
-
42278000992 Ring TerminalRing Terminal
-
43409004000 Fuse HolderFuse Holder
-
44410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
45409014200 Backward ClipBackward Clip
-
46570151000 Protection CapProtection Cap
-
47278000020 Protector CapProtector Cap
-
48232081414 Hex. Nut M8Hex. Nut M8
-
49234181401 Lock Washer 8 mmLock Washer 8 mm
-
50234081410 Flat Washer 8 mmFlat Washer 8 mm
-
51515175481 Battery (13 Amperes). Includes 51 - 53. Formula Deluxe 500. Formula Deluxe 600.Battery (13 Amperes). Includes 51 - 53. Formula Deluxe 500. Formula Deluxe 600.
-
515175560 Battery (16 Amperes). Formula Deluxe 700.Battery (16 Amperes). Formula Deluxe 700.
-
52207161260 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
53234061410 Flat Washer 6 mmFlat Washer 6 mm
-
54515175363 Deflector. Formula Deluxe 500. Formula Deluxe 600.Deflector. Formula Deluxe 500. Formula Deluxe 600.
-
515175561 Deflector. Formula Deluxe 700.Deflector. Formula Deluxe 700.
-
55515175475 Battery StrapBattery Strap
-
56409207700 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
57409013100 Male Lock (4 Circuits)Male Lock (4 Circuits)
-
58409010900 Male TerminalMale Terminal
-
59278001223 Wire SealWire Seal
-
60409013000 Male TerminalMale Terminal
-
61278000996 Wire Seal (Orange)Wire Seal (Orange)
-
62515175504 Ring TerminalRing Terminal
-
63415079200 HoseHose
-
64515175509 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
65515175273 Male TerminalMale Terminal
-
66515175510 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
67515175282 Female TerminalFemale Terminal
